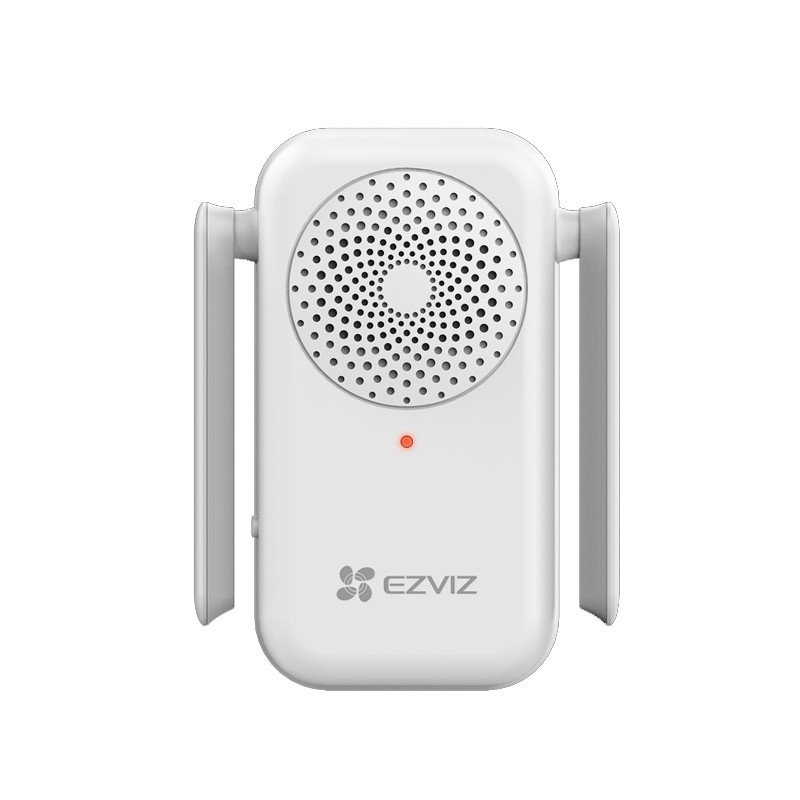

Ezviz Smart Chime - Video Doorbell Companion

Product Highlights
  • Works with EZVIZ Doorbells*
  • Built-in Speaker
  • Multiple Notification Ringtones
  • Dual Antennas, Wi-Fi 2.4 GHz
  • 100V - 240V AC
  • Model#: EZCHIMEB0

    Sku: IT3791

    MSRP: $19.99

    In Stock

    Your Price: $17.16

    Hear the classic tone throughout your home.

    As a complement to the EZVIZ Doorbell, this Chime keeps you notified at home when you don’t have the smartphone at hand.

    Get immediate awareness of your visitors.

    Covering a three-meter radius with up to 72 dB of volume, the Chime gets the job done beautifully. As soon as someone presses your doorbell, you will hear one of the several pleasant tones while also receiving an incoming video call request on the phone.

    20 pleasant ringtones to choose from.

    Choose your favorite ringtone to suit your unique aesthetic. Or, mute the chime when you don’t want to be disturbed.

    Dual antennas for real-time response.

    The Chime has two external antennas, so you don’t have to worry about the network stability of your front-door security system.


    Model Parameters
    Model CS-CMT-CHIME
    Protocol EZVIZ cloud proprietary protocol
    Interface Protocol EZVIZ cloud proprietary protocol
    Storage No
    Wired Network Does not support
    Power Supply Interface EU/US/UK Standard Plug
    Wi-Fi Standard IEEE802.11b / g / n
    Frequency Range 2.4 GHz ~ 2.4835 GHz
    Channel Bandwidth Supports 20 MHz
    Security 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
    Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps
    Antennas Dual External Antennas
    Operating Conditions Temperature: -10°C to 40°C (14°F to 104 °F ), Humidity: 95% or less (non-condensing)
    Power Supply 100V - 240V AC
    Power Consumption Max 0.6W
    Dimension 100 × 55 × 35 mm (3.94 × 2.17 × 1.38 inch)
    Weight 120 g (4.23 oz)
    In the box:
    In the box: Chime; Quick Start Guide
    Certifications: UL / FCC / CE / WEEE / REACH / RoHS


    PDF File Ezviz Smart Chime - Video Doorbell Companion
