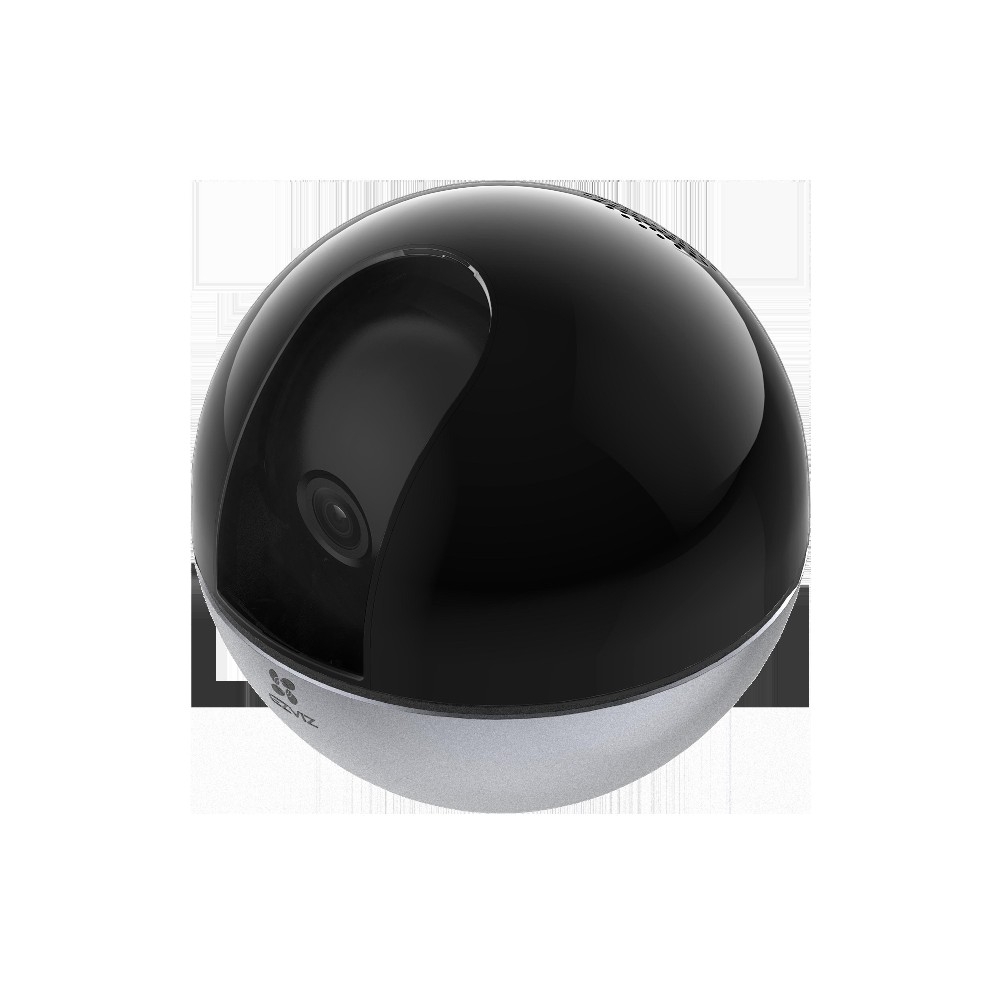

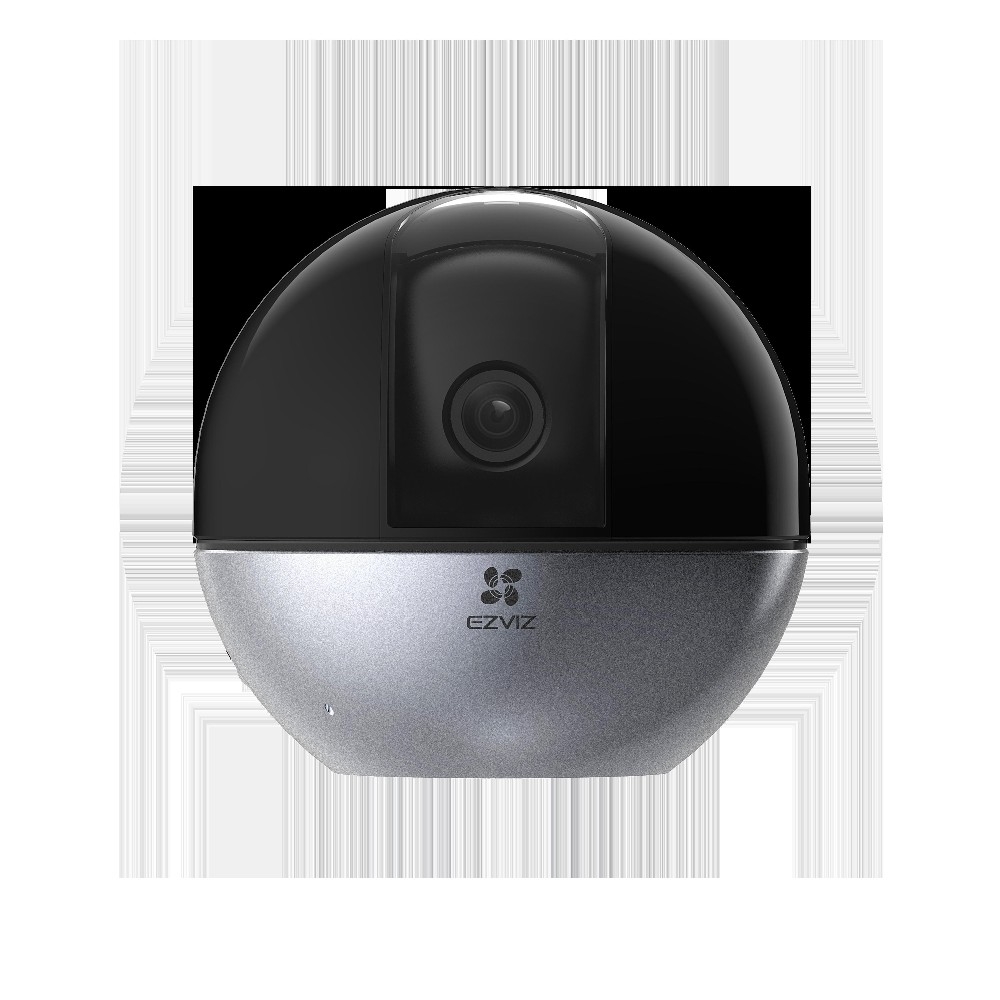

EZVIZ C6W Pan & Tilt Wi-Fi Camera - Model CS-C6W-A0-3H4WF US version

Product Highlights
  • 2K Resolution
  • Auto-Zoom Tracking
  • Person Detection
  • 360° Panoramic View
  • True-WDR
  • Model#: EZC6W3H4

    Sku: IT3784

    MSRP: $76.99

    In Stock

    Your Price: $71.50


    EZVIZ products have been designed for your entertainment, comunication and security. When you install the EZVIZ APP on your smartphone or tablet, EZVIZ devices will be connected to the cloud via their QR code and will immediately be online. With EZVIZ you can talk to your loved ones, watch your child’s progress when you are away, keep an eye on your home, interact with your four-legged friends and prevent household accidents

    Main Features

    4MP Streaming

    Ai-Human Detection

    Two-way Talk

    Privacy Shutter

    Motorized Pan and Tilt 360° Visual Coverage

    Auto Zoom Tracking

    True Wide Dynamic Range

    Night Vision (Up to 33ft/10m)


    Model Parameters
    Model CS-C6W-A0-3H4WF
    Image Sensor 1/2.7" Progressive Scan CMOS
    Shutter Speed Self-adaptive shutter
    Lens 4mm@ F2.0, view angle: 83° (Horizontal), 57° (Vertical), 104° (Diagonal)
    PT Angle Pan: 340°, Tilt: 75°
    Minimum Illumination 0.5 Lux @ (F2.0, AGC ON), 0 Lux with IR
    Lens Mount M12
    Day & Night IR-cut filter with auto-switching
    DNR 3D DNR
    WDR True-WDR
    BLC Supports
    Night Vision 10m
    Video & Audio
    Max. Resolution 2560 × 1440
    Frame Rate Max: 25fps; Self-Adaptive during network transmission
    Video Compression H.265 / H.264
    Video Bit Rate Ultra-HD; HD; Standard. Adaptive bit rate.
    Audio Bit Rate Self-Adaptive
    Max. Bitrate 4Mbps
    Local Storage MicroSD card slot (Max. 256G)
    Cloud Storage EZVIZ Cloud Storage
    Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
    Frequency Range 2.412 GHz ~ 2.472 GHz
    Channel Bandwidth Supports 20MHz
    Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
    Transmission Rate 11b: 11Mbps, 11g : 54Mbps, 11n: 72Mbps
    Wi-Fi Pairing AP pairing
    Protocol EZVIZ cloud proprietary protocol
    Interface Protocol EZVIZ cloud proprietary protocol
    Wired Network RJ45 × 1 (10M/100M Adaptive Ethernet Port)
    Operating Conditions -10°C ~ 45°C (14°F to 113 °F), Humidity 95% or less (non-condensing)
    Power Supply DC 5V / 2A
    Power Consumption MAX. 8W
    Dimensions 95.8 x 95.8 x 90.6 mm (3.77 x 3.77 x 3.57 inch)
    Packaging Dimensions 126 x 126 x 160 mm (4.96 x 4.96 x 6.30 inch)
    Net Weight 252 g (8.89 oz)
    Weight 513 g (1.13 oz)
    Smart Alarm AI Person Detection
    Customized Alert Area Supports
    Two-Way Talk Supports
    General Function Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
    In the box:
    In the box: C6W Camera ; 3-Meter Power Cable ; Power Adapter ; Drill Template ; Base ; Screw Kit ; Regulatory Information ; Quick Start Guide
    Certifications: CE / WEEE / REACH / RoHS / FCC / UL
