Loco5ac-5-US

Ubiquiti

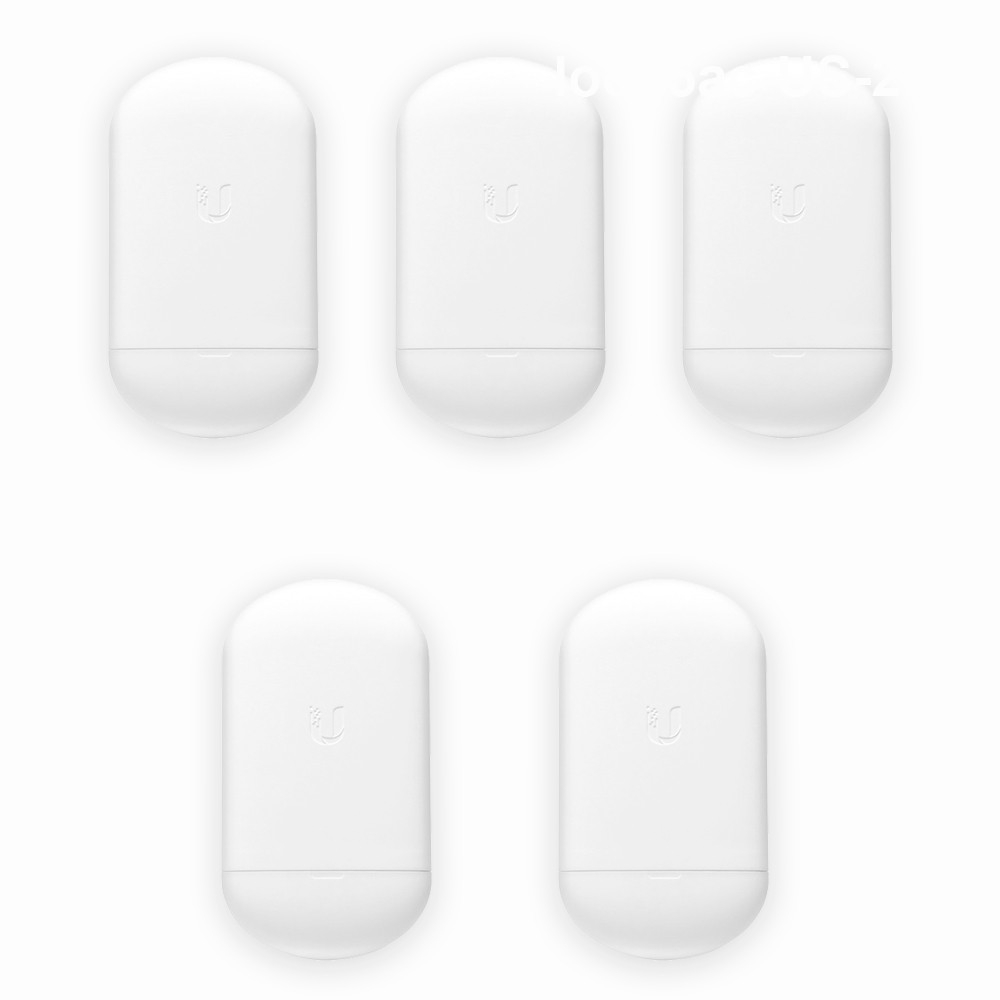

Ubiquiti Networks NanoStation AC loco 5 UNITS 5GHz 802.11ac airMAX CPE Radio 450Mbps Wireless Access Point - Loco5ac - US Version



Product Highlights
  • Ubiquiti NanoStation AC loco 5GHz 802.11ac airMAX CPE Radio 450Mbps Wireless Access Point - Loco5ac
  • The indoor/outdoor NanoStation AC loco are compact, high-performance CPEs featuring airMAX AC technology and a dedicated Wi-Fi radio for management.
  • The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.
  • The NanoStation AC loco provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.
  • Each NanoStation AC loco model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
  • Model#: Loco5ac-5-US

    Sku: IT3774



    MSRP: $299.99

    In Stock

    Your Price: $299.99






    Model: Loco5ac-5-US

                                                 NanoStation AC loco

                                                                    5 GHz airMAX ac CPE

    The indoor/outdoor NanoStation AC loco is compact, high-performance CPEs featuring airMAX AC technology and a dedicated Wi-Fi radio for management.

    The Ubiquiti NanoStation AC loco integrates airMAX Wireless Access Point (MIMO TDMA protocol) technology and dedicated Wi-Fi management to create a more efficient and compact CPE. The low cost, high performance, and small form factor of the NanoStation AC loco makes it extremely versatile and economical to deploy.

    • Sleek Industrial Design

    The NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.



    • Management Wi-Fi Radio

    The NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.



    • Now with airOS 8

    airOS 8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

    Throughput

    • Up to 450+ Mbps Real TCP/IP Throughput

    Operating Frequency (MHz)

    • 5150 - 5250, 5725 - 5850

    Management Radio (MHz)

    • 2412 - 2462

    Power Supply

    • 24V, 0.5A Gigabit PoE Supply*

    Max. Power Consumption

    • 8.5W

    Power Method

    • Passive PoE (Pairs 4, 5+; 7, 8 Return)

    Gain

    • 13 dBi

    Networking Interface

    • 10/100/1000 Mbps Ethernet Port

    Channel Bandwidths

    • 10/20/30/40/50/60/80 MHz

    Processor Specs

    • Atheros MIPS 74Kc, 560 MHz

    Memory

    • 64 MB DDR2

    Cross-pol Isolation

    • 20 dB Minimum

    Max. VSWR

    • 1.8:1

    Beamwidth

    • 45° (H-pol) / 45° (V-pol) / 45° (Elevation)

    Polarization

    • Dual Linear

    Enclosure

    • Outdoor UV Stabilized Plastic

    LEDs

    • (1) Power

    Mounting

    • Pole-Mount (Kit Included)

    Operating Temperature

    • -40 to 70° C (-40 to 158° F)

    Operating Humidity

    • 5 to 95% Non-condensing
