Loco5ac-5-US

Ubiquiti


Ubiquiti Networks NanoStation AC loco 5 UNITS 5GHz 802.11ac airMAX CPE Radio 450Mbps Wireless Access Point - Loco5ac


Model#: Loco5ac-5-US

Sku: IT3774



MSRP: $389.00


Out of stock

Model: Loco5ac-5-US

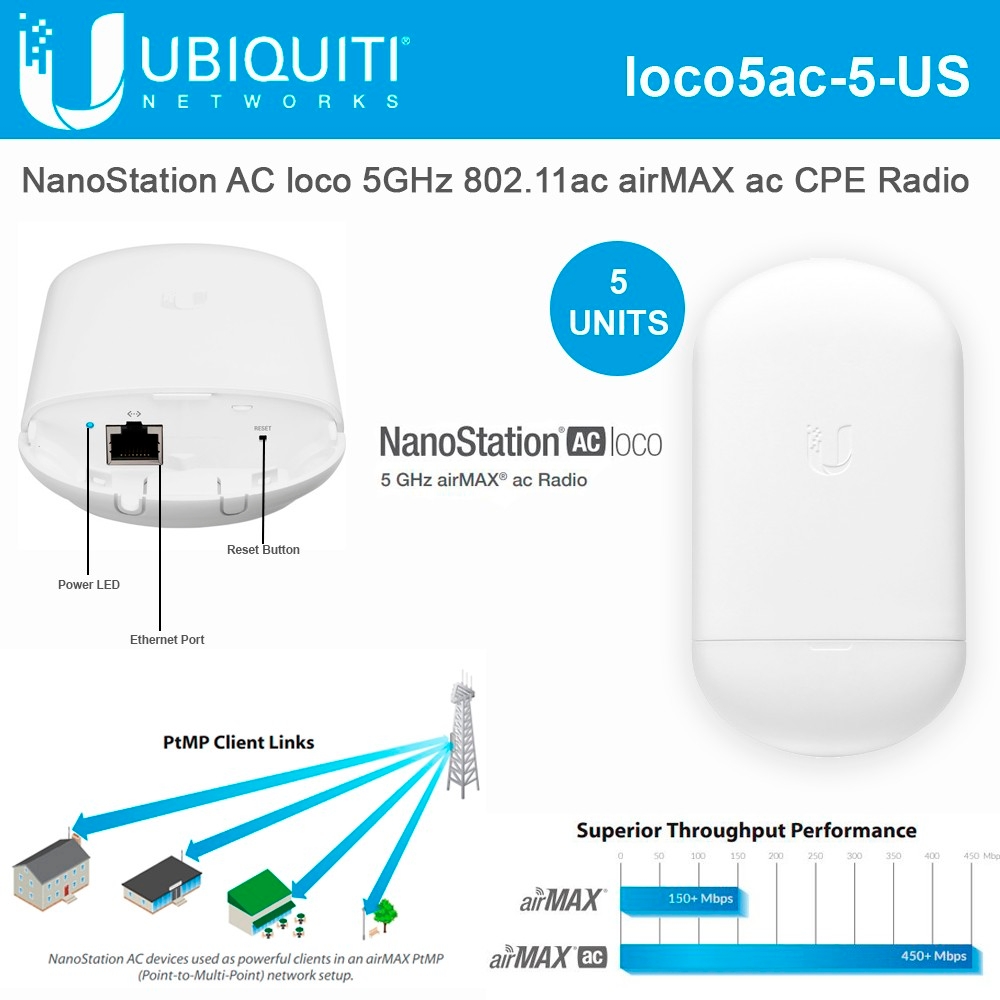

                                             NanoStation AC loco

                                                                5 GHz airMAX ac CPE

The indoor/outdoor NanoStation AC loco is compact, high-performance CPEs featuring airMAX AC technology and a dedicated Wi-Fi radio for management.

The Ubiquiti NanoStation AC loco integrates airMAX Wireless Access Point (MIMO TDMA protocol) technology and dedicated Wi-Fi management to create a more efficient and compact CPE. The low cost, high performance, and small form factor of the NanoStation AC loco makes it extremely versatile and economical to deploy.

  • Sleek Industrial Design

The NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.



  • Management Wi-Fi Radio

The NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.



  • Now with airOS 8

airOS 8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Throughput

  • Up to 450+ Mbps Real TCP/IP Throughput

Operating Frequency (MHz)

  • 5150 - 5250, 5725 - 5850

Management Radio (MHz)

  • 2412 - 2462

Power Supply

  • 24V, 0.5A Gigabit PoE Supply*

Max. Power Consumption

  • 8.5W

Power Method

  • Passive PoE (Pairs 4, 5+; 7, 8 Return)

Gain

  • 13 dBi

Networking Interface

  • 10/100/1000 Mbps Ethernet Port

Channel Bandwidths

  • 10/20/30/40/50/60/80 MHz

Processor Specs

  • Atheros MIPS 74Kc, 560 MHz

Memory

  • 64 MB DDR2

Cross-pol Isolation

  • 20 dB Minimum

Max. VSWR

  • 1.8:1

Beamwidth

  • 45° (H-pol) / 45° (V-pol) / 45° (Elevation)

Polarization

  • Dual Linear

Enclosure

  • Outdoor UV Stabilized Plastic

LEDs

  • (1) Power

Mounting

  • Pole-Mount (Kit Included)

Operating Temperature

  • -40 to 70° C (-40 to 158° F)

Operating Humidity

  • 5 to 95% Non-condensing

Click Here to view more:

Quick_Start_Guide_loco5ac_QSG.pdf

Data_Sheet_NanoStation_AC_loco_DS.pdf
