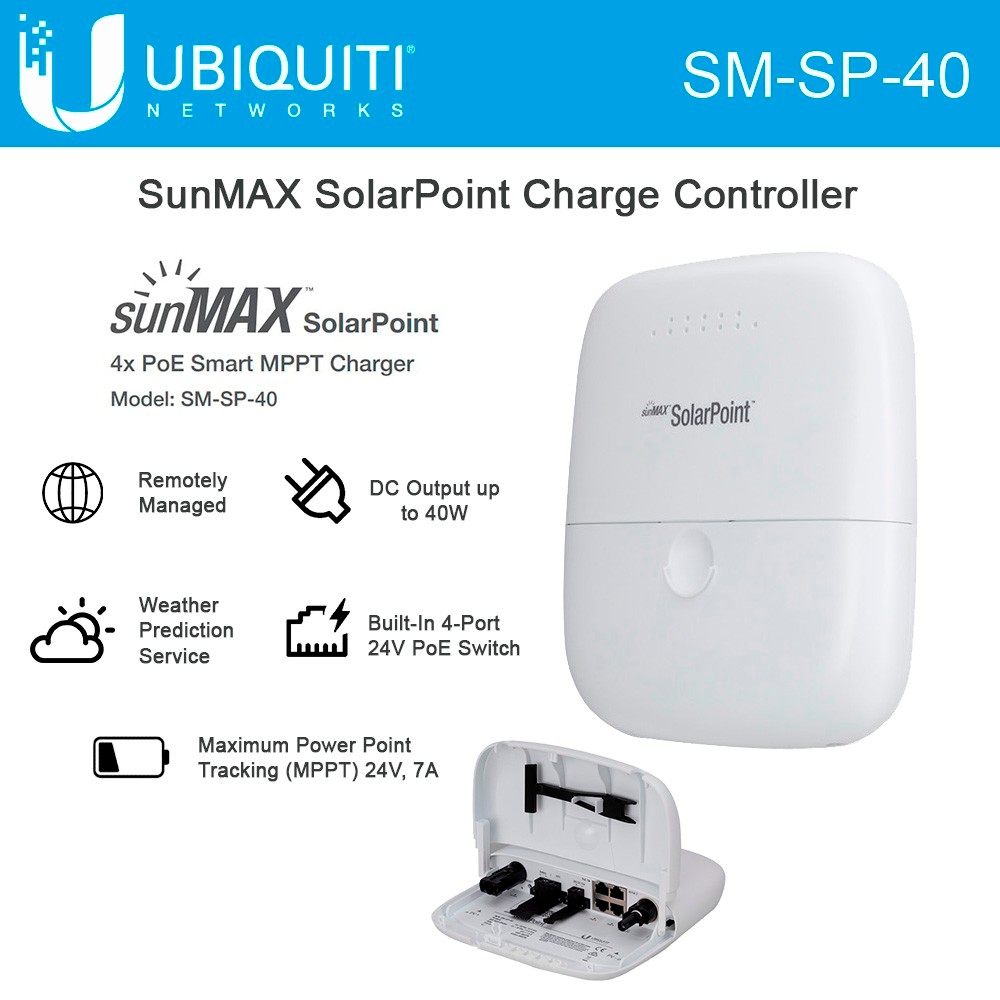

Ubiquiti SunMAX SolarPoint remote managed MPPT 24V 7A charge controller 4-port 24V PoE SM-SP-40 40W
Product Highlights
Model#: SM-SP-40
Sku: IT3735
MSRP: $239.99
In Stock
Your Price: $239.99
MODEL: SM-SP-40
SunMAX SolarPoint is a remote managed MPPT 24V 7A charge controller with a built-in 4 port 24V PoE 10/100Mbps switch and one DC output delivering up to 40W. It comes with built-in weather prediction service, which together with AI algorithms will provide you with critical information about your solar site's existing and future performance. The ruggedized SolarPoint case withstands outdoor conditions, including wind, rain, and snow. The included rubber plugs protect cable openings.
- Indoor and Outdoor use
- PV Panel Input 10 – 60V
- 4-port 24V PoE output 10/100 switch
- 24V DC-Out Terminal
- Max output power 40W
- External 24V Battery Charging up to 7Amps (supports SLA, AGL, AGM)
* Batteries and solar panels are not included
Specifications SM-SP-40
| Dimensions | 202 x 190 x 50 mm (8 x 7.5 x 2") |
| Weight | 650 g (1.4 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Pole mount diameter | 35 to 60 mm (1.4 to 2.4") on pipe outer diameter |
| Weatherproofing | IPX4 |
| Hardware | |
| Networking interface | (4) 10/100 MbE fast ports |
| Management interface | Ethernet WiFi |
| Power method | PV panel (H4 connectors) |
| Max. power consumption | 2W |
| Supported voltage range | 10–60V (Reverse protection, surge protection) Max. open circuit voltage: 60V |
| LEDs | System, output |
| Button | Factory reset |
| Ambient operating temperature* | -20 to 50° C (-4 to 122° F) |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
| Software | |
| Operating mode | AP |
| Security | WPA2-AES |
| Services | UISP, SNMP, NTP client, timezone, weather prediction service |
| Tools | Discovery, ping, traceroute over UISP app |
| Application requirements | UISP: Version 2.0.0 and later |
