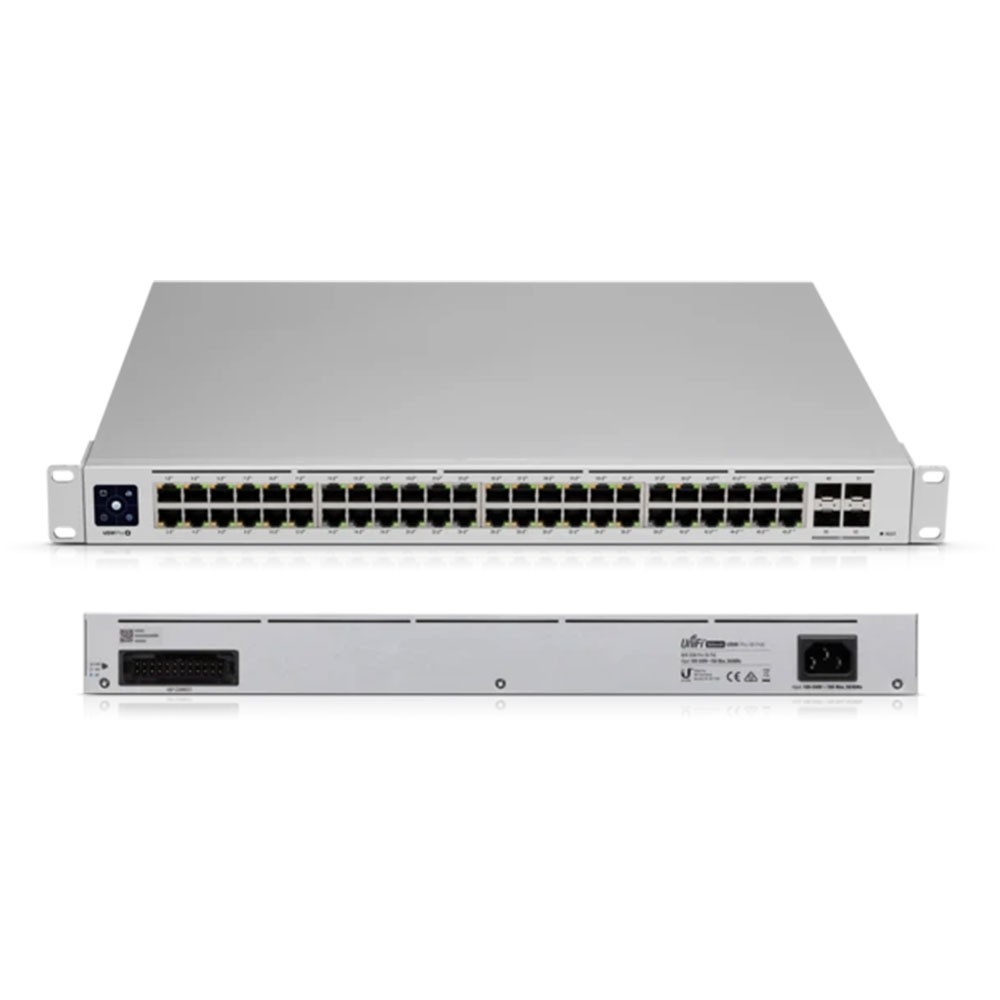

Ubiquiti USW-Pro-48-PoE UniFi Switch Gen2 10 Gigabit 48 Port - POE VERSION
Product Highlights
Model#: USW-Pro-48-POE
Sku: IT3725
MSRP: $1,199.99
In Stock
Your Price: $1,199.99
MODEL: USW-Pro-48-POE
UniFi Switch Gen2 10 Gigabit 48 Port
The USW-PRO-48-POE is a configurable Gigabit Layer2 and Layer3* switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Forty PoE+ and eight PoE++ RJ45 Ethernet ports have total 600W PoE budget, and four SFP+ ports offer 10Gbps uplink options. Near-silent cooling and a 1.3" touch LCM.
*Note: Layer3 will be included in a future firmware upgrade
Features:
- (16) Gigabit RJ45 ports with 802.3af/at
- (8) Gigabit RJ45 ports with 802.3bt
- (2) 1/10G SFP+ ports
- 1U Rackmountable (hardware included)
Specifications USW-Pro-48-POE
| Dimensions | 442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72") |
| Weight With Brackets |
6.25 kg (13.78 lb) 6.34 kg (13.98 lb) |
| Interfaces Networking Management |
(48) 10/100/1000 RJ45 Ports (4) 1/10G SFP+ Ethernet Ports Ethernet In-Band |
| Total Non-Blocking Throughput | 88 Gbps |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.944 Mpps |
| Power Method Universal Input USP RPS DC Input |
100-240VAC, 50/60 Hz 52VDC, 11.54A; 11.5VDC, 5.22A |
| Power Supply | AC/DC, Internal, 660W |
| Voltage Range | 100 to 240VAC |
| Max Power Consumption (Excluding PoE Output) | 60W |
| LEDs System RJ45 Data Ports SFP Data Ports |
Status PoE; Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE | |
| Total Available PoE | 600W |
| PoE Interfaces Ports 1-40 Ports 41-48 |
POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 60W PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) |
| Max. PoE Wattage per Port by PSE 802.3at 802.3bt |
32W 64W |
| Voltage Range 802.3af Mode 802.3at/bt Mode |
44-57V 50-57V |
