EZBR-0516HD+

Tycon Power Systems


Tycon Power EZBR-0516HD+ PtP Bridge Pair System 5GHz with 2x 16dBi 802.11an MIMO Antennas Built-in



Product Highlights
  • EZ-Bridge LT5+ HD Industrial Strength 100MB 5GHz Wireless Point to Point Secure Bridge Pair, Includes outdoor Shielded CAT5 Cables and Surge Protected PoE Inserters
  • Plug and Play Simplicity, Just Point and Power Up via 12-24V Passive PoE (PoE Injectors incl)
  • Layer 2 Transparency, Supports VOIP, VPN, Multiple MAC Addresses and DHCP Across the Wireless Link
  • Only 4W Average Power Consumption, Great for Solar Powered Systems
  • Conforms to Wireless Standards 802.11an, Wall or Pole(1-2 inches) Mounting Brackets Included
  • Model#: EZBR-0516HD+

    Sku: IT3709



    MSRP: $387.99


    Out of stock

    The EZ-Bridge LT5HD+ is a high power 25dBm (316mW) outdoor wireless bridge system operating in the 5GHz unlicensed frequency spectrum providing real world throughput up to 100 Mb/sec. It complies with the 802.11an standards to insure interoperability. The EZ-Bridge LT5HD+ creates a transparent wireless bridge between two networks up to 3 miles apart with good line of sight. It supports VOIP, VPN, multiple MAC addresses and DHCP across the wireless link. It is the perfect plug and play solution for connecting the networks in two or more buildings, internet access sharing, remote video surveillance or remote network access. Multiple EZ-Bridge LT5HD+ units can be connected in a mesh configuration to allow interconnecting more than two sites.

    With its password verification, MAC address authentication, SSID suppression and advanced WPA encryption, the system provides the best available wireless data security.

    Installation is a snap because of the plug and play features which have been built into the system. Just install the antennas and plug in the power inserters. The units will automatically find their peer and create a secure wireless network link. If changes to the pre-configured settings are desired, they can be easily done thru the built-in web interface from any point on either side of the network. There are no drivers or software that needs to be loaded to the computer.

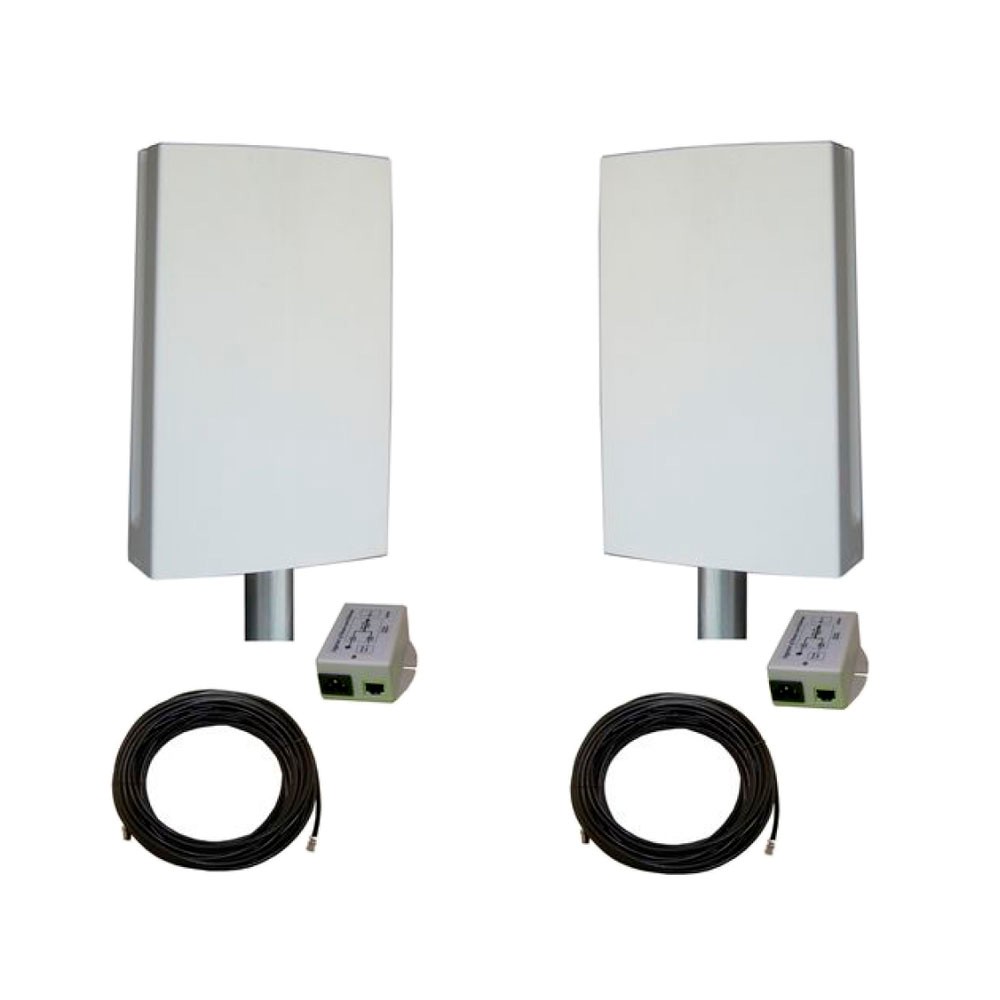

    The EZ-Bridge LT5HD+ comes complete with all the electronics that are needed for a point to point wireless network bridge installation; including 2 powerful 16dBi 802.11an MIMO antennas with built-in high power electronics, Bracket Kits which accommodate pole or wall mounting, Surge Protected Cat5e rated POE (Power Over Ethernet) power inserters and 75' outoor rated shielded CAT5 cables. Customer needs to supply CAT5 cabling between the power inserter and his computer, router or switch.

    • Data Rates 5GHz 802.11n: up to 300Mbps / 5GHz 802.11a: up to 54Mbps
    • Standards IEEE802.11g/n, 802.11a/n, 802.3, 802.3u
    • Power Requirements Power Supply: 100-240VAC 50/60Hz / EZ-Bridge: 12VDC to 24VDC Passive PoE / Average Power Consumption: 4W
    • Regulatory Certifications FCC Part 15 / UL
    • RF Frequency Band 5100 ~ 5850 MHz
    • Modulation Technology 802.11n: TDMA / 802.11g: OFDM / 802.11a: OFDM
    • Receive Sensitivity (Typical) 802.11n: -90 dBm / 802.11g: -75 dBm / 802.11a: -75 dBm
    • Transmit Power 25dBm 316mW
    • DC Connector Power Out Input Voltage @ Max 10W
    • Antenna 5GHz 16dBi MIMO Panel Antenna, 27deg Beamwidth, >22dB front to back
    • Operation Mode – Bridge or Router: Point to Point Bridge, Access Point, Access Point WDS, Client, Client WDS
    • Interface 10/100Mbps RJ-45 LAN Port x 2
    • IP Configuration Static or Auto configuration using DHCP Client
    • Security MAC Address Filtering, WEP/WPA encryption, Hide SSID in beacons, Layer 2 isolation
    • Management Configuration Web-based configuration (HTTP) / Console configuration (SSH) / SNMP Protocol
    • Firmware Upgrade Upgrade firmware via web browser
    • Antenna Physical Dimensions (L x W x D) 314mm x 187mm x 65mm 12.4” x 7.3” x 2.5”
    • Complete System Weight 3 kg (7 lbs )
    • Operating Temperature -30°C to +70°C (-22°F to 158°F)
    • Manufacturer Warranty: 2 Year
