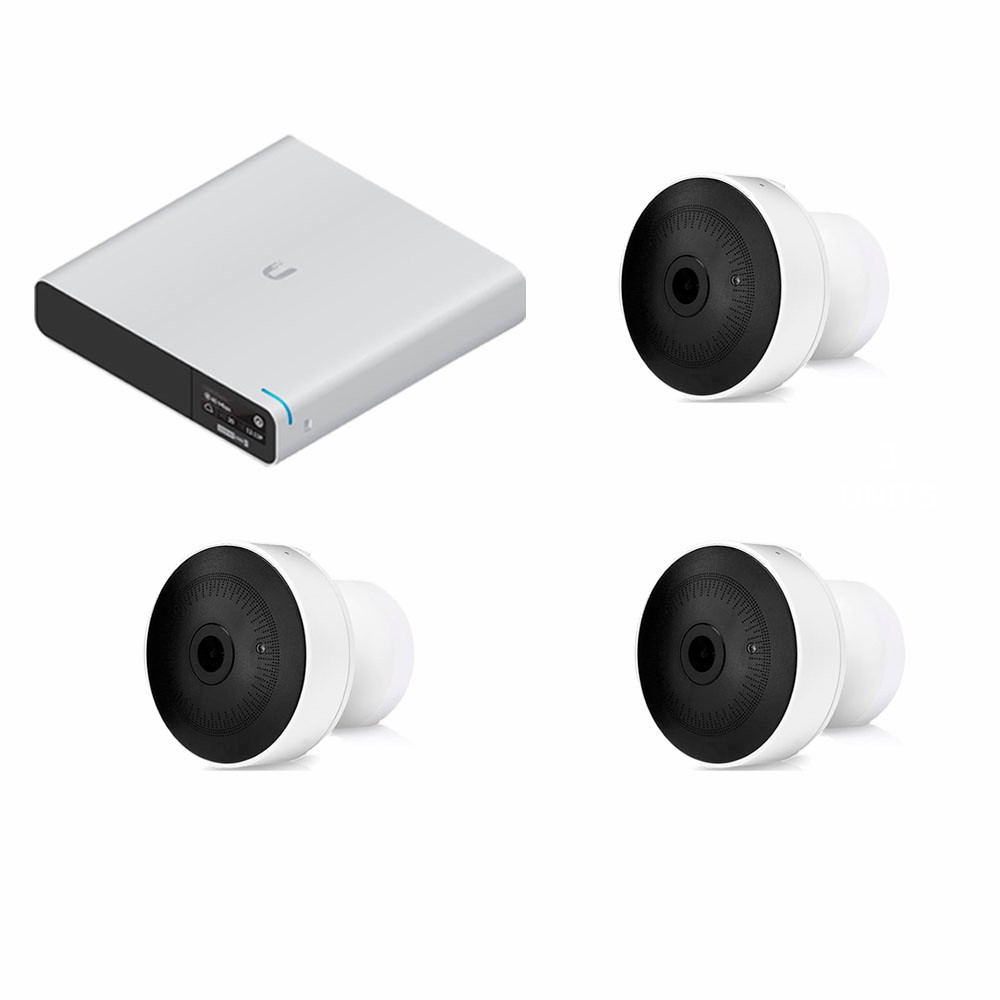

Ubiquiti UniFi Protect G3 Micro Camera 3 UNITS 1080p Wi-Fi Micro-Size with UniFi Cloud Key Gen2 Plus Cloud Device Management

UVC-G3-MICRO-3PK-BD3

Ubiquiti
Ubiquiti Networks UniFi Protect G3 Micro Camera 3 UNITS UVC-G3-MICRO 1080p Wi-Fi Micro-Size with UniFi Cloud Key Gen2 Plus UCK-G2-PLUS Cloud Device Management

Model#: UVC-G3-MICRO-3PK-BD3

Sku: IT3699.8558.316560



MSRP: $899.00

Out of stock

Your Price: $899.00


Model: UVC-G3-Micro 3 UNITS

                                             UniFi Protect G3 Micro Camera 1080p HD

The Ubiquiti Networks UniFi Video Camera Micro provides 1080p HD resolution at 30 FPS. The UniFi Video Camera Micro is designed for use indoors. A magnetic base is used for power transfer and 3-axis viewing adjustment. Mount it magnetically on a metal surface, or integrate it seamlessly into any corner, wall, or ceiling. The UniFi Video Micro features 2.4 GHz and 5 GHz 2x2 MiMO wireless for streaming HD video. The camera has infrared LEDs with automatic IR cut filter.


  • Breakthrough Size and Performance

About the size of a golf ball, the UniFi Video G3 Micro Camera provides 1080p HD resolution at 30 FPS.



  • Wide-Angle 1080p HD Video

Get the full picture in sharp 1080p video. Automatic high-power infrared illumination at night provides crisp video even in the darkest conditions.

  • Dual-Band Wi-Fi Connectivity

Super-fast 2.4 GHz and 5 GHz wireless for streaming HD video.



  • Listen In, Talk Back

2-way audio communication through the UniFi Video mobile applications.



  • Powerful Management Software

Use the UniFi Video mobile app for easy camera management and live streaming from an iOS or Android-based smartphone or tablet.





Model: UCK-G2-PLUS

                                                        UniFi Cloud Key G2 Plus

The UniFi Cloud Key Gen2 Plus from Ubiquiti Networks is an integrated hardware controller and self-contained application server designed to monitor and manage your UniFi network devices and camera surveillance system.

The UniFi Cloud Key Gen2 Plus features an eight-core processor with 3GB of RAM, a 1TB 2.5" SATA hard drive (user-upgradeable), and 32GB eMMC flash storage. There is a 10/100/1000 Mb/s Gigabit Ethernet port, which supports 802.3af PoE. You can also power the device via the USB Type-C port with QuickCharge 2.0 technology.

Fully integrated UniFi Network and Protect Controller with 1 TB HDD for video storage. Upgradeable up to 5 TB.

Manage your UniFi networking and video devices simultaneously with the new multi-application UniFi Cloud Key G2 Plus. Designed for easy deployment, the Cloud Key G2 Plus can be quickly configured over Bluetooth using the UniFi mobile applications. The front panel display shows vital system stats for your UniFi networking hardware and UniFi Protect video cameras. A built-in battery provides protection against power loss. For video storage, it also includes a 1 TB HDD, which is upgradeable to 5 TB.

  • UniFi Cameras

The UniFi Cloud Key Gen2 Plus can configure and manage up to 20 UniFi cameras in UniFi Protect mode. It can also manage and configure up to 15 UniFi cameras and 50 UniFi devices in UniFi SDN + UniFi Protect mode.

  • Hybrid Cloud Configuration

The Ubiquiti hybrid cloud configuration provides a secure, private SSO (Single Sign-On) to access all of your UniFi deployments from anywhere in the world. With the hybrid cloud, a third-party hosted cloud service is not required, so all your personal data remains local and secure.

Features:

  • Includes UniFi Protect video surveillance software
  • Includes UniFi SDN network management software
  • Easy setup with UniFi and UniFi Protect mobile apps
  • Powered by 802.3af PoE or QC 2.0 USB-C
  • Built-in battery for automatic safe shutdown
  • 1 TB 2.5" hard drive included (upgradeable to 5 TB)
  • Front panel display for at-a-glance system details

Model: UVC-G3-Micro 3 UNITS


• Dimensions 165 x 158 x 96mm
• Weight: 591g
• Night Mode: Dual integrated high-power infrared illuminators / Automatic IR cut filter
• Audio: Integrated microphone (Can be disabled at time of installation where not allowed by law) Integrated speaker for 2-way audio
• Power Supply: 100V-240V 50/60Hz Universal AC Adapter / Ethernet 802.3af PoE Adapter (power only)
• Mounting: Built-in magnetic base / Flat wall-mount with included wall anchors / Angled wall-mount with included wall anchors / Desktop stand
• Management Interfaces: Free UniFi Video Control Software / Ubiquiti UVC-NVR Appliance / Built-in Web UI for standalone RTSP streaming

Product Includes:
• UVC-MICRO camera
• Power Supply
• Mounting Hardware
• Quick Start Guide

Click here to view:



Model: UCK-G2-PLUS

  • Dimensions: 131.16 x 27.10 x 134.20 mm (5.16 x 1.07 x 5.28")
  • Weight: 582 g (1.28 lb)
  • Enclosure: Anodized Aluminum
  • Management Interface: UniFi Management Portal; UniFi SDN; UniFi Protect
  • Hard Drive Capacity: 1 TB 2.5" SATA HDD (user-upgradeable)
  • Device Capacity:
  • UniFi Protect Mode: Up to 20 UniFi Cameras
  • UniFi SDN + UniFi Protect: Up to 15 UniFi Cameras and 50 UniFi Devices
  • Processor: APQ8053 8 Core with 3 GB RAM
  • eMMC Memory: 32 GB
  • Networking Interface: (1) 10/100/1000 Ethernet Port
  • Buttons: (1) Power; (1) Reset
  • LEDs: (1) Power, White/Blue
  • Power Method: Standard 802.3af PoE; Quick Charge 2.0/3.0 Power Adapter (9VDC, 2A)
  • Supported Voltage Range: Standard 802.3af PoE or 9VDC, 2A
  • Max. Power Consumption: 12.95W (PoE); USB-C Power
  • Operating Temperature: 0 to 35° C (32 to 104° F)
  • Operating Humidity: 20 to 80% Noncondensing
  • Certifications: CE, FCC, IC
