OmniTIK 5 POE ac US

Mikrotik

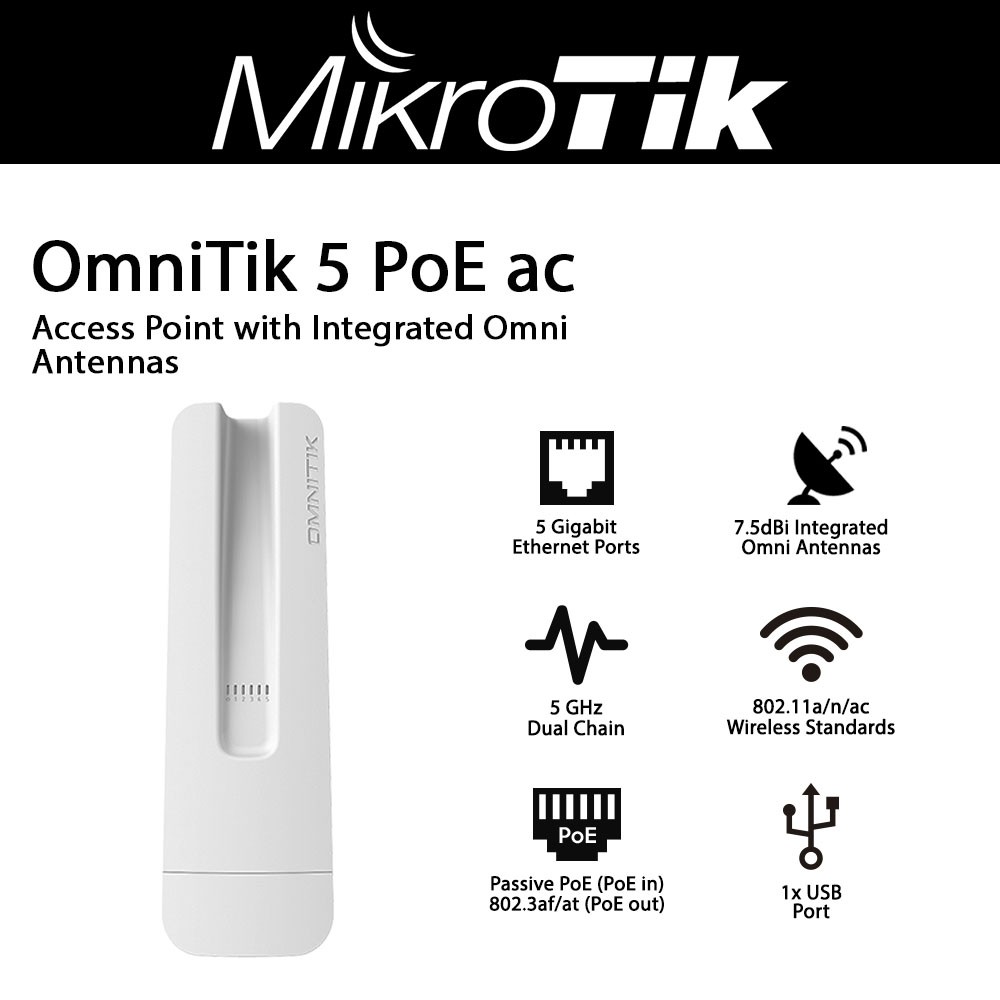

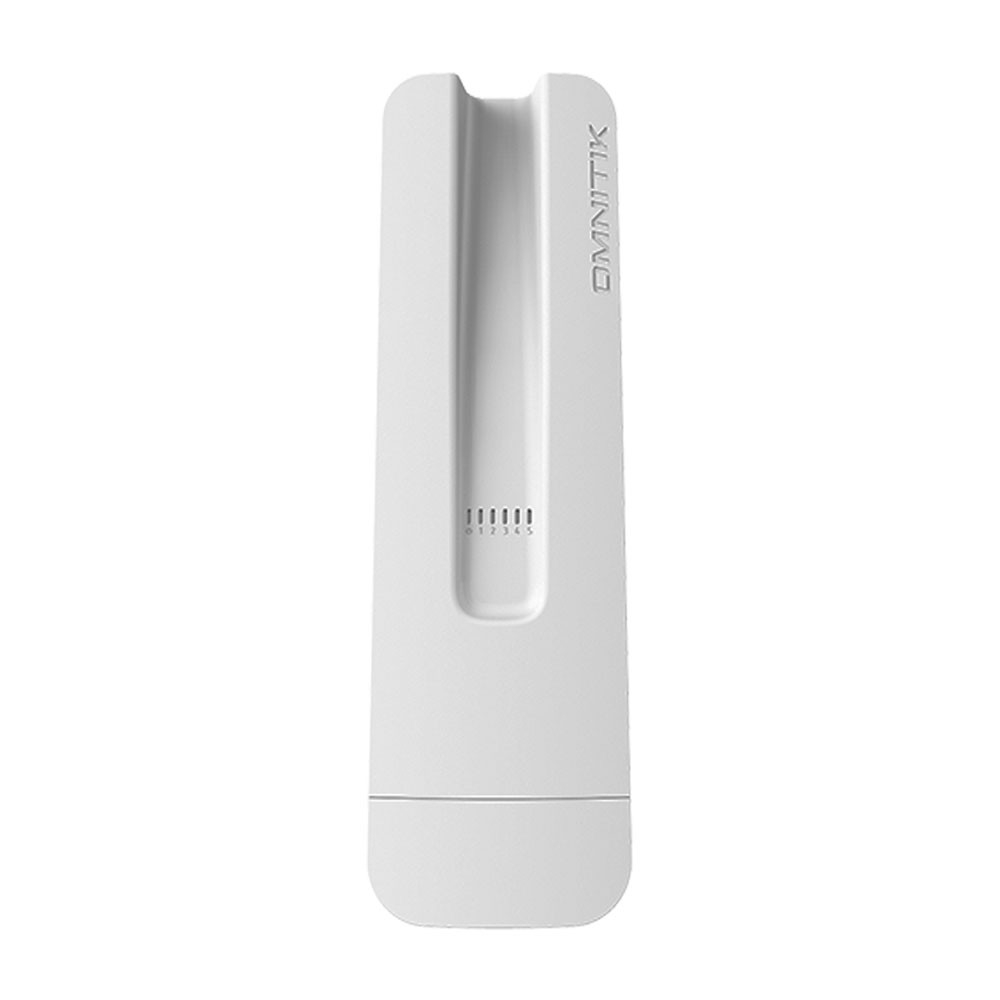

Mikrotik OmniTik 5 PoE ac 5GHz Access Point w/ 5 Gbit Ports and 2 Integrated 7.5dBi Omni Antennas



Product Highlights
  • OmniTIK 5 PoE ac also known as RBOmniTikPG-5HacD features five Gigabit Ethernet ports and support for 802.11ac
  • It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE)
  • The OmniTIK 5 PoE ac comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit
  • It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit
  • Size of RAM: 128 MB / CPU nominal frequency: 720 MHz / Storage size: 16 MB / Dimensions: 416 x 129 x 58 mm
  • Model#: OmniTIK 5 POE ac US

    Sku: IT3683



    MSRP: $169.99


    Out of stock

    OmniTIK 5 PoE ac also known as RBOmniTikPG-5HacD features five Gigabit Ethernet ports and support for 802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.

    It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power af/at mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.

    • Architecture    MIPSBE
    • CPU    QCA9557
    • CPU core count    1
    • CPU nominal frequency    720 MHz
    • Dimensions    416 x 129 x 58 mm
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    128 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -40°C to 70°C
    • PoE in    Passive PoE
    • PoE in input Voltage    12-57 V
    • PoE out    802.3af/at
    • PoE-out ports    Ether2-Ether5
    • Number of DC inputs    1 (PoE-IN)
    • Max out per port output (input > 30 V)    450 mA
    • Max out per port output (input < 30 V)    1 A
    • Max total out (A)    2 A
    • Max power consumption    66 W
    • Max power consumption without attachments    18 W
    • Wireless 5 GHz Max data rate    867 Mbit/s
    • Wireless 5 GHz number of chains    2
    • Wireless 5 GHz standards    802.11a/n/ac
    • Antenna gain dBi for 5 GHz    7.5
    • Wireless 5 GHz chip model    QCA9892
    • Wireless 5 GHz generation    Wi-Fi 5
    • 10/100/1000 Ethernet ports    5
    • Number of USB ports    1
    • USB Power Reset    Yes
    • USB slot type    USB type A
    • Max USB current (A)    1
    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes
    • Certification    CE/RED, FCC, IC, EAC, ROHS
