I12

Fanvil


Fanvil SIP Audio Intercom I12



Product Highlights
  • Support two output short circuit for video surveillance and alarm light, two input short circuit for door phone button and emergency button.
  • Support REC out connect port, connect with audio input port of camera or digital recording equipment, realize 24 hours monitor.
  • Connect with active speaker or loud speaker, broadcast message or music.
  • Designing in the most popular communication standard protocol - SIP, you needn't worry about compatibility, vendor selection and alteration any more.
  • Use in different environment and application scenarios.
  • Model#: I12

    Sku: IT3633



    MSRP: $159.00

    In Stock

    Your Price: $149.00






    Model: I12

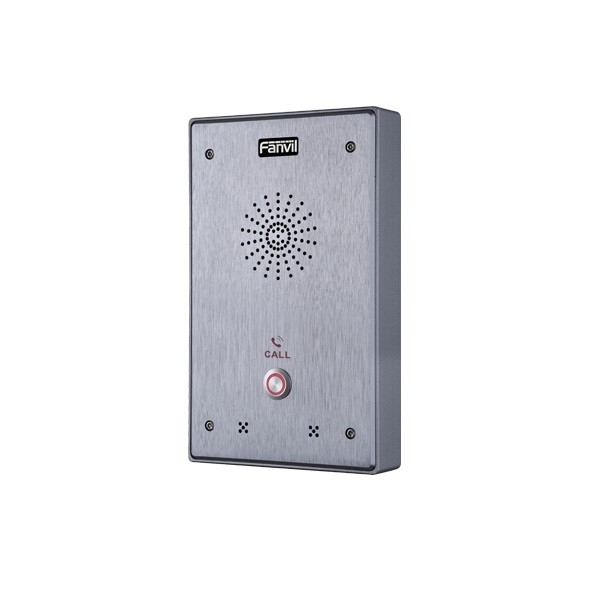

    Fanvil I12 SIP Audio Intercom

    Fanvil i12 series SIP intercom devices, carrying Fanvil's 10+ years industrial experience in technology and product design, Combing IP technology together with industrial intercom perfectly. i12 series SIP intercom can be easily configured in varies application scenarios like bank, schools, mining, cities, etc.

    Generic:
    • 2 SIP Lines
    • PoE enabled(Power over Ethernet)
    • Full-duplex speakerphone
    • Intelligent DSS Keys (Speed dial)
    • Wall-mount installation
    • Special integrated noise reducation module
    • Omnidirectional voice pickup
    • 2 embedded short-circuit input and output interfaces
    • Support 4 controlled events: remote DTMF; remote server’s commands; interaction with short circuit input; talking status
    • Output interface for active speaker
    • Audio record output interface
    • External Power Supply
    • Multicast
    • All in ONE: door access, intercom and paging service
    • Industrial standard certifications: IP65, IK10, CE/FCC

    Call Features:
    • Intercom
    • Speed dial(speed dial key)
    • Auto-answering (per line)
    • Voice message (on server)
    • Local 3-way Conference

    Phone Features:
    • Call log (900 entries, in/out/missed)
    • Programmable DSS keys
    • Network time synchronization
    • Action URL / Active URI Audio
    • Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
    • Wideband CODEC: G.722
    • Full-duplex Acoustic Echo Canceller (AEC) – Hands- free mode, 96ms tail-length
    • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
    • Packet Loss Concealment (PLC)
    • Dynamic adaptive jitter buffer up to 300ms
    • DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
    • Omnidirectional voice pickup: pickup distance to 5 m


    Networking:
    • Physical: RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Enabled), LAN x1 (Bridged to Network)
    • IP configuration: Static / DHCP / PPPoE
    • Network access control: 802.1x
    • VPN: L2TP (Basic Unencrypted) / OpenVPN
    • VLAN
    • QoS

    Protocols:
    • SIP2.0 over UDP/TCP/TLS
    • RTP/RTCP/SRTP
    • STUN
    • DHCP
    • 802.1x
    • L2TP (Basic Unencrypted)
    • OpenVPN
    • SNTP
    • FTP/TFTP
    • HTTP/HTTPS
    • Tr069

    Deployment & Maintenance:
    • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/TR069/SIP PNP
    • Web management portal
    • Web-based packet dump
    • Configuration backup/restore
    • Firmware upgrade
    • Syslog

    Physical Specifications:
    • 1 or 2 Hands-free keys or DSS Keys (Speed dial)
    • Rj45 Ethernet Jacket x2: Network x1 (802.3AF POE enabled), LAN x1 (Bridged to network)
    • Main chipset: Broadcom
    • Passive switch(short-circuit output): normally open and normally closed highest at 30V/1A AC/DC
    • Audio Amplifier: 2.5W
    • Output interface for active speaker
    • Audio record output interface
    • 2 embedded short-circuit input interfaces/2 embedded short-circuit output interfaces
    • Speaker: 2W/4Ω
    • Cables: CAT5 or better
    • Power supply:10~14V/1.5A DC or PoE
    • Shell material: Aluminum cover and back case
    • Protection level: IP65 and Ik10
    • Working temperature:-40~70?
    • Storage temperature:-40~70?
    • Working humidity: 10~90%
    • Overall dimension: 195x120x39mm (W x H x L)
    • Package dimensions: 260x165x62mm (W x H x L)
    • Package weight: 0.85KG
