USW-Pro-24-PoE

Ubiquiti

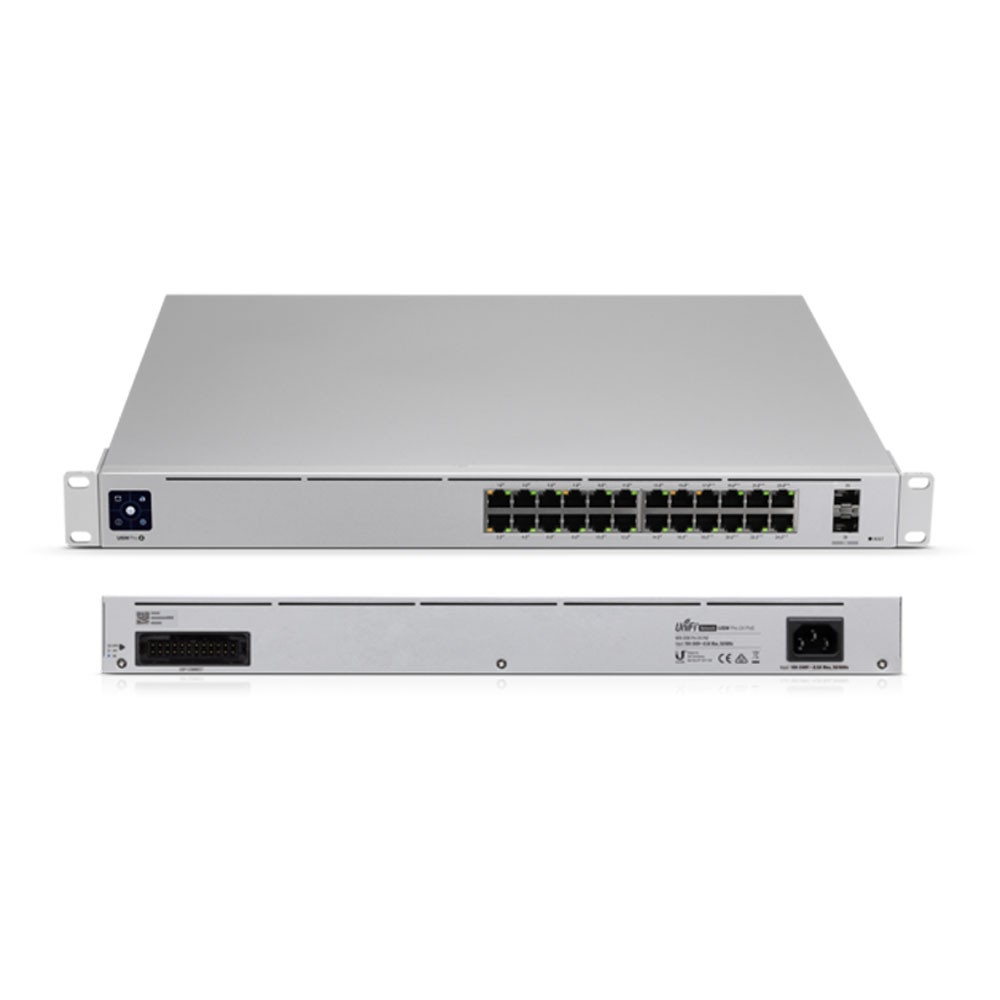

Ubiquiti Networks USW-Pro-24-POE UniFi Switch Pro 24 PoE



Product Highlights
  • (8)Gigabit RJ45 802.3bt PoE++ ports
  • (16) Gigabit RJ45 802.3at PoE+ ports
  • (2) 10G SFP+ ports
  • Layer 2 and Layer 3 features
  • 400W maximum PoE power
  • Model#: USW-Pro-24-PoE

    Sku: IT3605



    MSRP: $778.99

    In Stock

    Your Price: $778.99






    MODEL: USW-Pro-24-PoE

    UniFi Switch Gen2 10 Gigabit 24-Port

    The USW-PRO-24-POE is a configurable Gigabit Layer2 and Layer 3* switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Sixteen PoE+ and eight PoE ++ RJ45 Ethernet ports have total 400W PoE budget, and two SFP+ ports offer 10Gbps uplink options. Near-silent cooling and a 1.3" touch LCM.

    *Note: Layer3 will be included in a future firmware upgrade



    Features:

    • (16) Gigabit RJ45 ports with 802.3af/at
    • (8) Gigabit RJ45 ports with 802.3bt
    • (2) 1/10G SFP+ ports
    • 1U Rackmountable (hardware included)

    Specifications USW-Pro-24-POE

    Dimensions 442.4 x 285.4 x 43.7 mm
    (17.42 x 11.24 x 1.72")
    Weight
    With Brackets
    4.30 kg (9.48 lb)
    4.39 kg (9.68 lb)
    Interfaces
    Networking

    Management

    (24) 10/100/1000 RJ45 Ports
    (2) 1/10G SFP+ Ethernet Ports
    Ethernet In-Band
    Total Non-Blocking Throughput 44 Gbps
    Switching Capacity 88 Gbps
    Forwarding Rate 65.472 Mpps
    Power Method
    Universal Input
    USP RPS DC Input

    100-240VAC, 50/60 Hz
    52VDC, 7.69A; 11.5VDC, 2.61A
    Power Supply AC/DC, Internal, 450W
    Voltage Range 100 to 240VAC
    Max Power Consumption (Excluding PoE Output) 50W
    LEDs
    System
    RJ45 Data Ports
    SFP Data Ports
    Status
    PoE; Speed/Link/Activity Link/Activity
    ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
    Shock and Vibration ETSI300-019-1.4 Standard
    Operating Temperature -5 to 40° C (23 to 104° F)
    Operating Humidity 10 - 90% Noncondensing
    Certifications CE, FCC, IC
    PoE
    Total Available PoE 400W
    PoE Interfaces
    Ports 1-16

    Ports 17-24

    POE+ IEEE 802.3af/at
    (Pins 1, 2+; 3, 6-)
    60W PoE++ IEEE 802.3bt
    (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
    Max. PoE Wattage per
    Port by PSE
    802.3at
    802.3bt


    32W
    64W
    Voltage Range
    802.3af Mode
    802.3at/bt Mode

    44-57V
    50-57V

    Datasheet

    PDF File Ubiquiti Networks USW-Pro-24-POE UniFi Switch Pro 24 PoE
