LBE-5AC-LR-US-5PK

Ubiquiti

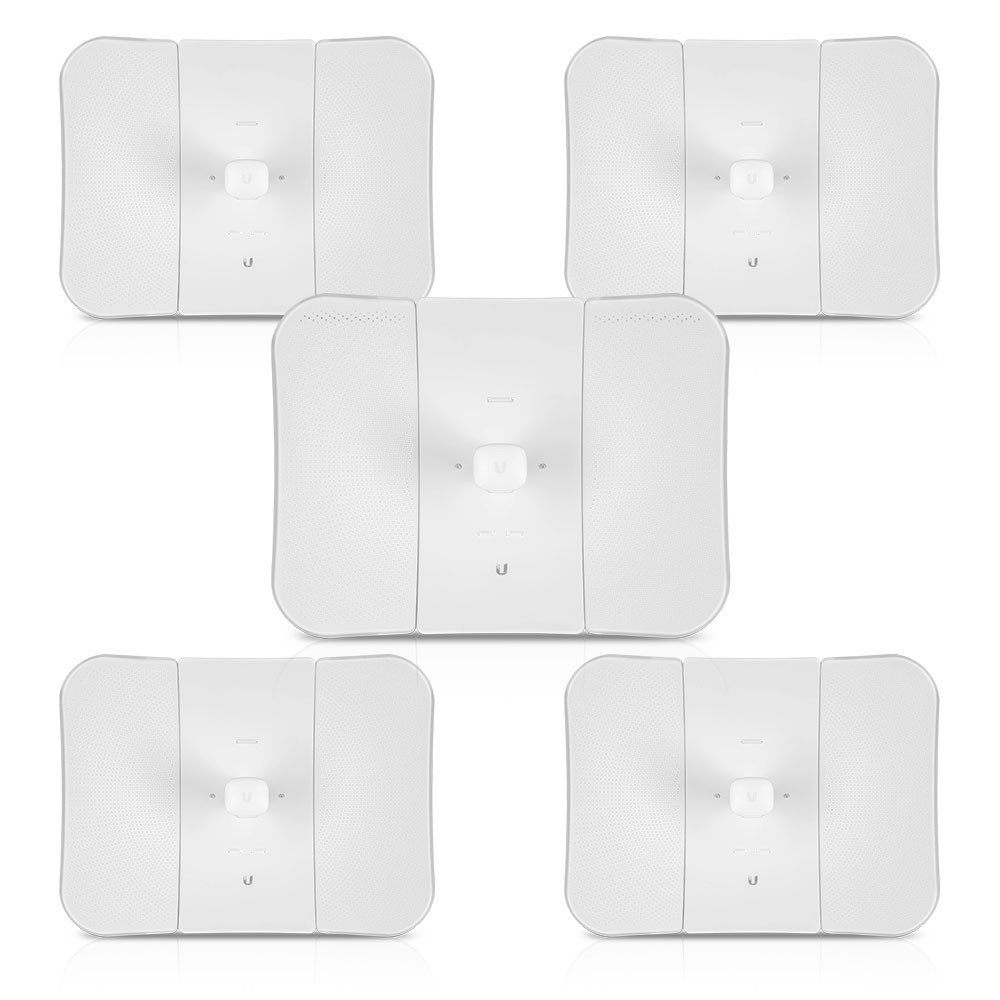

Ubiquiti 5-PACK airMAX LiteBeam 5AC LR long-range LiteBeam AC CPE LBE-5AC-LR for long-distance link



Product Highlights
  • Ubiquiti Networks LiteBeam AC LR LBE-5AC-LR-US 26 dBi 5 GHz airMAX AC Long-Range CPE (5-Pack)
  • The LiteBeam AC is an ultra-lightweight airMAX ac CPE device with incredible range and disruptive pricing.
  • The LiteBeamAC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
  • The LiteBeam AC LR provides 26 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.
  • A lightweight form factor contained within ultra-compact packaging, the LiteBeam AC is ideal for shipping and logistics.
  • Model#: LBE-5AC-LR-US-5PK

    Sku: IT3596

    Out of stock

    Model: LBE-5AC-LR-US

    Ubiquiti airMAX LiteBeam 5AC LR

    Designed for long-range applications, the Ubiquiti airMAX LiteBeam 5AC LR features a larger reflector size and elevation adjustment (azimuth is adjusted by rotation around the pole).

    Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment), the LiteBeam 5AC Gen 2, with dedicated Wi-Fi management. Improved Noise Immunity The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. The LiteBeam 5AC Gen 2 offers quick and easy alignment and enhanced protection against power surges.

    The LiteBeam AC is an ultra-lightweight airMAX ac CPE device with incredible range and disruptive pricing.



    • Management Wi-Fi Radio

    The LiteBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

    • Improved Mounting and Surge Protection

    Featuring enhanced protection against ESD events, the LiteBeam AC offers a more robust mount with separate azimuth and elevation adjustments.

    • Now with airOS 8 and airView

    airOS 8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.



    • High-Gain, Directional, 2x2 MIMO Antenna

    The LiteBeam AC LR provides 26 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.



    • Breakthrough Industrial Design

    Featuring the freedom of three-axis alignment, the LiteBeam AC fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.



    • Compact in Size, Light in Weight

    A lightweight form factor contained within ultra-compact packaging, the LiteBeam AC is ideal for shipping and logistics.

    HighLights

    • Throughput 450+ Mbps
    • Management Radio YES
    • Gain 26 dBi


    More Info

    • Dimensions: 512.5 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17")
    • Weight 1.360 kg (2.998 lb)
    • Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included)
    • Max. Power Consumption: 7W
    • Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
    • Supported Voltage Range: 24V ± 10%
    • Networking Interface (1) 10/100/1000 Ethernet Port
    • Processor Specs MIPS 74Kc
    • Memory 64 MB DDR2
    • Enclosure Characteristics Reflector (Aluminum) / Plastic: PC
    • Wind Loading 550 N @ 200 km/h (123.6 lbf @ 125 mph)
    • Wind Survivability 200 km/h (125 mph)
    • ESD/EMP Protection ± 24 kV Contact / Air
    • Operating Temperature -40 to 70° C (-40 to 158° F)
    • Operating Humidity 5 to 95% Non-condensing
    • Certifications CE, FCC, IC
