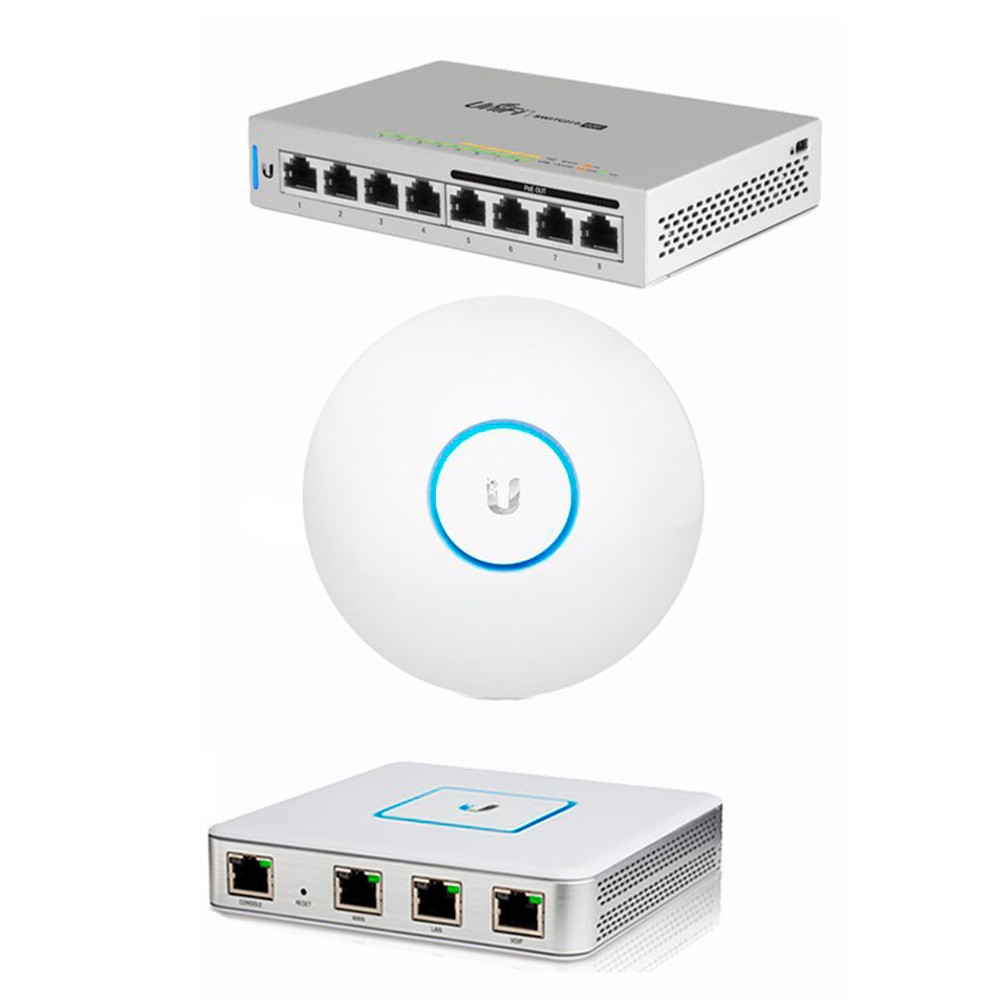

Ubiquiti UniFi AC LR Dual-Radio Access Point with Security Gateway Router and UniFi Ethernet Switch


Ubiquiti UAP-AC-LR UniFi AC LR 802.11ac Dual-Radio Access Point with USG UniFi Security Gateway Router and US-8-60W UniFi Ethernet Switch

Product Highlights
  • Ubiquiti UniFi AC LR UAP-AC-LR Dual-Radio Long Range 802.11ac Access Point WiFi MIMO
  • 5 GHz Speed 867 Mbps / 2.4 GHz Speed 450 Mbps
  • Ubiquiti USG UniFi Security Gateway Router 500 MHz Processor
  • The UniFi Security Gateway extends the UniFi Enterprise System to provide cost-effective, reliable routing and advanced security for your network.
  • Ubiquiti UniFi Switch 8 US-8-60W 8-Port Fully Managed Gigabit Switch 802.3af PoE ports 60 Watts
  • Model#: UAP-AC-LR-US-BD7

    Sku: IT3564.7847.279667

    MSRP: $357.00

    Out of stock

    Your Price: $329.95

    Model: UAP-AC-LR-US

    UniFi AP AC LR 802.11ac Long Range Access Point

    The UniFi AC LR AP features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for long-range deployment of high-performance wireless networks.

    The UAP-AC-LR-US 802.11ac Long Range Access Point from Ubiquiti is ideal for long-range deployments. This access point offers simultaneous, dual band operation with 3 x 3 MIMO in the 2.4 GHz band and 2 x 2 MIMO in the 5 GHz band. The innovative antenna design provides a long range, symmetrical link coverage area. The antenna gain of this access point performs better than what one way, high transmit power does for connecting distant clients.


    Model: USG

    UniFi Security Gateway Router with Gigabit Ethernet

    The UniFi Security Gateway extends the UniFi Enterprise System to provide cost-effective, reliable routing and advanced security for your network.

    The UniFi Enterprise Gateway Router with Gigabit Ethernet from Ubiquiti Networks is designed to be implemented with compatible UniFi Enterprise Systems to provide routing and security to your local area network. With three Gigabit Ethernet ports and the ability to route up to 1 million packets per second this gateway is a versatile networking tool.


    Model: US-8-60W

    UniFi Switch 8 Fully Managed Gigabit Switch

    The Ubiquiti Networks UniFi US-8-60W model features Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your growing networks. The switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, each supports up to 8 Gbps with a switching capacity of 16 Gbps. This model has four auto-sensing PoE ports that can deliver up to 15.4W of power for PoE devices.

    • 8-Port Managed Gigabit Switches

    The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.

    Model: UAP-AC-LR-US

    • Networking Interface: 1 x 10/100/1000 Ethernet ports
    • Button: Reset
    • Antennas: 1 x Dual-band antenna, tri-polarity
    • 2.4 GHz: 3 dBi
    • 5 GHz: 6 dBi
    • Wi-Fi Standards: 802.11 a/b/g/n/ac
    • Power Method: Passive Power over Ethernet (24 V), (Pairs 4, 5+; 7, 8 return)
    • Maximum Power Consumption: 6.5 W
    • Maximum TX Power: 2.4 GHz: 24 dBm
    • 5 GHz: 22 dBm
    • BSSID: Up to 4 per radio
    • Power Save: Supported
    • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
    • Certifications: CE, FCC, IC
    • Mounting: Wall/ceiling (kits included)


    Model: USG

    • Dual-Core 500 MHz Processor
    • 2 GB On-Board Flash Memory
    • Wall Mountable Design
    • 1 x RJ-45 Serial Console Port
    • 3 x Gigabit Ethernet Ports
    • 1 million packets per second for 64-byte packets
    • 3 Gb/s total line rate for packets 512 bytes or larger
    • Integrated and managed with UniFi Controller v4.x
    • Secure off-site management and monitoring
    • CLI management for advanced users
    • Silent, fanless operation


    Model: US-8-60W

    • 8 x Gigabit RJ-45 ports
    • 4 x Auto-Sensing IEEE 802.3af PoE ports

    • Non-Blocking Throughput: 8 Gbps

    • Switching Capacity: 16 Gbps

    • Forwarding Rate: 11.9 Mpps

    • Dimensions 148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")

    • Weight 432 g (15.24 oz)

    • Enclosure Characteristics SGCC Steel

    • Total Non-Blocking Throughput 8 Gbps

    • Switching Capacity 16 Gbps

    • Forwarding Rate 11.9 Mpps

    • Max. Power Consumption 12W (Excluding PoE Output)

    • Max. PoE Wattage per Port 15.4W

    • Power Method 48VDC, Max. 2A

    • Supported Voltage Range 57VDC to 44VDC

    • Power Supply External AC/DC Adapter, 48V, 1.25A

    • LEDs PoE (Port 8), Speed/Link/Activity (All Ports)

    • Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ports

    • PoE Interfaces (4) Ports 5, 6, 7, 8; IEEE802.3af

    • ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

    • Operating Temperature -5 to 45° C (23 to 113° F)

    • Operating Humidity 5 to 95% Noncondensing

    • Shock and Vibration ETSI300-019-1.4 Standard

    • Certifications CE, FCC, IC
