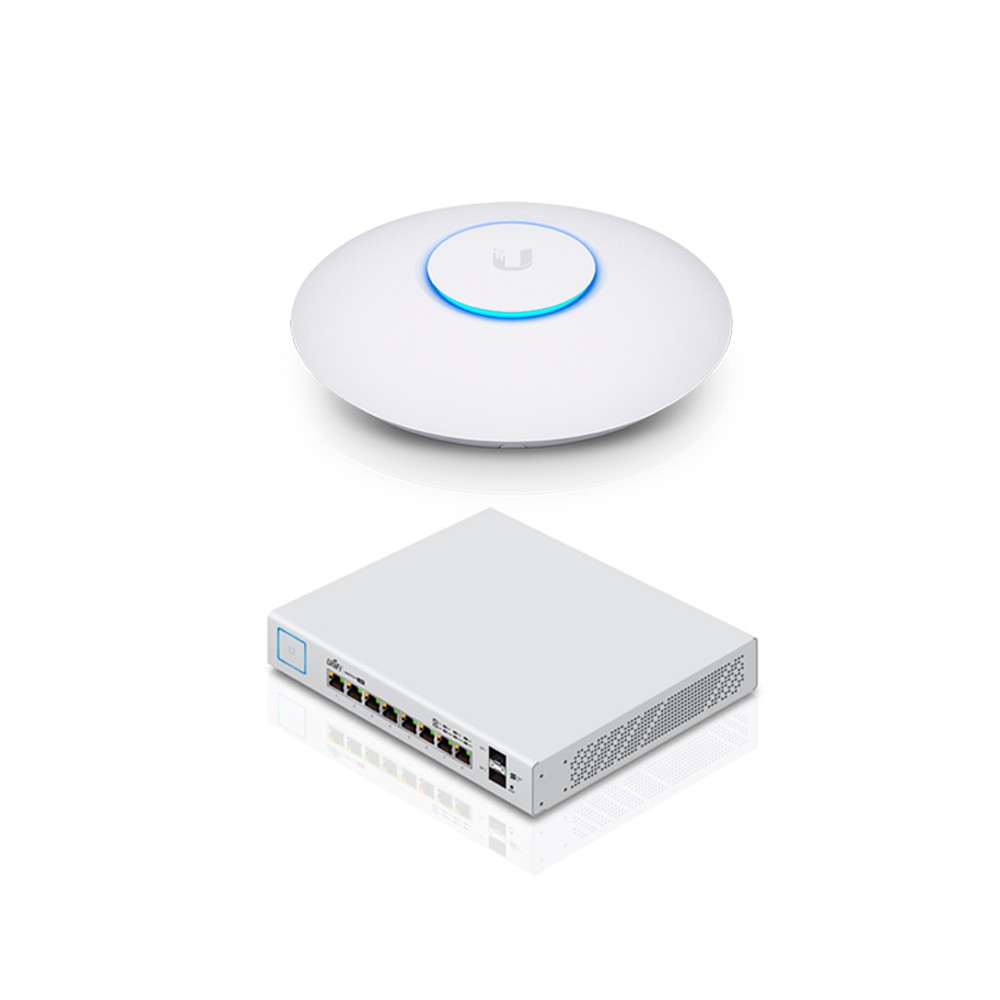

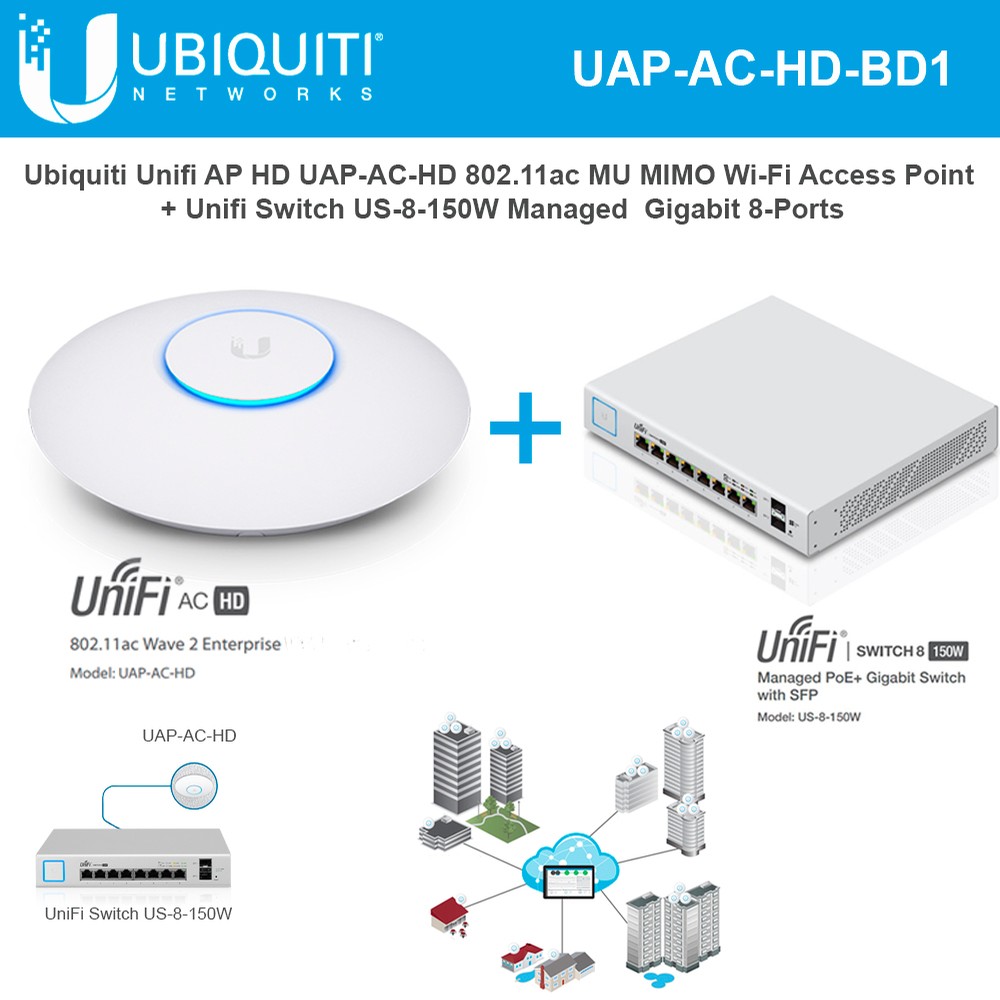

Ubiquiti Unifi AP HD UAP-AC-HD-US 802.11ac MU MIMO Enterprise Wi-Fi Access Point + UniFi Switch 8-Port US-8-150W Managed PoE+ Gigabit with SFP

Product Highlights
  • Ubiquiti Unifi AP HD UAP-AC-HD-US 5 GHz 802.11ac MU MIMO Wave 2 Enterprise Wi-Fi Access Point 4x4 MIMO 1733 Mbps
  • Unifi Access Point UAP-AC-HD-US is an Antenna System Optimized for 802.11ac Wave 2 MU-MIMO Beamforming allows a Wave 2 AP to communicate with multiple clients at the same time.
  • UAP-AC-HD-US: Independent 2.4 GHz and 5 GHz dedicated hardware offload for maximized multi?user throughput and reduced latency.
  • Unifi AC HD indoor/outdoor, high-performance 802.11ac Wave 2 Enterprise Wi-Fi Access Point.Simultaneous Dual-Band 4x4 Multi-User MIMO.
  • Ubiquiti UniFi Switch 8-Port US-8-150W Managed PoE+ Gigabit 8 Port Switch with SFP
  • Model#: UAP-AC-HD-BD1

    Sku: IT3563

    MSRP: $619.99

    Out of stock

    Model: UAP-AC-HD-US

    The UAP-AC-HD-US  Wave 2 Enterprise Wi-Fi Access Point from Ubiquiti Networks is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wave 2 Wi-Fi standard with speeds of up to 1733 Mbps in the 5 GHz radio band, and up to 800 Mbps in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual-band operation with 4x4 MIMO technology for each band. Install the UAP-AC-HD-US access point inside or outdoors (covered) using the included wall or ceiling mount kits. Once installed, the dual PoE compliant Gigabit Ethernet ports make it easy to connect the AP to the network without the need for a standalone power source.

    • 802.11ac Technology

    Initial 802.11ac Wave 1 SU MIMO (Single-User, Multiple Input, Multiple Output) technology allows an earlier-generation AP, such as the UniFi AC Pro AP, to communicate with only one client at a time. 802.11ac Wave 2 MU MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 AP, such as the UniFi AC HD AP, to communicate with multiple clients at the same time – significantly increasing multi-user throughput and overall user experience.

    • Powerful Hardware

    The UniFi AC HD AP features the latest in Wi-Fi 802.11ac Wave 2 MU-MIMO technology.

    • Expandable

    Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a five pack) and expand to thousands while maintaining a single unified management system.

    • Wireless Uplink

    Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology.


    Model: US-8-150W

    The US-8-150W UniFi Managed PoE+ Gigabit 8 Port Switch with SFP from Ubiquiti Networks it is easy to expand the capacity and reach of an existing network. This switch features 8 Gigabit Ethernet ports along with 2 SFP ports making it easy to incorporate high speed local storage networks into the configuration. In addition to Gigabit Ethernet connectivity, the network ports support 802.3af/at PoE networking standards designed to power devices such as VoIP phones, access points, IP cameras, and more.

    • PoE+

    The UniFi Switch models are available with 8 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V passive PoE to simplify your infrastructure. By default, the UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V passive PoE devices, manually enable 24V passive PoE using the UniFi Controller software.

    • Versatile Port Configuration

    Eight Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

    • Sleek Design and Management

    The compact UniFi Switch can be placed on a desktop and integrates with the UniFi Controller software for centralized management of your UniFi devices.

    • Advanced Enterprise Switching

    The UniFi Switch supports 802.1X authentication, dynamic and static VLAN tagging, port isolation, storm control, and guest control.

    Model: UAP-AC-HD-US

    • 802.11ac Wave 2 Wi-Fi Standards
    • 2 x 10/100/1000 Ethernet Ports
    • 2.4 Ghz Radio Rate 800 Mbps
    • 5 Ghz Radio Rate 1733 Mbps
    • 4x4 Spatial Streams
    • UniFi Controller Software
    • Integrated Omni Antennas
    • Indoor/Outdoor
    • Guest Portal/Hotspot Support
    • 802.3at PoE+
    • Passive Power over Ethernet
    • 500+ Concurrent Clients
    • Reset Button
    • CE, FCC, IC Certified


    Model: US-8-150W

    • (8) Gigabit RJ45 Ports
    • (2) SFP Ports
    • Non-Blocking Throughput: 10 Gbps
    • Switching Capacity: 20 Gbps
    • Forwarding Rate: 14.88 Mpps
    • Maximum Power Consumption: 150W
    • Supports PoE+ IEEE 802.3at/af and 24V Passive PoE
    • Quiet, Fanless Operation
    • Rackmountable with Rack-Mount Brackets (Included)
    • Desktop-Mountable (Do not physically stack the US-8-150W.)
