LBE-5AC-LR-US

Ubiquiti

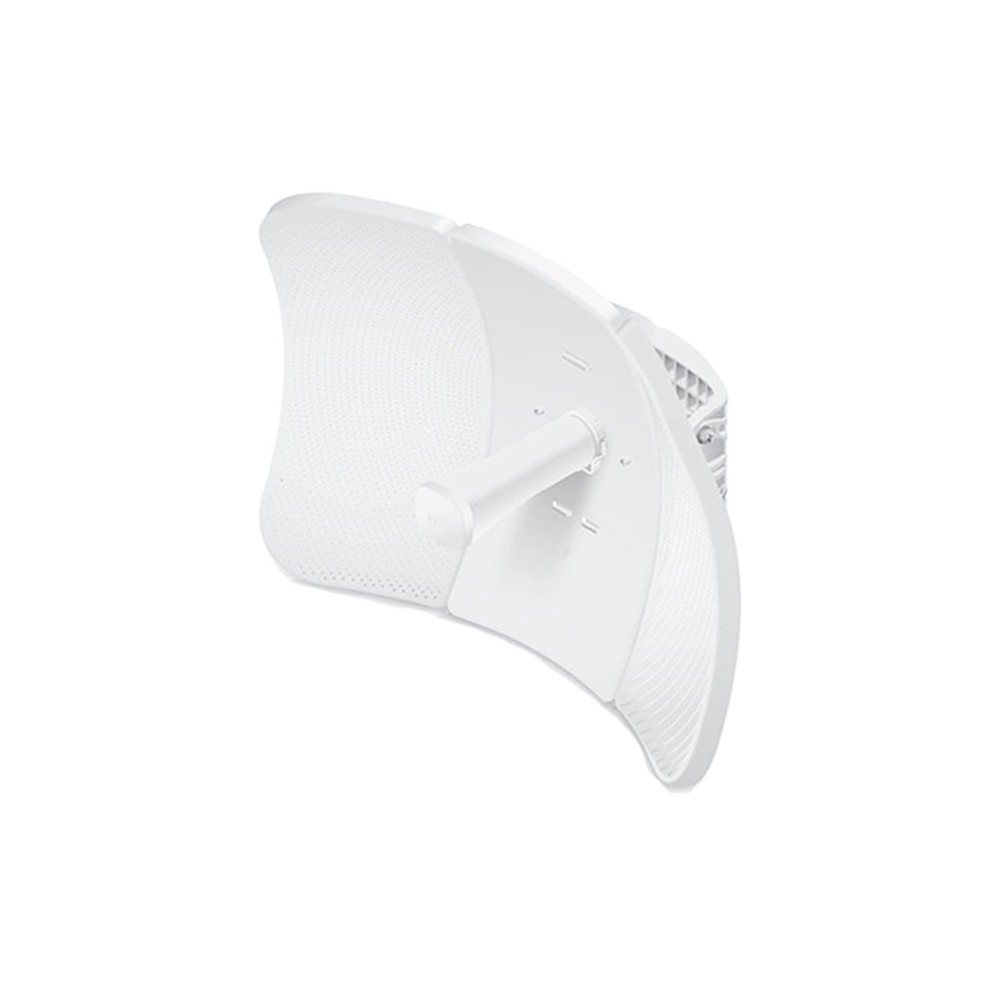

Ubiquiti Networks LBE-5AC-LR-US 5GHz LiteBeam ac Long-Range 26dBi US



Product Highlights
  • Improved Radio Design
  • Improved Mounting
  • Improved Surge Protection
  • Management WiFi/Radio/UISP mobile app
  • Model#: LBE-5AC-LR-US

    Sku: IT3545



    MSRP: $119.99

    In Stock

    Your Price: $119.99






    Model: LBE-5AC-LR-US

    5GHz LiteBeam ac Long-Range 26dBi

    Designed for long-range applications, the Ubiquiti airMAX LiteBeam 5AC LR features a larger reflector size and elevation adjustment (azimuth is adjusted by rotation around the pole).

    Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer Premises Equipment), the LiteBeam® 5AC Gen 2, with dedicated Wi-Fi management. Improved Noise Immunity The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. The LiteBeam 5AC Gen 2 offers quick and easy alignment and enhanced protection against power surges.



    Features:

    • Lightweight, Low-Cost Solution
    • Full Adjustment Flexibility
    • Quick Assembly and Installation

    Specifications LBE-5AC-LR-US

    Dimensions 512.5 x 385.75 x 258.3 mm
    (20.18 x 15.19 x 10.17")
    Weight
    Without Mount
    With Mount
    1.360 kg (2.998 lb)

    1.735 kg (3.825 lb)
    Power Supply 24V, 0.3A Gigabit PoE Adapter (Included)
    Max. Power Consumption 7W
    Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
    Supported Voltage Range 24V ± 10%
    Gain 26 dBi
    Networking Interface (1) 10/100/1000 Ethernet Port
    Processor Specs MIPS 74Kc
    Memory 64 MB DDR2
    LEDs Power, Ethernet
    Channel Sizes PtP Mode  10/20/30/40/50/60/80 MHz
    PtMP Mode 10/20/30/40 MHz
    Enclosure Characteristics Reflector (Aluminum) / Plastic: PC
    Mounting Pole-Mounting Kit (Included)
    Wind Loading 550 N @ 200 km/h (123.6 lbf @ 125 mph)
    Wind Survivability 200 km/h (125 mph)
    ESD/EMP Protection ± 24 kV Contact / Air
    Operating Temperature -40 to 70° C (-40 to 158° F)
    Operating Humidity 5 to 95% Noncondensing
    Certifications CE, FCC, IC
    Operating Frequency (MHz)
    Worldwide 5150 - 5875
    US/CA U-NII-1: 5150 - 5250 U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850
    Management Radio (MHz)
    Worldwide 2412 - 2472
    US/CA 2412 - 2462

    Datasheet

    PDF File Ubiquiti Networks LBE-5AC-LR-US 5GHz LiteBeam ac Long-Range 26dBi US
