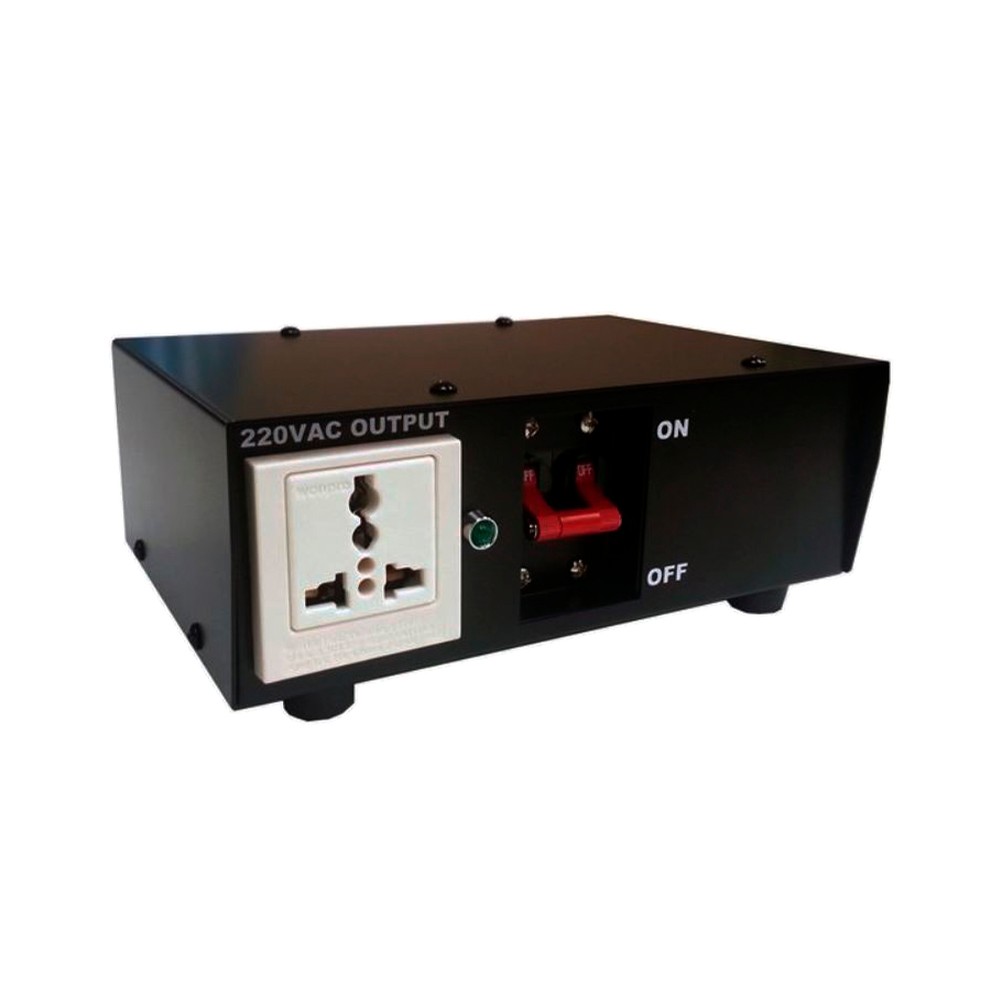

Tycon TP-VC277-220VAC 400W Voltage Converter 277VAC to 220VAC with Circuit Breaker/Disconnect Switch

TP-VC277-220VAC

Tycon Power Systems
Tycon Power Systems TP-VC277-220VAC 400W Voltage Converter 277VAC to 220VAC with Circuit Breaker/Disconnect Switch


Product Highlights
  • 277VAC to 220VAC Voltage Converter with Circuit Breaker/Disconnect Switch
  • Supports up to 400W out, 4.5A Input Circuit Breaker
  • 277-280VAC Wire Terminal Input, Universal 220VAC out Connector
  • Maximum out Current = 1.8A
  • Applications: Light Pole Powered Surveillance and Wireless; Light Pole Powered Outdoor UPS Systems; Led Lighting Systems
  • Model#: TP-VC277-220VAC

    Sku: IT3531.2865.101163



    MSRP: $199.99

    In Stock

    Your Price: $199.95




    The TP-VC277-220VAC voltage converter changes 277VAC to 220VAC 400W.

    277VAC is a voltage commonly found on light poles, including light poles on streets and parking lots. This voltage is typically too high to run common equipment such as outdoor UPS systems, security cameras and wireless equipment. By converting the voltage to 220VAC, most common equipment can be powered.

    The TP-VC277-220VAC provides a respectable 400W output. The voltage converter has an integrated circuit breaker to protect against short circuits and other current overloads. It operates over a wide temperature range making it suitable for industrial applications.

    The TP-VC277-220VAC is compatible with Tycon TP-BC series of battery chargers. It is also compatible with Tycon’s 300W Outdoor UPSPro Systems like UPS-ST12-200, UPS-ST24-100 or UPS-ST48-50.

    • Input Voltage 277-280VAC 50/60Hz
    • Input Current 1.5A @ 277VAC at Full Load
    • Input Connector Wire Terminal
    • Output Voltage 220VAC 50/60Hz
    • Output Power 400W
    • Minimum Output Current 0A
    • Maximum Output Current 1.8A
    • Output Connector Universal AC Socket
    • Input Breaker Rating 4.5A
    • Load Regulation 5%
    • Efficiency >97%
    • Operating Temperature -20 to +60C (-4 to +140°F)
    • Operating Humidity (RH) Up to 90% (non condensing)
    • Storage Temperature -25 to +85°C (-13 to +185°F)
    • Storage Humidity Up to 90% (non-condensing)
    • Dimensions (LxWxH) 197 x 125 x 67mm (7.8 x 4.9 x 2.6”)
    • Weight 2.5kg (5.6lb)
