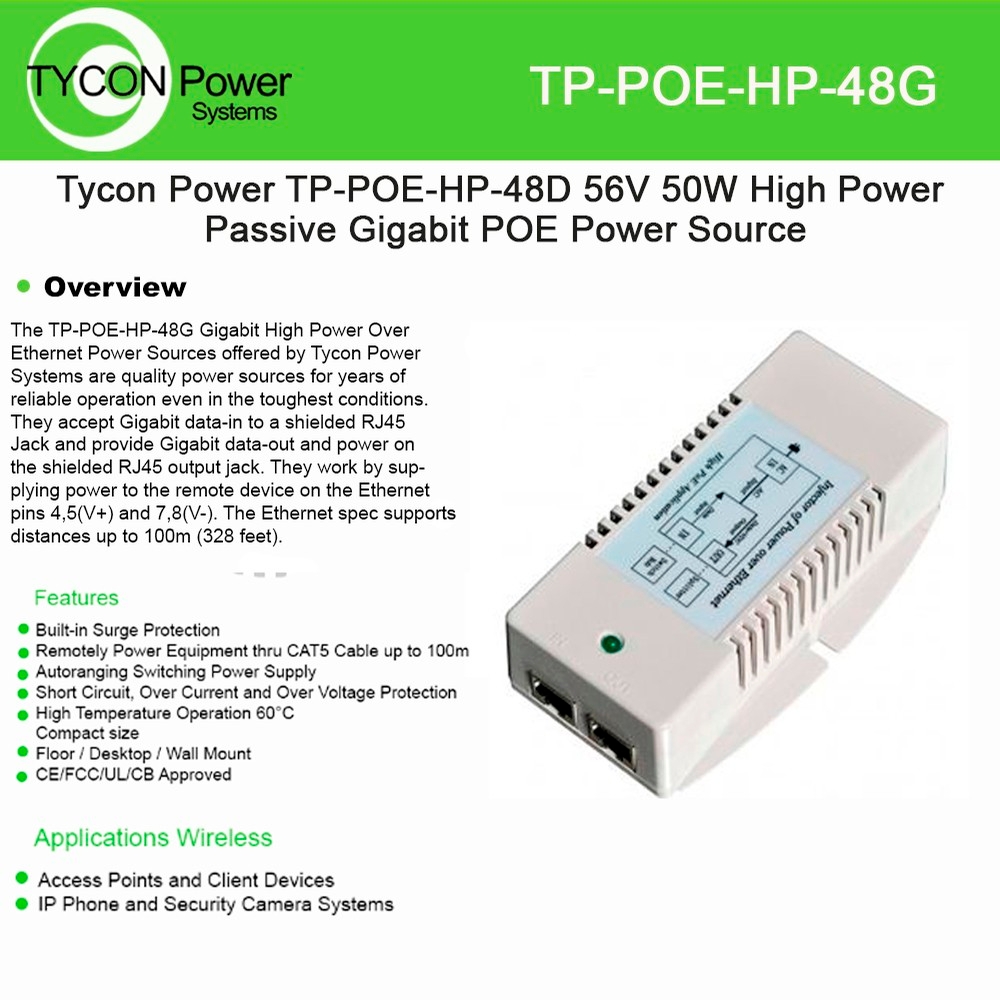

The TP-POE-HP-48G Gigabit High Power Over Ethernet Power Sources offered by Tycon Power Systems are quality power sources for years of reliable operation even in the toughest conditions.
They accept Gigabit data-in to a shielded RJ45 Jack and provide Gigabit data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet).
The TP-POE-HP are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply 5% regulated 48V DC voltage at 50W on the output. They have various protections for surge, short circuit and overload.
Remotely Power Equipment thru CAT5 Cable up to 100m
Autoranging Switching Power Supply
Short Circuit, Over Current and Over Voltage Protection
