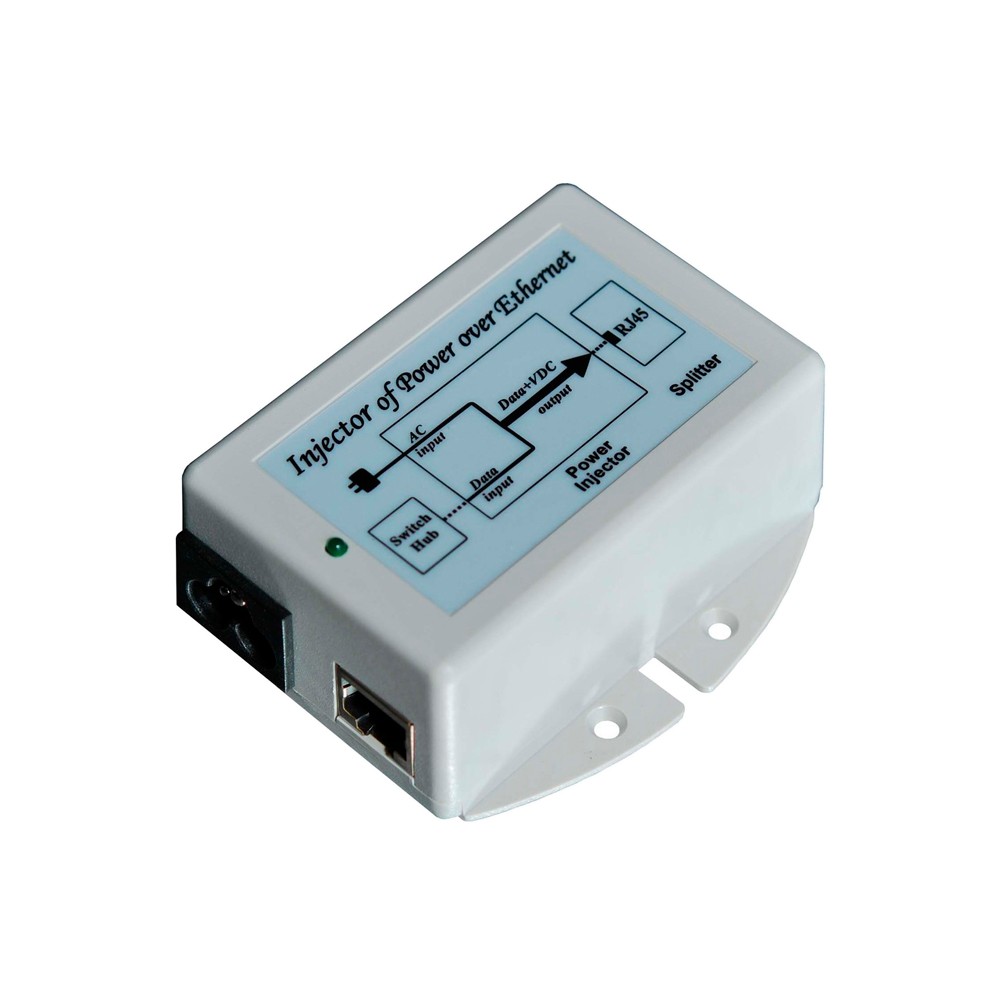

The TP-POE-48 Power Over Ethernet Power Source/Inserter offered by Tycon Power Systems are quality power sources for years of reliable operation even in the toughest conditions.
They accept data-in to a shielded RJ45 Jack and provide data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet).
The POE inserters have built in Ethernet surge protection which eliminates the need for a standalone Ethernet surge protector.
The TP-POE-48 are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated 24VDC at the output. They have various protections for surge, short circuit and overload.
Output is 48VDC with load regulation within 5%.
Remotely Power Equipment thru CAT5 Cable up to 100m
Autoranging Switching Power Supply
Short Circuit, Over Current and Over Voltage Protection
