nsm5 us

Ubiquiti


Ubiquiti Networks NanoStation M5 NSM5 US 5GHz 16dBi MIMO AirMax TDMA - US Version


Model#: nsm5 us

Sku: IT3506



MSRP: $149.99


Out of stock

Model: NSM5-US (US Version)

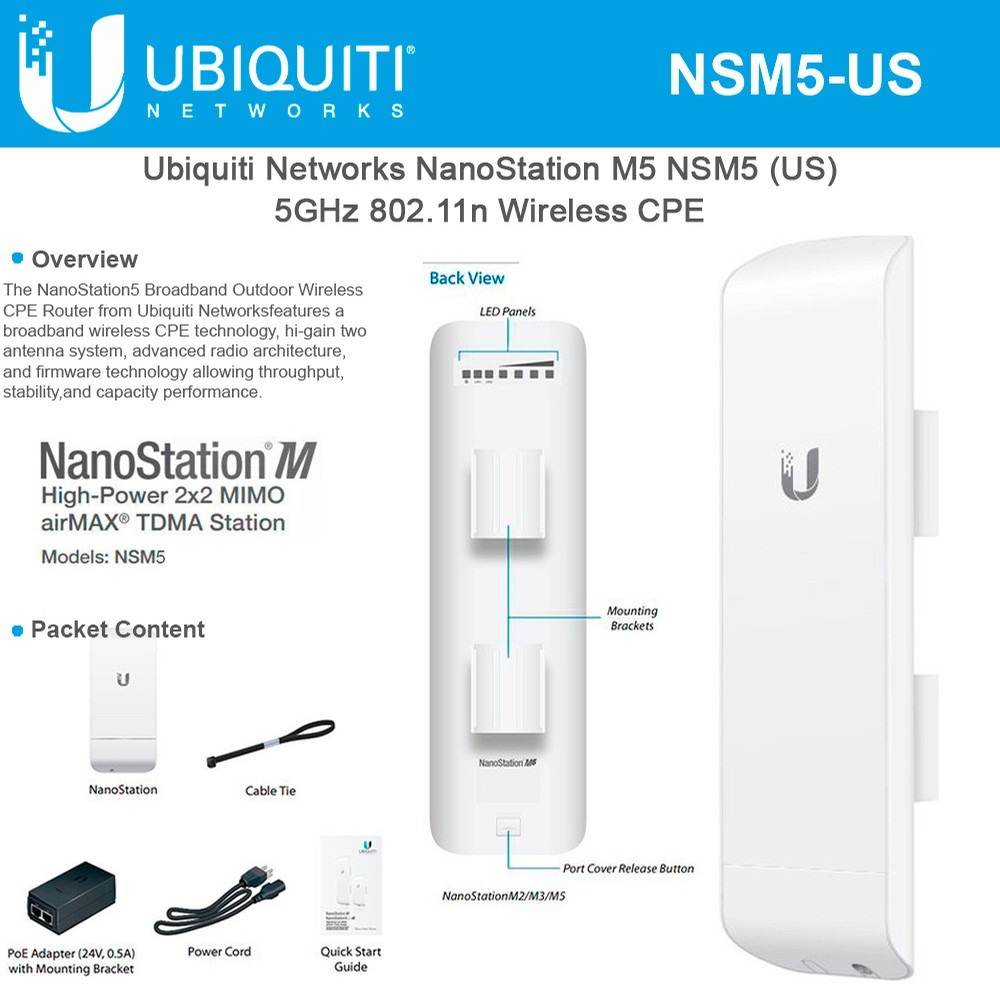

NanoStation M Indoor/Outdoor airMAX CPE

Featuring a panel antenna and dual-polarity performance, the NanoStation M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.

NanoStation NSM5: 5GHz 802.11g/n hi-power (27dBm) 2x2 MIMO airMAX TDMA PoE station. This is the ultimate 5 Ghz wireless outdoor CPE with integrated 14dBi dual polarity anten5na.


  • Compact CPE Design

The NanoStation M features the CPE design that expanded the global Wireless ISP industry.

  • Versatile Application Use

The NanoStation M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX® CPE.

  • Dual Ethernet Connectivity

With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.

  • Powerful airOS Features

Ubiquiti’s versatile airOS firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration, and system management services.

Model: NSM5-US

  • Operation mode AP, Client, WDS

  • Frequence 5,4 - 5.825 GHz

  • DHCP yes

  • Transmission speed 300 Mbps

  • Standards 802.11a/n

  • Chipset Atheros

  • TX Power regulation yes

  • Max.output power 27 dBm

  • Sensitivity -96 dBm

  • Modulation OFDM

  • Encryption WEP 64/128/152, WPA, WPA2, 802.1X

  • LAN port 2x RJ45 10/100 Mbps

  • Default IP 192.168.1.20

  • Default name ubnt

  • Default password ubnt

  • Power supply 15 V, 0,8 A

  • Operational temperature -30 - 80 °C

  • Dimension 294 x 80 x 30 mm

  • Interface LAN, WiFI

  • Supported OS AirOS V

  • Polarization H/V

  • Radiating angle - H 43°/41°

  • Radiating angle - V 15°

  • Procesor MIPS 24KC, 400 MHz

  • RAM 32 MB

  • NAND 8 MB
