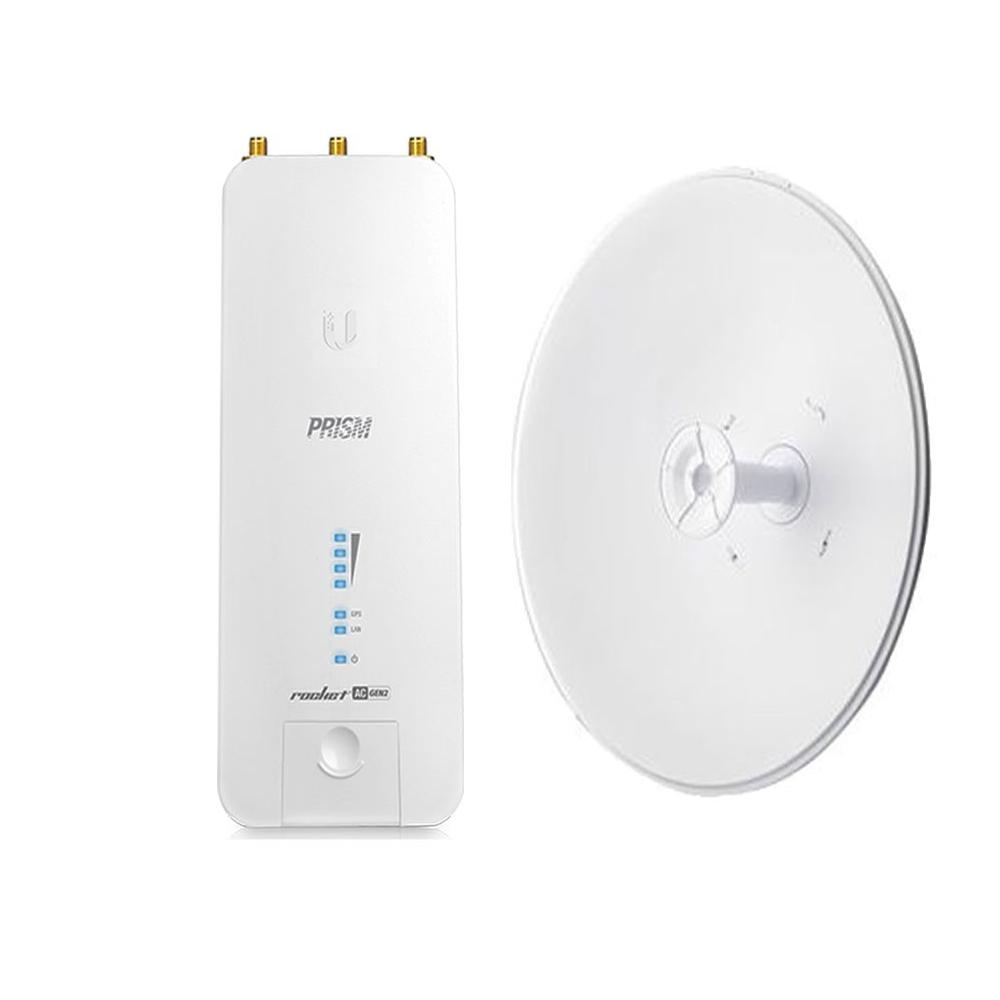

Ubiquiti airMAX RocketPrism 5AC Gen 2 BaseStation airPrism 11ac RP-5AC-Gen2 pair RocketDish airMax RD-5G30-LW 30dBi Lightweight Bridge Dish


Ubiquiti airMAX RocketPrism 5AC Gen 2 BaseStation 802.11ac RP-5AC-Gen2 features both airMAX ac and airPrism technologies pair with RocketDish airMax RD-5G30-LW 30dBi Lightweight Bridge Dish, powerful PtP bridging and network backhaul applications.

Product Highlights
  • Ubiquiti Rocket Prism ac Access Point RP-5AC-GEN2-US 5GHz Gen2 airPrism AC Radio BaseStation offers wireless performance in high-density areas
  • The Rocket Prism access points incorporate high-performance airMAX ac and airPrism technologies for maximum performance of wireless networks in high-density areas 5 GHz.
  • The Rocket Prism AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
  • Ubiquiti RocketDish RD-5G30-LW RocketDish LW RD-5G30-LW 30 dBi 5GHz Lightweight airMAX 2x2 MIMO PtP Bridge Dish Antenna
  • The RocketDish LW is a price/performance breakthrough for backhaul antenna technology.
  • Model#: RP-5AC-Gen2-US-BD19

    Sku: IT3503.5102.178723

    MSRP: $549.95

    Out of stock

    Your Price: $365.00

    • RP-5AC-Gen2-US (1 Unit)

    The RocketPrism 5AC Gen 2 features both airMAX ac and airPrism technologies for maximum wireless performance in high-density areas. The RP-5AC-Gen2 is an airMAX Rocket with airPrism, part of the wide selection of products from Ubiquiti Networks. This basestation operates on both 2.4 and 5GHz.

    The Ubiquiti Networks RP-5AC-Gen2 utilizes airPrism technology to provide breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments. Rocket Prism 5AC features EMI shielded metal housing, GPS, airPrism, circuitry, and the airView real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.

    • GPS for Superior Co-Location Performance

    Precise GPS frame synchronization enable co-located Rocket Prism 5AC Gen 2 radios to transmit and receive data without interfering with each other, allowing for better frequency reuse and increased network stability.

    • 5 GHz Frequency Band

    With plenty of available spectrum, this unlicensed band works well for long-distance links. The Rocket Prism 5AC Gen 2 features full-band 5 GHz coverage and maximizes output power for the US market, meeting strict OOBE requirements.

    • High Performance:

    Deploy the Rocket Prism 5AC Gen 2 for PtP or PtMP links in high RF noise environments to take full advantage of its design and capabilities

    • Gigabit Ethernet

    Delivers high throughput over its wired connection.


    • RD-5G30-LW (1 Unit)

    The RD-5G30-LW 30 dBi RD-5G30-LW RocketDish AirMax 5.1 to 5.9 GHz Carrier Class 2x2 MIMO PtP Bridge Dish Antennas from Ubiquiti Networks helps create powerful 2x2 MIMO Point-to-Point (PtP) bridging and network backhaul applications when paired with a Rocket M BaseStation (available separately). RocketDish Antennas and Rocket M radios have been designed to seamlessly work together. Installing Rocket M on RocketDish requires no special tools — you simply snap it securely into place with the universal Rocket mount built into the antenna. You can pair RocketDish with Rocket M GPS to utilize Ubiquiti AirSync GPS Synchronization technology. AirSync enhances the hardware and software of Rocket M to use GPS signals for precision timing.

    • Incorporating a dish reflector design for excellent beam directivity, the RocketDish antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.
    • RocketDish antennas and Rocket basestations have been designed to seamlessly work together. Every RocketDish has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of RocketDish and Rocket for your PtP application.


    • Innovative Industrial Design

    Weighing in at only 7.4 kg, the RocketDish LW is engineered with ruggedized yet lightweight components to withstand harsh outdoor conditions.



    RP-5AC-Gen2-US (1 Unit)

    • Interface (1) 10/100/1000 Ethernet Port
    • RF Connectors (2) RP-SMA (Waterproof ), (1) GPS* (Waterproof)
    • Processor Specs Atheros MIPS 74Kc
    • PtP Mode: 10/20/30/40/50/60/80 MHz
    • PtMP Mode: 10/20/30/40 MHz
    • Modes: Access Point, Station


    RD-5G30-LW (1 Unit)

    • 5.1 to 5.9 GHz Frequency
    • 30 dBi Gain
    • 5.8° Beamwidth
    • 30 dB F/B Ratio
    • 1.6:1 Max. VSVR
    • Dual-Linear Polarization
    • 35 dB Min. Cross-pol Isolation
    • Powerful Performance for Long-Range Links
    • Robust Design and Construction for Outdoor Use
    • Seamless Integration with Rocket Radios
    • Lightweight yet robust components lessen the load
    • The extended depth of the dish reflector rejects noise interference in co-location deployments
    • The design of the mounting bracket allows for ease of installation on a pole or tower
