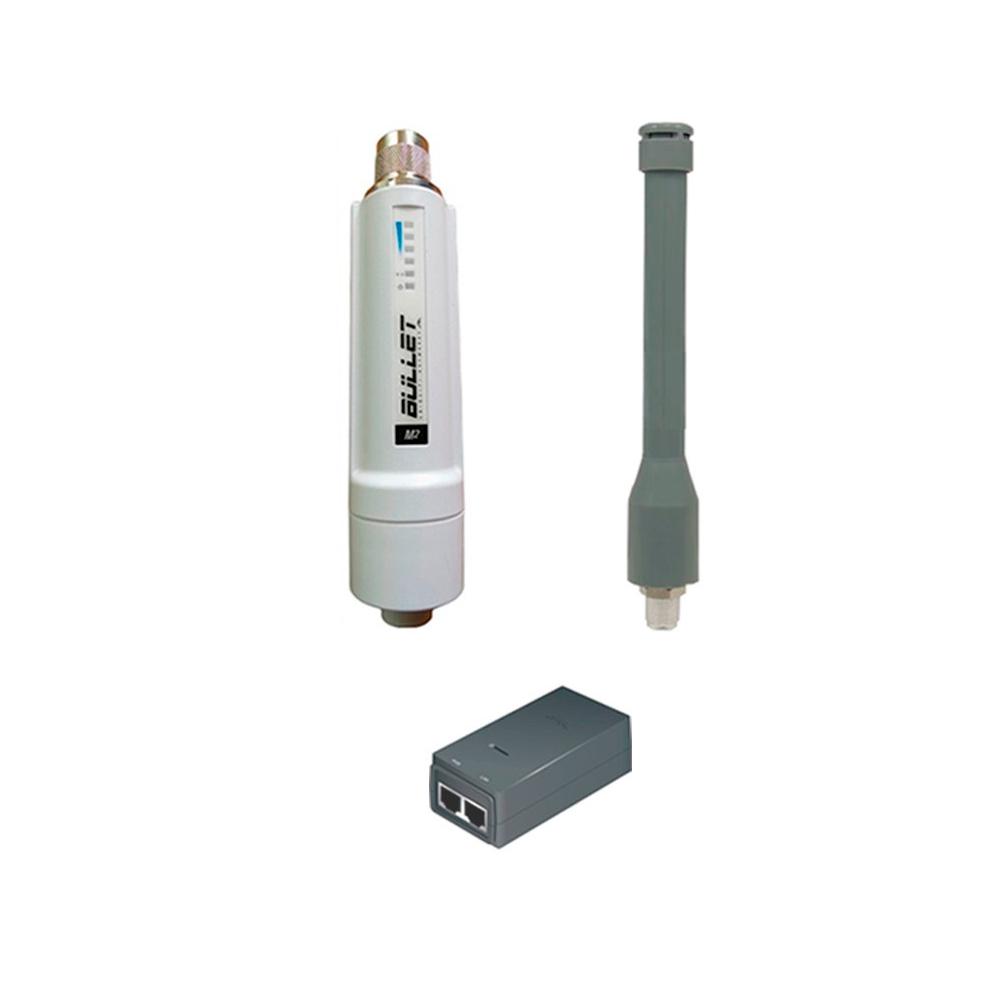

Ubiquiti Networks Bullet M2 BulletM2-HP airMAX Wireless Radio with PoE and Omnidirectional Antenna 9dBi

BM2HP+HG2409U-PRO

Ubiquiti
Ubiquiti Networks Bullet M2 BulletM2-HP airMAX Wireless Radio with PoE and Omnidirectional Antenna 9dBi


Product Highlights
  • Bullet M is the latest version of the popular Ubiquiti Bullet. Like its predecessor, Bullet M is a wireless radio with an integrated Type N RF connector that can be directly plugged in to any Antenna to create a powerful and robust outdoor Access Poi
  • The Bullet M features a signal strength LED meter for antenna alignment, a low-loss integrated N-type RF connector, and a robust weatherproof design.
  • With up to 600mW of power and enhanced receiver design, the Bullet M is ideal for long-distance links, capable of 100Mbps+ real TCP/IP speeds over multi-km distances
  • The HyperGain HG2409U-PRO is a Professional Grade Omni-Directional antenna that can be used for Commercial installations.
  • The antenna features high gain and superior VSWR. The unit is optimized for the 2.4GHz ISM band.
  • Model#: BM2HP+HG2409U-PRO

    Sku: IT3496.4320.151027



    MSRP: $277.99

    Out of stock

    Your Price: $139.95


    Model: BulletM2-HP-US

    Ubiquiti Networks Bullet M2 BulletM2-HP airMAX Wireless Radio

    Bullet M is the latest version of the popular Ubiquiti Bullet. Like its predecessor, Bullet M is a wireless radio with an integrated Type N RF connector that can be directly plugged in to any Antenna to create a powerful and robust outdoor Access Point, Client, or Bridge. The Bullet M features a signal strength LED meter for antenna alignment, a low-loss integrated N-type RF connector, and a robust weatherproof design. With up to 600mW of power and enhanced receiver design, the Bullet M is ideal for long-distance links, capable of 100Mbps+ real TCP/IP speeds over multi-km distances

    • Zero Variable Deployment

    Bullet M eliminates the need to use RF cables and requires no special antenna or tools to install. No radio card / host board issues. No RF cable quality concerns. No mechanical stability concerns. No enclosure mounting requirements. With the Bullet M, operators can just plug and go.

    • Integrated airMAX Technology

    The Bullet M can instantly become a powerful TDMA BaseStation utilizing Ubiquiti's breakthrough AirMax technology. With AirMax, PtMP networks can scale gracefully while maintaing high throughput and low latency performance.



    Model: AU24G9-HQ

    • Professional Grade

    The HyperGain HG2409U-PRO is a Professional Grade Omni-Directional antenna that can be used for Commercial installations. The antenna features high gain and superior VSWR. The unit is optimized for the 2.4GHz ISM band.

    • Superior Performance

    A collinear Omni-Directional antenna that utilizes a center fed Collinear Dipole array that offers superior performance over the traditional bottom fed collinear designs. A center fed collinear has radiating elements that are more uniformly fed with signals of the proper amplitude and phase. In a bottom fed design, the signals that reach the upper elements have undergone significant amplitude and phase degradation. In most cases, the upper elements of an end fed design contribute little to the antennas final composite gain and pattern. In the HyperGain HG2409U-PRO, an internal copper hard-line provides a low loss path to the antenna's central splitting and phasing component. The brass radiating elements of the HG2409U-PRO utilize an air dielectric for lowest loss and superior radiating efficiency. The design is factory tuned for superior performance.

    • Rugged and Weatherproof

    This antenna's construction features a durable fiberglass radome for durability and aesthetics. Its mounting system features twin heavy-duty mounting brackets and U-Bolts for superior strength. The thick brass elements provide long life in hostile environments.

    Model: BulletM2-HP

    • 2.4 GHz Operating Frequency
    • 100+ Mbps Throughput
    • 400 MHz Atheros MIPS 24KC Processor
    • Passive PoE Compatible
    • -Zero Variable Deployment
    • Eliminates the need to use RF cables and requires no special antenna or tools to install
    • No radio card / host board issues
    • No RF cable quality concerns
    • No mechanical stability concerns
    • No enclosure mounting requirements
    • Plug-and-Play; to any existing antenna with an N-type female connector to create an AirMAX base station
    • RoHS compliance
    • -Integrated AirMax Technology
    • Utilizing Ubiquiti's AirMax technology, the radio can instantly become a powerful TDMA BaseStation
    • With AirMax, PtMP networks can scale smoothly while maintaining high throughput and low latency performance



    Model: AU24G9-HQ

    • Frequency Range    2400-2500 MHz
    • Bandwidth    100 MHz
    • Gain    9 dBi
    • Polarization    Vertical
    • Vertical Beamwidth    12 Degrees
    • Horizontal Beamwidth    360 Degrees
    • VSWR    <1.5:1
    • Impedance    50 Ohm
    • Maximum Power    100 Watts
    • Connector    Integral N Female
    • Dimensions    ∅1.7x34 Inches (∅43x864 mm)
    • Mast Diameter    1.5 - 2.1 Inches (30 - 53.3 mm)
    • Weight    2.6 Lbs. (1.2 Kg)
    • Temperature Range    -40° - 185°F (-40° - 85°C)
    • Lightning Protection    DC Short
