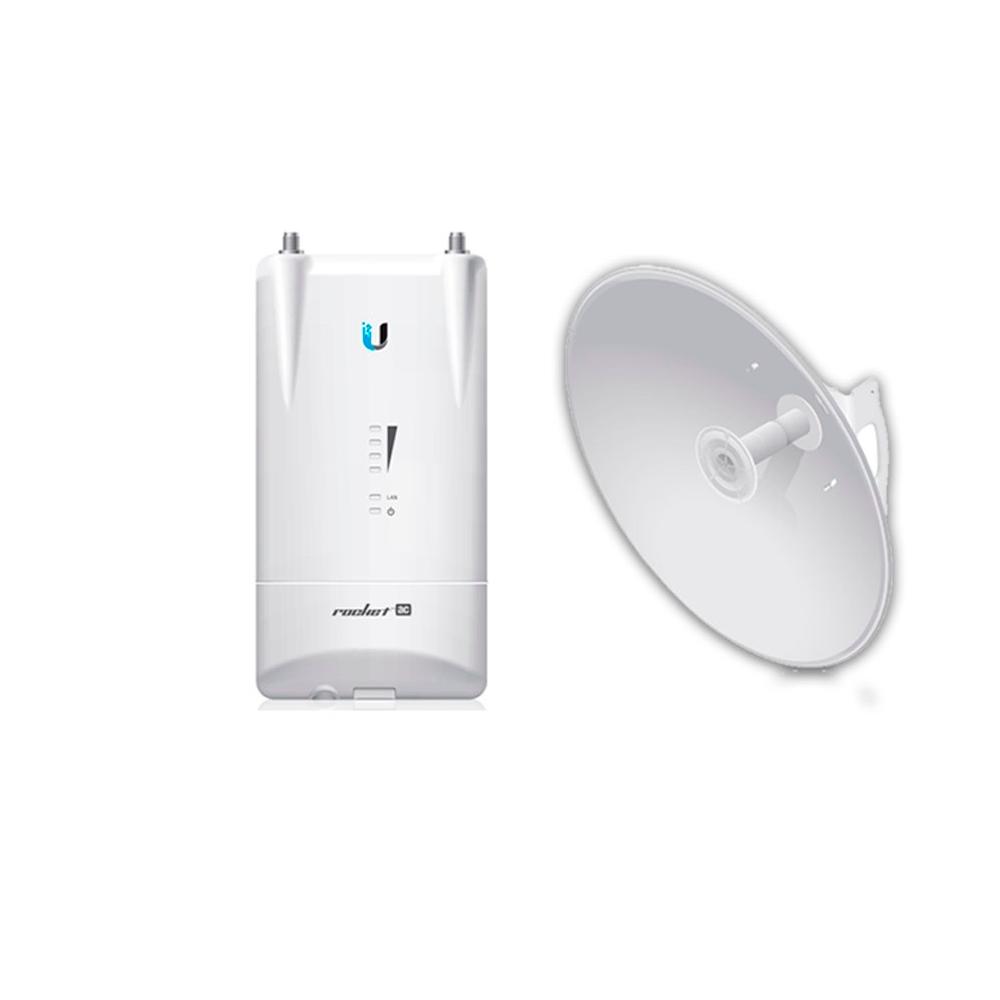

The R5AC-LITE rocket ac airMAX ac BaseStation from Ubiquiti Networks uses airMAX ac technology to provide up to 450 Mbps throughput. With an outdoor UV stabilized plastic enclosure this BaseStation can be installed in some of the harshest conditions allowing for the data signal to reach greater distances. Inside the enclosure you will find a 720 MHz Atheros MIPS 74Kc processor complete with 128MB of DDR2 RAM and 16MB of NOR Flash memory for enhanced processing power to allow for a stronger more stable signal.
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
The innovative airMAX ac antennas feature significant advances in beam and energy isolation performance for increased capacity of airMAX networks.
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
airOS 8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
RocketDish LW airMAX 2x2 PtP Bridge Dish Antenna
The RocketDish Antenna delivers 2x2, dual-polarity performance. On the right is one example of how the RocketDish with Rocket can be deployed in a backhaul link to deliver bandwidth from an ISP network out to a neighborhood tower. From there, an airMAX Sector with Rocket delivers bandwidth to the ISP’s customers.
Incorporating a dish reflector design for excellent beam directivity, the RocketDish antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.
Weighing in at only 7.4 kg, the RocketDish LW is engineered with ruggedized yet lightweight components to withstand harsh outdoor conditions.
The IsoBeam enhances isolation performance for co-location and features an integrated protective radome.
The Precision Alignment Kit enables extremely accurate aiming for optimal link performance.
Dimensions 162 x 84 x 37 mm (6.38 x 3.31 x 1.46")
Weight 250 g (8.81 oz)
Enclosure Characteristics Outdoor UV Stabilized Plastic
Processor MIPS 74Kc
Memory 128 MB DDR2 SDRAM, 16 MB NOR FLASH
Networking Interface (1) 10/100/1000 Mbps
RF Connections (2) RP-SMA (Waterproof)
LEDs Power, Ethernet, (4) Signal Strength
Max. Power Consumption 8.5W
Power Supply 24V, 0.5A Gigabit PoE Adapter
