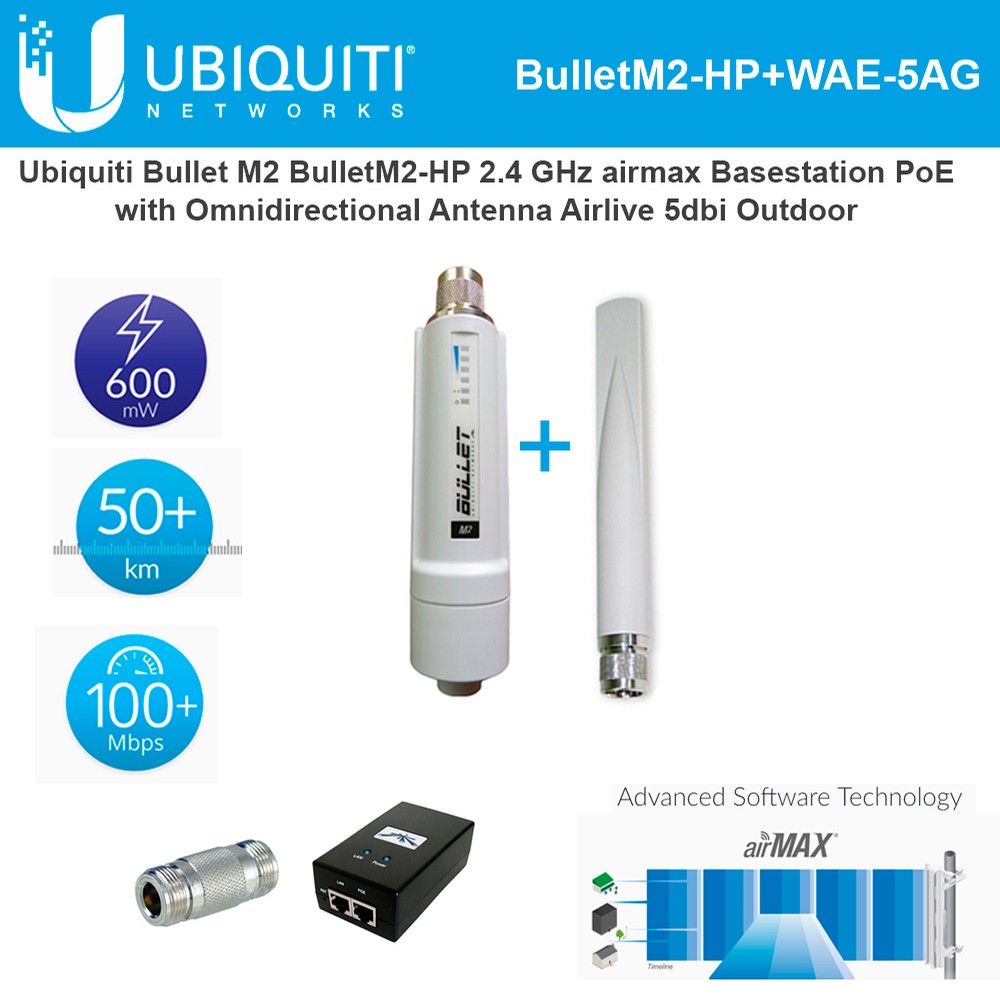

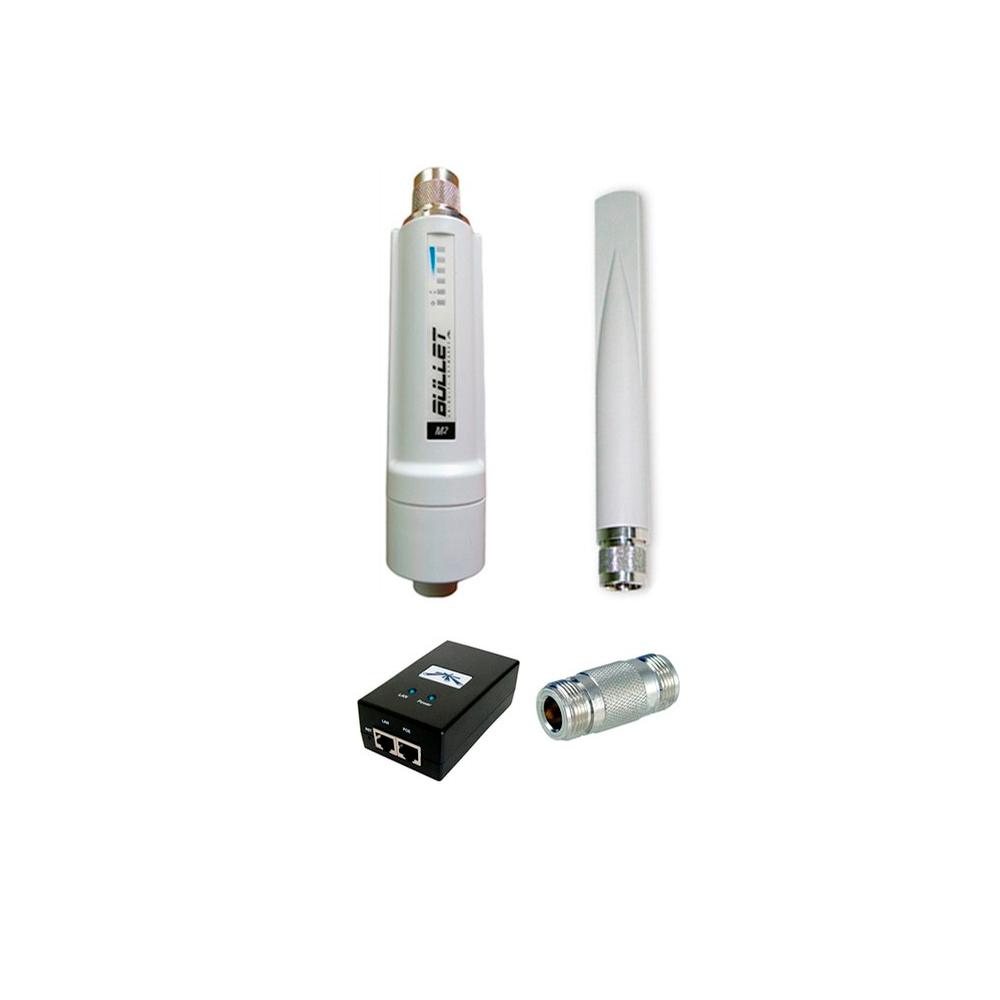

Ubiquiti BulletM2-HP airMAX Radio w/ 5dbi omni antenna BM2HP 600mW Bullet M2HP PoE included PtP/PtMP
Product Highlights
Model#: BulletM2-HP+WAE-5AG
Sku: IT3490
MSRP: $189.99
Out of stock
Model: BulletM2-HP US
The 2.4 GHz High Power Bullet Access Point from Ubiquiti Networks is designed for outdoor use and has an Atheros MIPS 74KC, 2.4 GHz processor. It features 16MB SDRAM, 4MB flash, a networking interface of 10/100 BASE-TX (Cat5, RJ-45), passive power over Ethernet and 10 to 24 VDC. The Access Point is equipped with an integrated N-type male jack RF connector (connects directly to antenna).Ubiquiti Bullet M2HP Plug and Go 100Mbps+ of REAL TCP/IP Throughput over outdoor multi-km links 2.4GHz Hi Power 802.11N Outdoor Radio System.
+
- AirLive WAE-5AG
The WAE-5AG is a 5dBi wireless antenna constructed of weather resistant material. It can operate in both 2.4GHz and 5GHz spectrum. This makes it ideal to work with Dual Band outdoor AP. The omni-directional(360 degree horizontal) coverage is suitable l for outdoor AP or multi-point Bridge use. The antenna is equipped with male N-Type connector for direct installation on the outdoor AP.
+
- Ubiquiti POE-24 12W
The POE-24 12W 24V PoE Adapter from Ubiquiti Networks powers a variety of Ubiquiti PoE devices belonging to the airFiber, airMAX, airVision, UniFi, and mFi series. This 24V adapter provides protection against surge, clamping, maximum surge discharge, peak pulse current, and ESD attacks.
- Powers Ubiquiti airFiber, airMAX, airVision, UniFi, and mFi PoE devices
- Protection against surge, clamping, maximum surge discharge, peak pulse current, and ESD attacks
- Provides earth grounding
- Compatible with Ubiquiti airGateway Access Points
- Remote reset capability with reset button
- Ubiquiti POE-24 24VDC 12W is an advanced power supply / power inserter.
+
-
L-com AXA-NFNF N-Female to N-Female Bullet Adapter
This Type N female coupler provides the ability to interconnect two devices with Type N male interfaces. A common use for this device is to change the gender of a device from Type N male to Type N female.
- Nickel plated body for enhanced corrosion resistance
- Gold plated center contact for reduced signal loss
- Handy device to have on hand to solve your interconnection problems
- Coaxial Extension
- Coaxial interface conversion
- OEM coax applications
- Coax retrofit applications
- Low-loss coax
BulletM2-HP
- 100Mbps+ of REAL TCP/IP Throughput over outdoor multi-km links
- Just Plug and Go.
- Processor Specs: Atheros SOC, MIPS 24 KC, 400MHz
- Memory Information: 32MB SDRAM, 8MB Flash
- Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
- Approvals: FCC Part 15.247, IC RS210, CE
- RoHS Compliance: YES
- RF Connector: Integrated N-type Male Jack (connects directly to antenna)
- Power Method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)
+
WAE-5AG
- Works in Both 5G and 2.4G frequency band
- Up to 7dB in 11a mode
- Up to 4.5dB in 11g/b mode
- For up to 1km distance
- Male N-Type Connector for Direct Installation on outdoor AP
- Design for AP+Bridge and Hotspot installations
+
POE-24 12W
- Carrier class power over ethernet system
- Auto ranging power supply/ inserter
- Built-in ethernet surge protection to prevent equipment damage
- Overload and short circuit protection
- Minimum cross talk and insertion loss
- Advanced switching technology ? runs cool
- Powers clients which accept power on unused ethernet pins 4,5,7,8
- FCC and CE approved
- Current indicator (CI) option available
- Applications
- Remote routers, access points and bridges
- Remote networking equipment
- SOHO equipment
- IP camera systems
- 400MHz to 10GHz systems
- IP phone systems
+
L-com AXA-NFNF
- Impedance 50 Ohms
- Frequency Range DC ~ 11 GHz
- Voltage Rating 1500 Volts Peak
- Dielectic Withstanding Voltage 2500 Volts RMS
- Insertion Loss .15 dB Max.
- Mating 5/8-24 UNEF Threaded Coupling
- Mating Torque 15 inch pounds (170 N.cm) Max.
- Body Nickel Plated Brass
- Contact Gold Plated Brass
- Insulator Delrin
- Temperature Range -55C(-67F) to +85C(+185F)
- Temperature Cycling MIL-Std. 202 Method 102 (Test Condition C)
- Weatherproof All N-Type Connectors are Weatherproof
- Moisture Resistance MIL-Std. 202 Method 106 (Test Condition B)
- Corrosion MIL-Std. 202 Method 101 (Test Condition C)
- Vibration MIL-Std. 202 Method 204 (Test Condition B)
- Altitude MIL-Std. 202 Method 105 (Test Condition C)
- RoHS Compliant Yes
