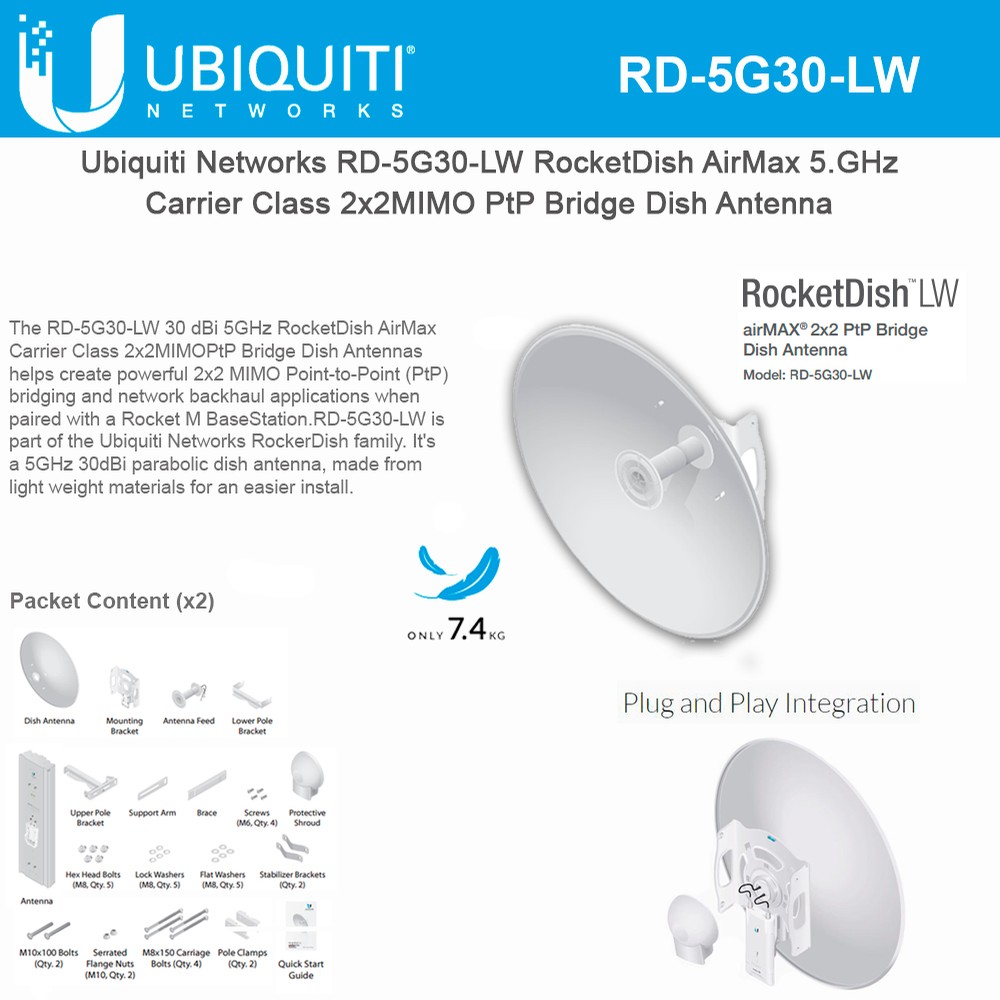

Ubiquiti RocketDish LW RD-5G30-LW 30 dBi 5GHz Lightweight airMAX 2x2 Point to Point Bridge Dish

RD-5G30-LW

Ubiquiti
Ubiquiti RocketDish LW RD-5G30-LW 30 dBi 5GHz Lightweight airMAX 2x2 Point to Point Bridge Dish Antenna


Product Highlights
  • Ubiquiti RocketDish LW RD-5G30-LW 30 dBi 5GHz Lightweight airMAX 2x2 Point to Point Bridge Dish Antenna
  • The RocketDish LW is a price/performance breakthrough for backhaul antenna technology.
  • Weighing in at only 7.4 kg, the RocketDish LW is engineered with ruggedized yet lightweight components to withstand harsh outdoor conditions.
  • The RocketDish LW has a built-in Rocket mount, so no tools are needed to install the Rocket BaseStation.
  • The IsoBeam enhances isolation performance for co-location and features an integrated protective radome.
  • Model#: RD-5G30-LW

    Sku: IT3486.2968.103464



    MSRP: $139.99

    In Stock

    Your Price: $109.00




    Model: RD-5G30-LW

    RocketDish LW airMAX 2x2 PtP Bridge Dish Antenna

    The RocketDish Antenna delivers 2x2, dual-polarity performance. On the right is one example of how the RocketDish with Rocket can be deployed in a backhaul link to deliver bandwidth from an ISP network out to a neighborhood tower. From there, an airMAX Sector with Rocket delivers bandwidth to the ISP’s customers.

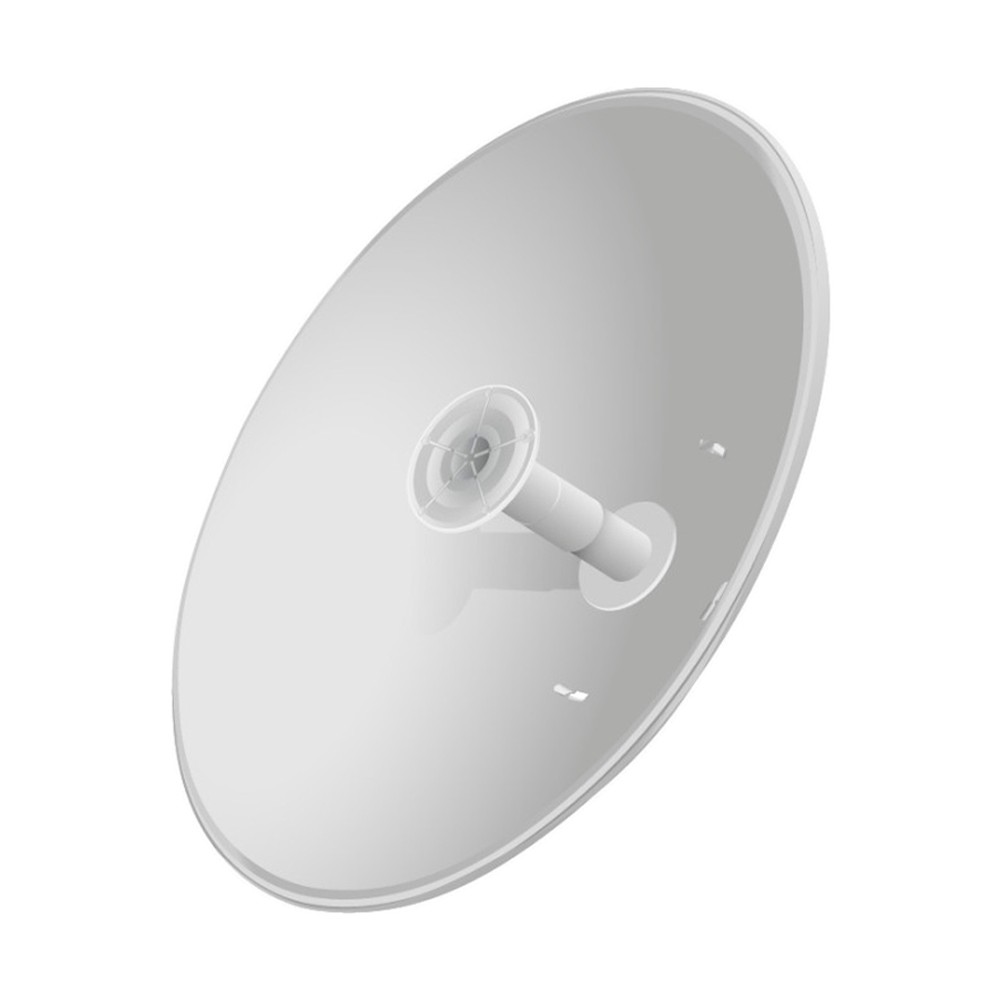

    Incorporating a dish reflector design for excellent beam directivity, the RocketDish antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.

    • Innovative Industrial Design

    Weighing in at only 7.4 kg, the RocketDish LW is engineered with ruggedized yet lightweight components to withstand harsh outdoor conditions.

    • Optional Isolator Radome

    The IsoBeam enhances isolation performance for co-location and features an integrated protective radome.

    • Optional Alignment Accessory

    The Precision Alignment Kit enables extremely accurate aiming for optimal link performance.

    • Dimensions

    650 x 650 x386 mm (25.6 x 25.6 x 15.2")

    • Weight

    7.4 kg (16.31 lb) (Mount Included)

    • Frequency

    5.1 - 5.9 GHz

    • Gain

    30 dBi

    • Max. VSWR

    1.6:1

    • Wind Survivability

    200 km/h (125 mph)

    • Wind Loading

    790 N @ 200 km/h (178 lbf @ 125 mph)

    • Polarization

    Dual Linear

    • F/B Ratio

    30 dB

    • ETSI Specification

    EN 302 326 DN2

    • Mounting

    Universal Pole Mount, Rocket Bracket, and
    Weatherproof RF Jumpers Included
