MGBLX1

Cisco

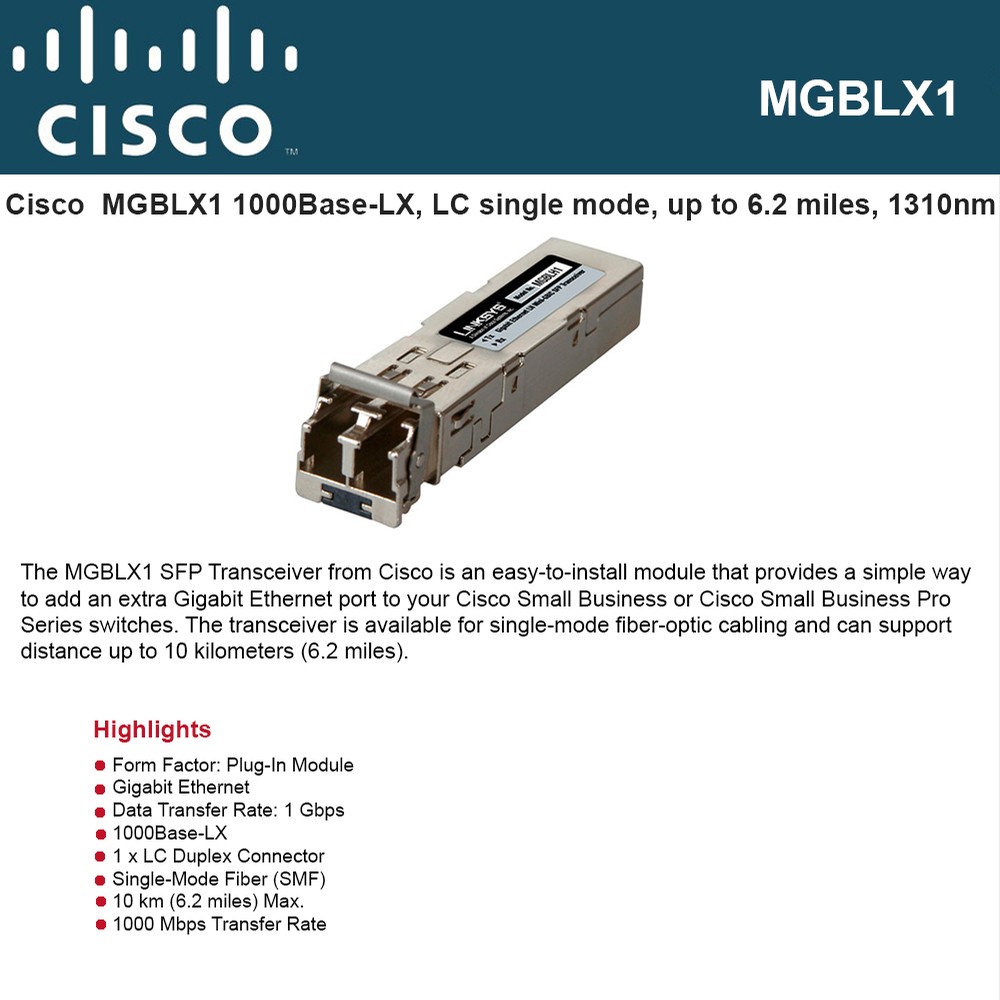

Cisco SB MGBLX1, SFP mini transceiver mod., 1000Base-LX, LC single mode, up to 6.2 miles, 1310nm


Model#: MGBLX1

Sku: IT3335



MSRP: $246.00


Out of stock

  • Cisco MGE Small Form-Factor Pluggable (SFP) is easy-to-install module that provides a simple way to add fiber connectivity or to add an extra Gigabit Ethernet port to your Cisco Small Business Series switches.

  • The Cisco MGE transceiver provides fast and reliable connectivity between switches that are located on different floors, in separate buildings, or on a small campus network needing connectivity between sites.

  • The transceiver can support both Fast and Gigabit Ethernet applications.

  • Built-in spring latch for easy module removal

  • Hot swappable

  • Low insertion-loss duplex LC receptacle

  • Low electromagnetic interference (FCC Part 15, Class B) for clear communications

  • Meets FDA and International Electrotechnical Commission (IEC) eye safety standards

  • Device Type: Sfp (Mini-Gbic) Transceiver Module

  • Form Factor: Plug-In Module

  • Connectivity Technology: Wired

  • Cabling Type: 1000base-Lx

  • Data Link Protocol: Gigabit Ethernet

  • Data Transfer Rate: 1 Gbps

  • Optical Wave Length: 1310 Nm

  • Max Transfer Distance: 6.2 Miles

  • Interfaces: 1 X Ethernet 1000base-Lx - Lc Single Mode X 2

  • Compatible Slots: 1 X Sfp (Mini-Gbic)

  • Compliant Standards: Vcci Class B Ite, Cispr 22 Class B, En 60950, En55022 Class B, Fcc Part 15 B, En 60825, Iec 60825-1, Fda

  • Width: 0.5 In

  • Depth: 2.2 In

  • Height: 0.4 In

  • Weight: 0.6 Oz

  • Min Operating Temperature: 32 °F

  • Max Operating Temperature: 158 °F

  • Humidity Range Operating: 10 - 85%
