SF300-24MP-K9-NA

Cisco

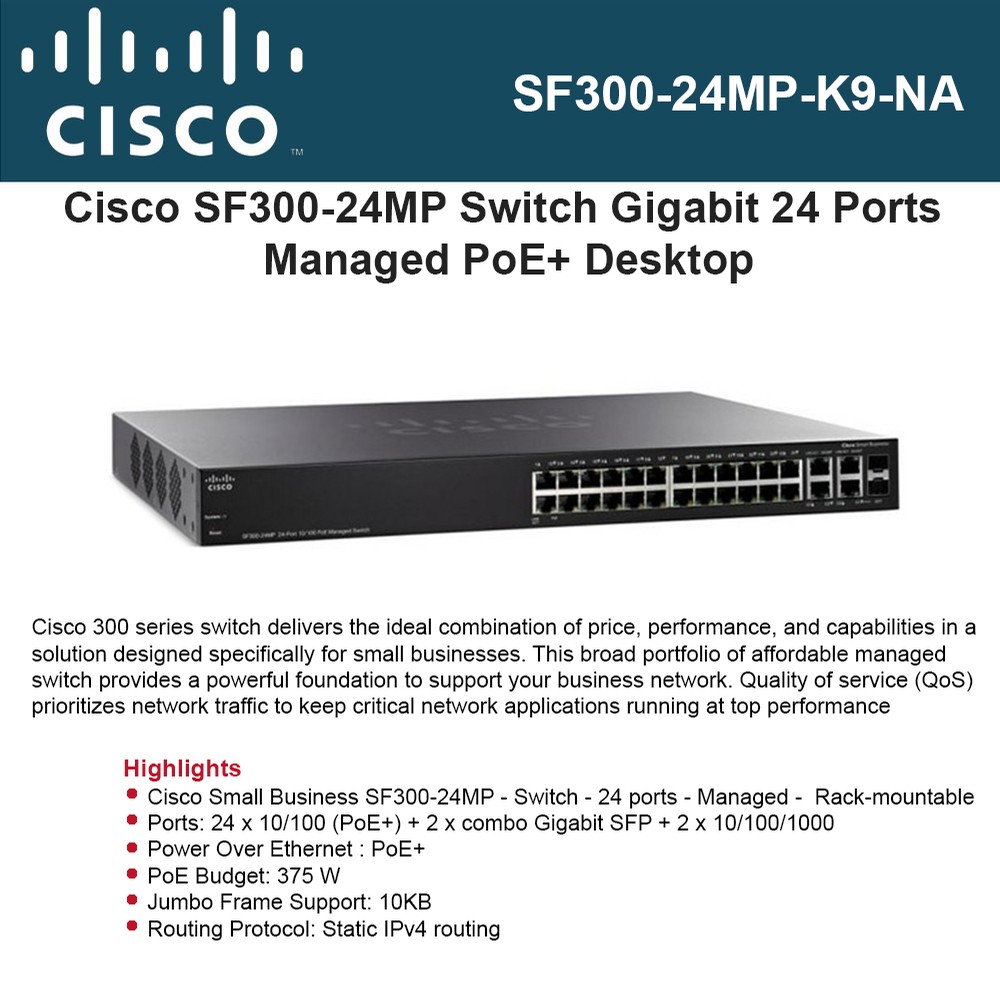

Cisco SF300-24MP Switch L3 managed 24-port PoE+ 375W


Model#: SF300-24MP-K9-NA

Sku: IT3299



MSRP: $799.00


Out of stock

  • Cisco 300 series switch delivers the ideal combination of price, performance, and capabilities in a solution designed specifically for small businesses.

  • This broad portfolio of affordable managed switch provides a powerful foundation to support your business network.

  • Strong security features include access control lists (ACLs), guest virtual LANs (VLANs), and other advanced security features to tightly control networks

  • IPv6 support allows you to move up to the next generation of networking applications and operating systems without an extensive equipment upgrade

  • Quality of service (QoS) prioritizes network traffic to keep critical network applications running at top performance

  • Static routing and Layer 3 IP routing between VLANs allows for communicating across VLANs without degrading application performance

  • Support of Energy Efficient Ethernet (EEE) and reduction of energy consumption by monitoring traffic and putting links into sleep mode during quiet periods

  • Power-saving technology allows switches to enter sleep mode, turn off unused ports, and adjust power as needed

  • Fanless design on several models allows switches to run silently and unobtrusively

  • LEDs can be turned off to save power

Product Description

  • Cisco Small Business SF300-24MP - switch - 24 ports - managed - desktop, rack-mountable

Device Type

  • Switch - 24 ports - L3 - managed

Enclosure Type

  • Desktop, rack-mountable 1U

Subtype

  • Fast Ethernet

Ports

  • 24 x 10/100 (PoE+) + 2 x combo Gigabit SFP + 2 x 10/100/1000

Power Over Ethernet (PoE)

  • PoE+

PoE Budget

  • 375 W

Performance

  • Switching capacity : 12.8 Gbps ¦ Forwarding performance (64-byte packet size) : 9.52 Mpps

Capacity

  • ACL rules : up to 512

MAC Address Table Size

  • 8K entries

Jumbo Frame Support

  • 10KB

Routing Protocol

  • Static IPv4 routing

Remote Management Protocol

  • SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI

Features

  • Layer 3 switching, layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping

Compliant Standards

  • IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at

Power

  • AC 120/230 V ( 50/60 Hz )

Dimensions (WxDxH)

  • 17.3 in x 13.8 in x 1.8 in

Weight

  • 11.2 lbs

Localization

  • Chinese (simplified), English, German, French, Italian, Spanish, Japanese / North America

Manufacturer Warranty

  • Limited lifetime warranty
