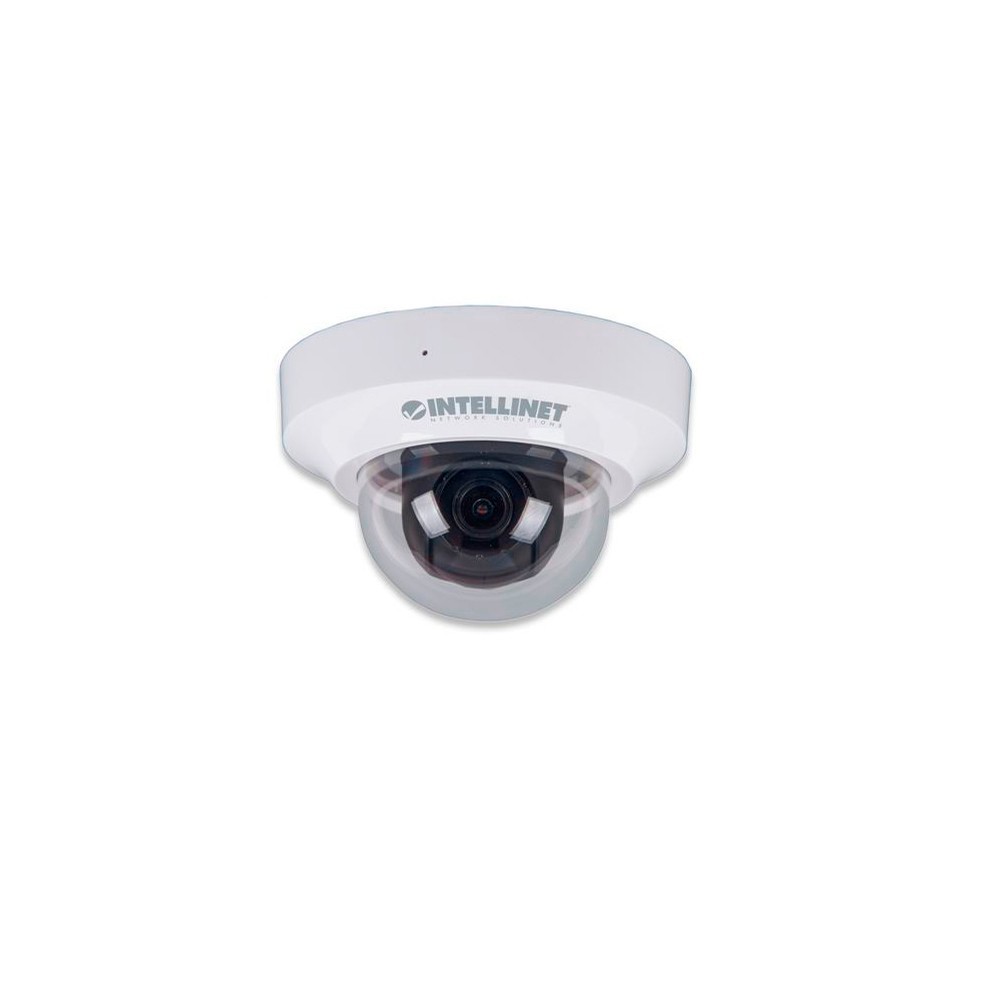

The Intellinet IDC-862 HD Network Mini-Dome Camera is designed for discreet indoor security surveillance and comes fully equipped with state-of-the-art features that set it apart from other network cameras on the market today.
The IDC-862 Mini-Dome is equipped with a 2-megapixel sensor that generates crystal-clear images up to 1920 x 1080 pixels for much more detailed and realistic video. Thanks to progressive-scan image technology, the jagged lines caused by conventional interlacing image sensors (sometimes seen as a flickering effect on moving objects) have been all but eliminated.
The Intellinet IDC-862 Network Dome Camera provides outstanding video quality while consuming less network bandwidth thanks to integrated H.264 video compression. The IDC-862 Network Dome Camera also supports MPEG4 and Motion-JPEG video formats, as well as 3GPP mobile phone streaming for easy on-the-road connectivity with your compatible smartphone.
With a diameter of less than 10 cm (4 in.), the Intellinet IDC-862 is one of the smallest network dome cameras on the planet (to put it in perspective, modern smart phones at a length of 13 cm (5 in.) are actually larger). Discreet and unobtrusive yet powerful and loaded with features, that's what the IDC-862 Mini-Dome camera stands for.
WDR stands for Wide Dynamic Range and allows the Intellinet network dome cameras to capture video in areas with high contrasting objects; e.g., extremely bright and extremely dark. In a normal camera, if an object in a darker area of the image frame is next to a bright area — for example, a person in a shadow is next to an area with bright sunlight — then the person in the shadow would be very dark to the point of becoming indistinguishable from the background. The human eye, by contrast, can handle these differences much better. With WDR, the dynamic range of the camera is greatly enhanced. As a result, you can now clearly see the person in the shadow while the rest of the frame is still correctly exposed, just as if it was seen through the human eye.
The Intellinet IDC-862 Megapixel Mini-Dome Camera is powered via the IEEE 802.3af standard. Simply plug the camera into a PoE-compliant switch or injector (not included) and begin transmitting power as well as data over the Cat5e or Cat6 network cabling. The camera's low power usage of just 5 watts allows it to be operated with regular IEEE 802.3af-compliant PoE injector.
The IDC-862 is equipped with an internal MicroSD/SDHC memory card slot, allowing the camera to store videos and images even if a connection to the NVR is down. In addition, video can be submitted via e-mail, uploaded to an FTP server, or stored directly on a shared network drive (NAS Samba/CIFS/SMB share).
The Intellinet IDC-862 Network Mini-Dome Camera offers a secure network connection via data encryption between the camera and the network client.
Progressive-Scan 2-megapixel CMOS image sensor for crystal-clear images
Supports image resolutions up to 1920 x 1080 (1080p)
Excellent image quality with 30 fps full-motion video in all image resolutions
Ultra-compact, less than 10 cm (4 in.) in diameter
MicroSD memory card slot for local storage
Two-way audio with integrated microphone
Wide Dynamic Range (WDR) automatically adjusts to deliver high-quality video even in the most difficult lighting conditions
Supports low light conditions, minimum 0.2 lux
Supports multiple simultaneous H.264, MPEG4, Motion-JPEG and 3GPP video streams
Supports IEEE 802.3af Power over Ethernet injectors, mid- and endspans
10x digital zoom
3-axis rotation for easy camera angle adjustment
Event-triggered FTP and e-mail upload of still images and videos
Integrated motion detection with pre- and post-alarm image/video buffering
Supports local network storage: Can write video clips directly to a network attached storage (NAS) drive
NAS storage supports cyclic recording, automatically overwriting older files once the allocated storage space is exceeded
Supports SMB/CIFS (Windows) and NFS (Linux) network file systems
Mobile phone streaming live video through 3GPP / ISMA / RTSP
Supports privacy zone and text overlay functionality
Supports HTTPS encryption and IP filter for enhanced security
Supports UPnP with UPnP port forwarding capability
Integrated e-mail, FTP, DDNS and DHCP client
Easy-to-use 16-channel camera viewing and recording utility included (not compatible with NSC10/11 and NSC18 cameras)
Power supply not included, PoE injector must be purchased separately
