515566

Intellinet Network

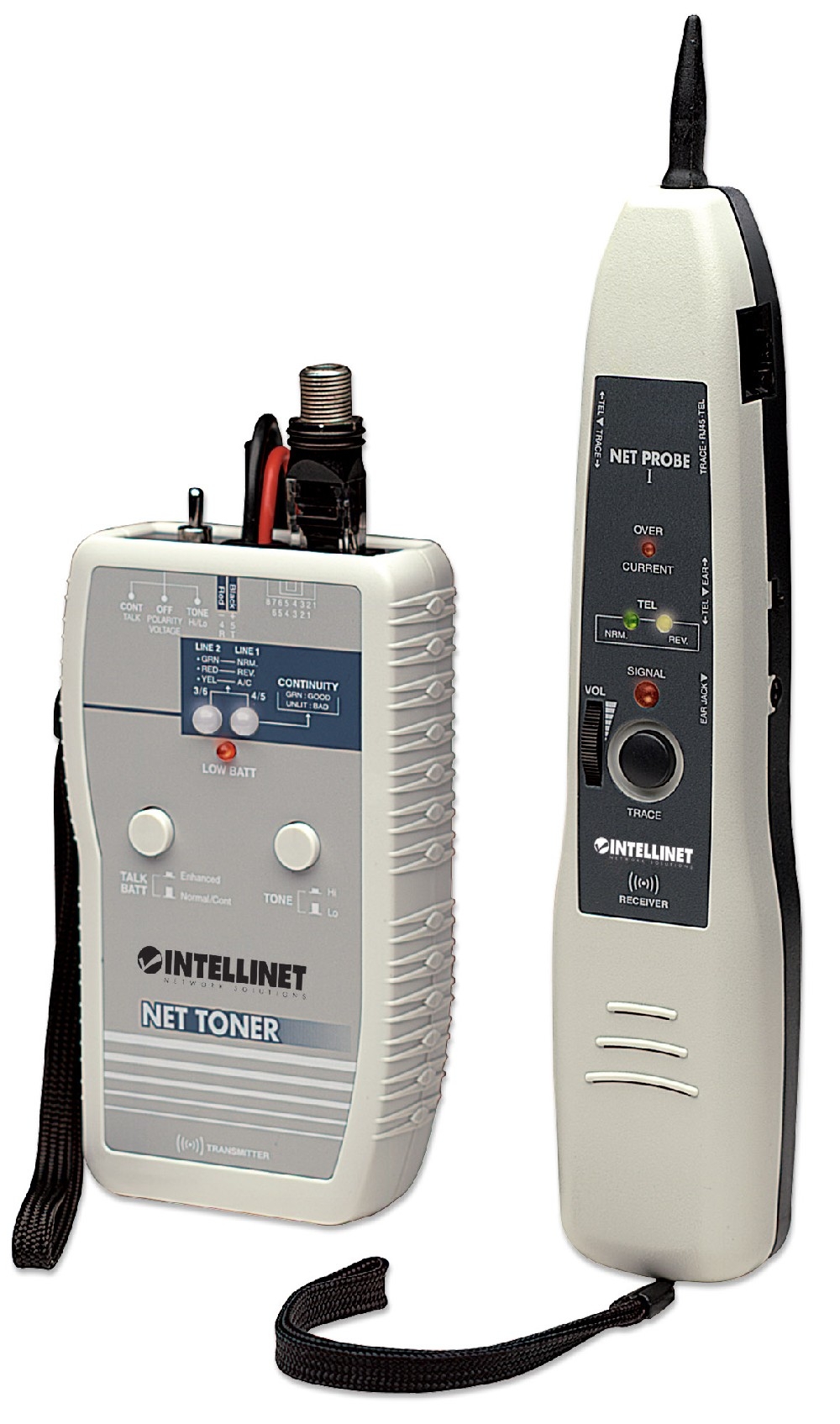

Intellinet 515566 Net Toner and Probe Kit



Product Highlights
  • Tests datacom, telecom, security, video, and audio networks
  • Two position switch for single or multi-tone signal
  • LEDs for line polarity, continuity and voltage
  • Model#: 515566

    Sku: IT3142



    MSRP: $99.99

    In Stock

    Your Price: $79.99






    SKU: 515566

    • Tests datacom, telecom, security, video, and audio networks
    • Two position switch for single or multi-tone signal
    • LEDs for line polarity, continuity and voltage
    • Enhanced talk battery mode provides power for voice communications over inactive pairs
    • Testing leads and modular cables for individual wire tests or modular jack tests
    • Replaceable plastic tip to prevent accidental shorts
    • Trace or identify wire or cables in a bundle or group
    • Alligator clips, RJ45 jack, RJ12 plug, optional F-connector
    • Three-year warranty



    • Net Toner
    • Toner Frequency: High alternating 500-781 Hz ; Low alternating 446-657 Hz
    • Talk Battery: 9V into a 600 ohms circuit
    • Voltage protection: 50 VDC or 24 VAC
    • Battery: 9V DC standard or alkaline
    • CE Approved: EN 55022 Class B for ITE and EN 55024
    • Size: 125 (L) x 68 (W) x 26 (H) mm (4.9 x 2.7 x 1.2 in.)
    • Weight: 120g (.37 lb)
    • Net Probe
    • Gain: 30 db
    • Tip resistance: 30 ohms (Plastic tip)
    • Battery: 9V DC standard or alkaline
    • CE Approved: EN 55022 Class B for ITE and EN 55024
    • Size: 210 (L) x 40 (W) x 28 (H) mm (8.1 x 1.6 x 1 in.)
    • Weight: 140g (.30 lb)
    • Environmental:
    • Operating temperature: 0 – 40°C (32 – 104°F)
    • Package Contents
    • Net Probe
    • Net Toner w/ Alligator clips and RJ12 connector
    • Female F-connector to RJ45 adapter
    • Carrying pouch
    • User Manual

    Datasheet

    PDF File Intellinet 515566 Net Toner and Probe Kit
