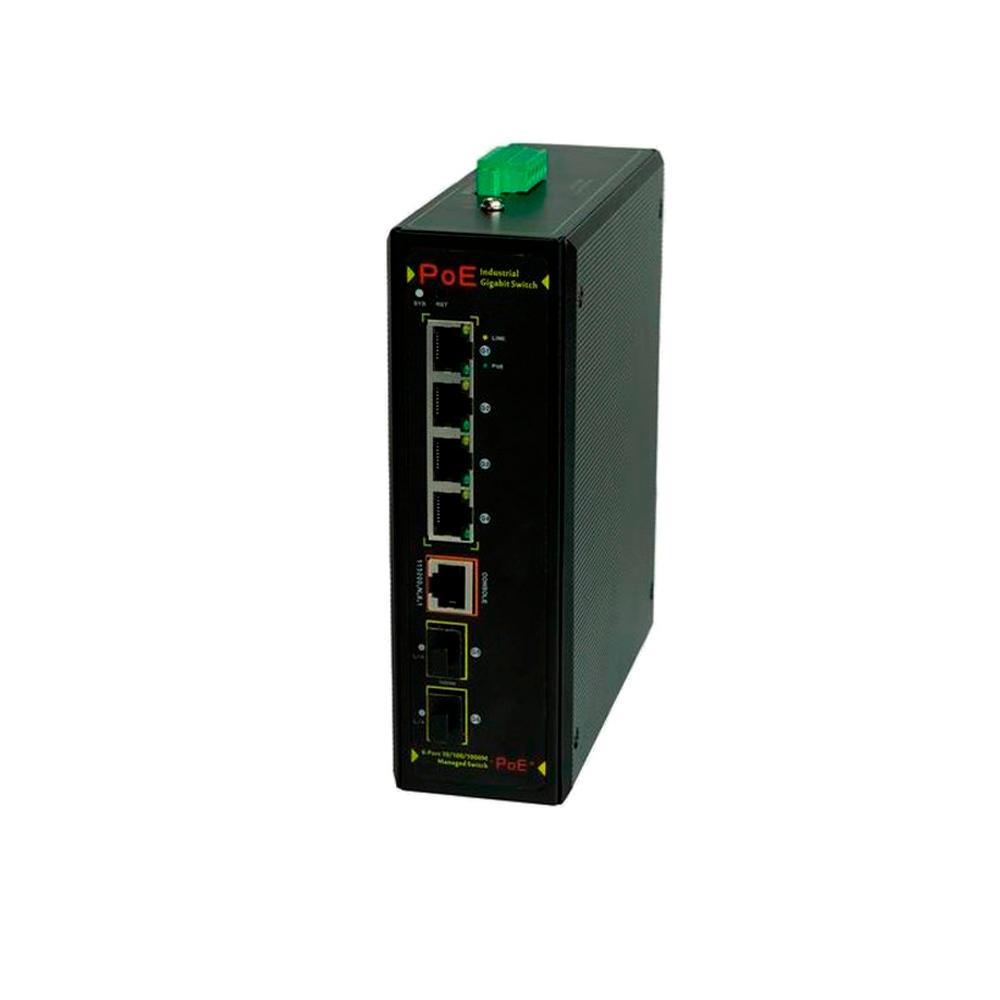

Tycon Power PoE+ managed switch TP-SW4G-2SFP with 6 ports

TP-SW4G-2SFP

Tycon Power Systems
Tycon Power PoE+ managed switch TP-SW4G-2SFP with 6 ports


Product Highlights
  • 6 Port Managed Gigabit Industrial 802.3at Mode A PoE Network Switch
  • 4x 802.3at Mode A PoE Ports + 2x SFP/LC Fiber Ports + 1x Serial Console Port
  • Fully Manageable PoE Port Control and L2+ Controls such as Port Mirroring, VLAN, QOS
  • 12V to 57VDC Wire Terminal Input, For PoE operation requires at least 46VDC
  • Applications: Outdoor Network Installations; Cameras and Wireless Radios; Factory networks
  • Model#: TP-SW4G-2SFP

    Sku: IT2991.6520.195013



    MSRP: $279.99

    Out of stock

    Your Price: $248.95


    The TP-SW4G-2SFP Power over Ethernet (PoE) 6 port Gigabit switches offered by Tycon® are fully automatic high speed Layer 2+ Ethernet manageable switches. The 6 port model has 4 PoE + 2 SFP ports. The PoE ports are Mode A (pins 1,2,3,6) type and are manageable via the user interface. They can be set to PoE, PoE+ or OFF. Default is PoE+.

    The switch features security protocols like SSH and SSL for secure access of the switch command interface. The interface can be accessed via the serial console port or any of the Ethernet ports. The command interface can be controlled via web browser, command line interface(CLI), TELNET, SSH or SNMP.

    With L2+ features, the switches provide better manageability, security, QOS features and performance. VLAN, Port Mirroring, Port Isolation, IGMP Snooping, DHCP Snooping, LLDP, ARP Inspection, Storm Control, IP Source Guard, Access Control Lists, PoE+ management are just some of the features available with this Industrial PoE Switch.

    This switch can be powered by 12VDC to 36VDC if no PoE output is required or powered from 48VDC to 57VDC if PoE is required.

    Applications

    • Outdoor Network Installations
    • Cameras and Wireless Radios
    • Factory networks
    • Ports 4 Ports 802.3af/at, PoE+ (30W) Mode A and 2 SFP/LC Fiber Ports - 1 Console Port
    • Transmission Speed 1000 Mbps (Gigabit) / 100 Mbps /10 Mbps Auto-negotiation
    • Industrial Strength (-40C to +80C Operating Temperature)
    • 4 PoE+ and 2 fiber (SFP) Ports
    • 10/100/1000 Gigabit Compatible
    • Manageable via Console Port or IP
    • Surge Protected Voltage and Ethernet Inputs
    • Integrated DIN Rail Mount
    • Operating Temp -40 to +80°C (-40 to 176°F)
    • Storage Temperature -40 to +85°C (-40 to +185°F)
    • Dimensions (LxWxH) 165*148*54(mm) (6.5 x 5.8 x 2.1”)
    • Weight 0.9kg (2lb)
