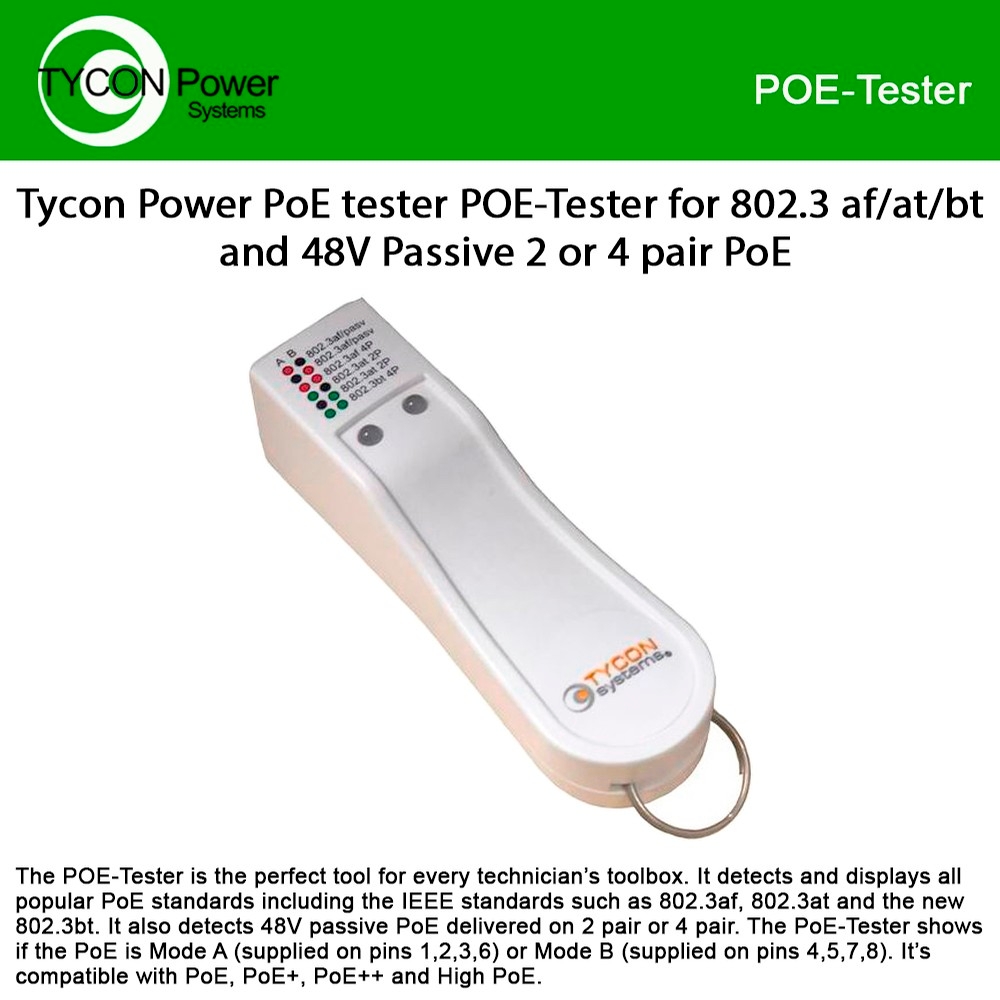

Tycon Power PoE tester POE-Tester for 802.3 af/at/bt and 48V Passive 2 or 4 pair PoE

POE-Tester

Tycon Power Systems
Tycon Power PoE tester POE-Tester for 802.3 af/at/bt and 48V Passive 2 or 4 pair PoE


Product Highlights
  • The POE-Tester is the perfect tool for every technician’s toolbox. Use it to make sure you know what type of PoE is being supplied to ensure your equipment is compatible
  • It detects and displays all popular PoE standards including the IEEE standards such as 802.3af, 802.3at and the new 802.3bt. It also detects 48V passive PoE delivered on 2 pair or 4 pair
  • The PoE-Tester shows if the PoE is Mode A (supplied on pins 1,2,3,6) or Mode B (supplied on pins 4,5,7,8). It’s compatible with PoE, PoE+, PoE++ and High PoE
  • Compatible Port Speed 10/100MB/1000MB; PoE Input (RJ45) 42-57VDC (Note: Does not detect 24V Passive PoE)
  • Dimensions (LxWxH) 74 x 23 x 23mm (3 x 1 x 1inches); Weight 15g (0.5oz)
  • Model#: POE-Tester

    Sku: IT2989.6518.194823



    MSRP: $28.95

    In Stock

    Your Price: $28.95

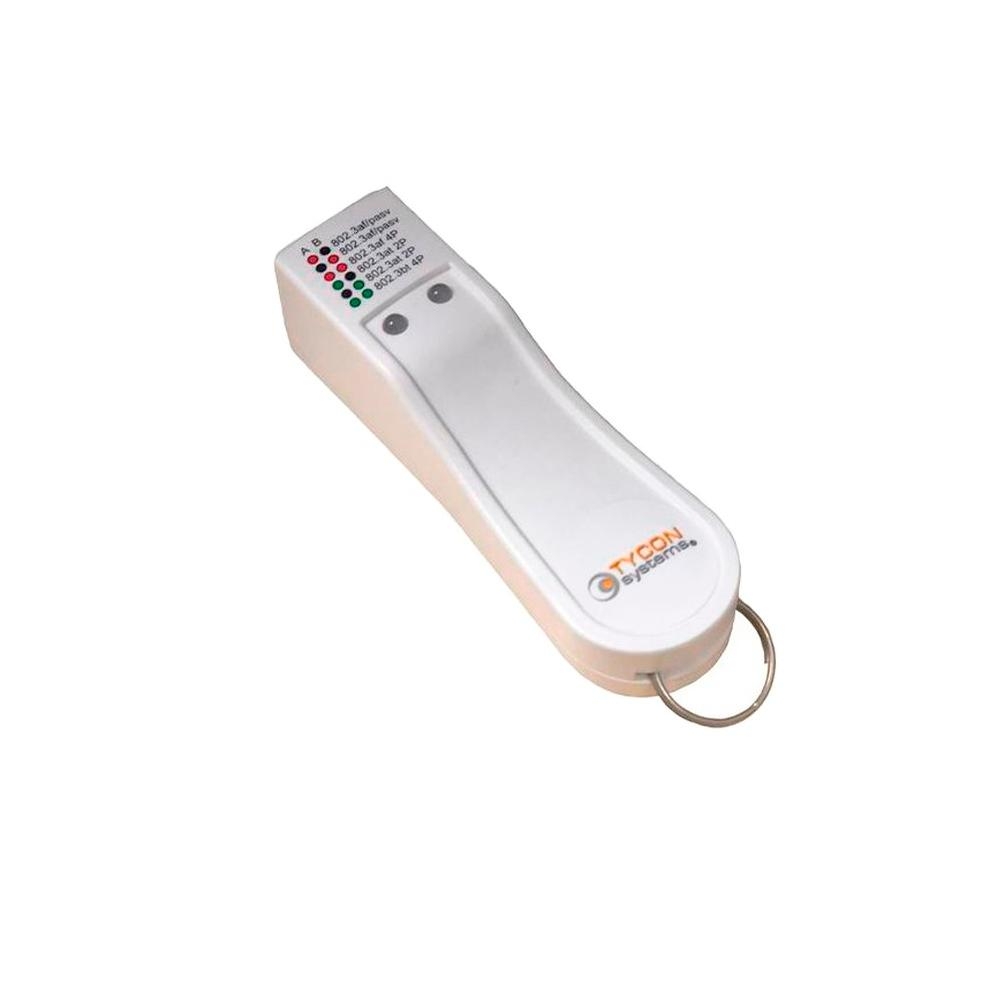

    The POE-Tester is the perfect tool for every technician’s toolbox. Use it to make sure you know what type of PoE is being supplied to ensure your equipment is compatible. It detects and displays all popular PoE standards including the IEEE standards such as 802.3af, 802.3at and the new 802.3bt. It also detects 48V passive PoE delivered on 2 pair or 4 pair.

    The PoE-Tester shows if the PoE is Mode A (supplied on pins 1,2,3,6) or Mode B (supplied on pins 4,5,7,8). It’s compatible with PoE, PoE+, PoE++ and High PoE.

    Features

    • Very Compact Size, Low Cost
    • Detects Popular Power Over Ethernet Standards.
    • PoE Detection 802.3af, 802.3at, 802.3bt, 48V Passive 2 Pair and 4 Pair, Mode A and Mode B
    • PoE Input (RJ45) 42-57VDC (Note: Does not detect 24V Passive PoE)
    • Compatible Port Speed 10/100MB/1000MB
    • LED Dual Color (Red / Green)
    • Operating Temperature -25 to +50°C (-13 to +122°F)
    • Storage Temperature -40 to +80°C (-40 to +176°F)
    • Dimensions (LxWxH) 74 x 23 x 23mm (3 x 1 x 1”)
    • Weight 15g (0.5oz)
