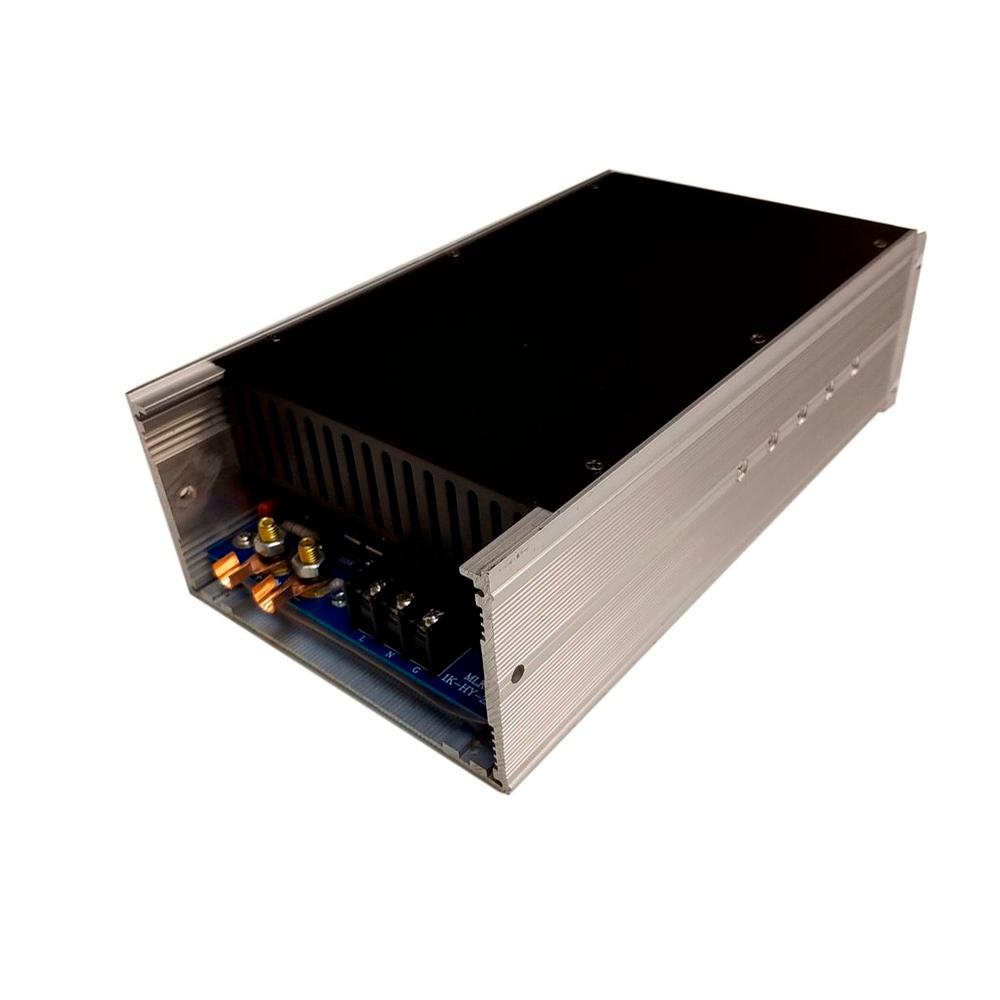

Tycon Power PSVHP-65-1200 AC to DC Switching Power Supply 115/230VAC IN 65VDC 18A Output 1200W

PSVHP-65-1200

Tycon Power Systems
Tycon Power Systems PSVHP-65-1200 AC to DC Switching Power Supply 115/230VAC IN 65VDC 18A Output 1200W


Product Highlights
  • 120/240VAC Selectable Input, 65VDC 18A 1200W out Open Frame Switching Power Supply
  • -40 to +60C Operating Temperature
  • Rugged and High Power, Thermostatically Controlled Fans
  • DIN Rail Mountable with Included DIN Rail Bracket
  • Applications: Outdoor UPS Systems; Wireless Base Stations; IP Phone and Security Camera Systems; Telecommunications
  • Model#: PSVHP-65-1200

    Sku: IT2986.5495.164080



    MSRP: $272.95

    Out of stock

    Your Price: $272.95


    The PSVHP Series high power switching power supplies have an impressive output capacity up to 1200W. They can run on 115VAC or 230VAC (selectable) single phase AC power. The output is 65VDC at up to 18A. The units are designed to operate outdoors in a weatherproof enclosure. They have conformal coated circuits to protect against moisture and are capable of -40C to +60C operating temperature. The units can be wall mounted using existing holes in the housing or DIN rail mounted using an optional DIN Rail bracket.

    • Input Operating Range 115VAC (90-130VAC) or 220VAC (210-265VAC) (selectable) ; 47-63Hz
    • Input In-rush Current 60A Max
    • Input Current 12A @ 115VAC ; 6A @ 220VAC Max
    • Output Voltage 65 VDC +/-5%
    • Cont. Load Current 18A
    • Ripple / Noise 1% / 5%
    • Efficiency 90% Minimum
    • Dielectric Strength 1800V rms / 50Hz, 1 sec, 10mA Max
    • Protection Short Circuit, Over-Voltage, Over-Current, Over Temperature
    • Safety Standards UL 60950-1, CUL 22.2 No.60950-1-03, TUV EN60950-1
    • EMI Standards FCC PART 15 CLASS B, EN55022 CLASS B, CISPR 22 CLASS B
    • Operating Temp -40°C to 60°C (-40°F to 140°F)
    • Operating Humidity 5% to 90% non- condensing
    • Storage Temp -40°C to 85°C (-40°F to 185°F)
    • Case Size 255 x 140 x 79mm (10 x 5.5 x 3.1”)
    • Weight 2.4 Kg (5.2 Lb)
    • Manufacturer Warranty 3 Years
