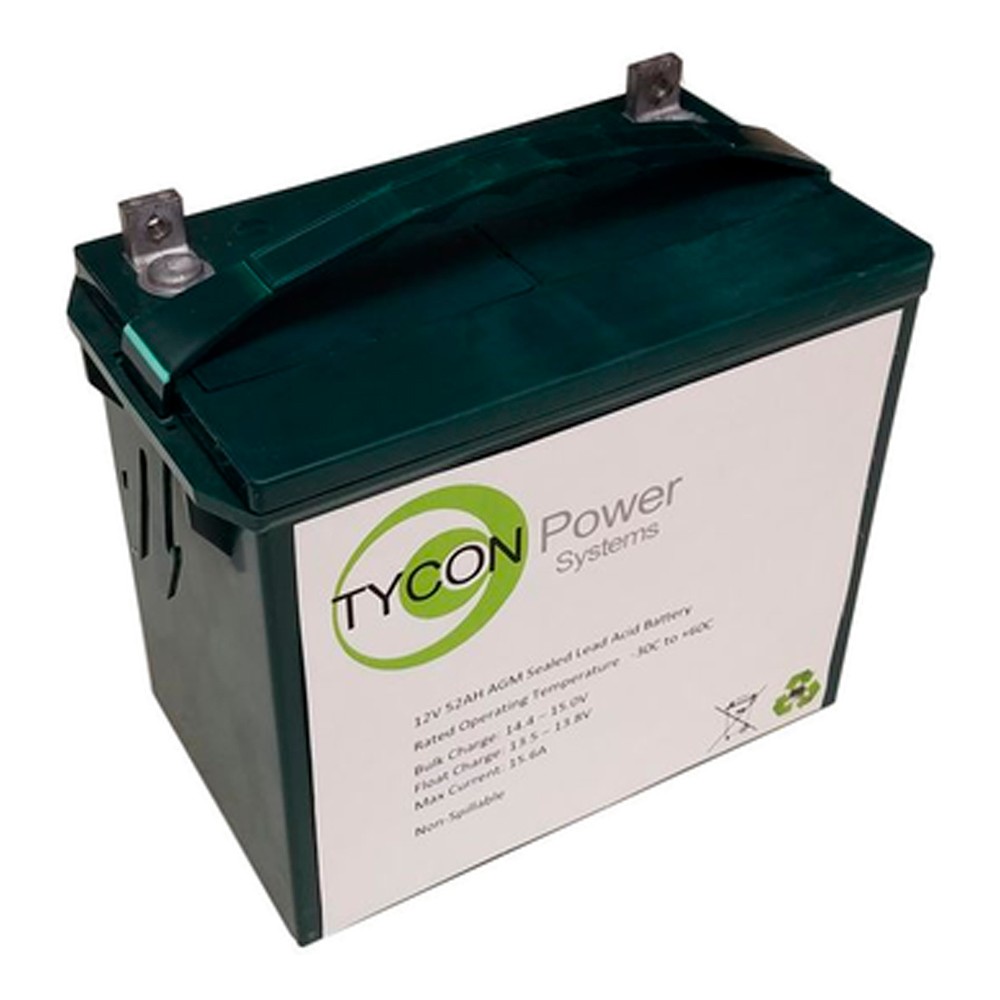

Tycon Power Systems TPBAT12-52 AGM battery 12V 52AH

TPBAT12-52

Tycon Power Systems
Tycon Power Systems TPBAT12-52 AGM battery 12V 52AH


Product Highlights
  • 12V 52Ah Non-Spillable Sealed Lead Acid AGM Battery
  • Maintenance Free, -30 to +60C Operating Temp
  • Exceptional Deep Discharge Performance
  • 8 Years Float, 1800 Cycle Life
  • Safety Valve for Ultimate Safety - Prevents Overpressure
  • Model#: TPBAT12-52

    Sku: IT2983.5490.163766



    MSRP: $229.95

    In Stock

    Your Price: $229.95




    The TPBAT12-52 high rate valve regulated sealed lead acid (VRLA) AGM battery has been developed for long term operation in harsh environments. They have a high cycle life and impressive 8 year float life. They are designed to operate over a wide temperature range such as those experienced in outdoor equipment applications. The batteries can be installed in any position without affecting their performance or reliability. The batteries have a carrying/lifting handle for convenience.

    Certifications: ISO 9001, ISO 14001, ISO 5001, UL, IEC (on-going)

    Compliances: JIS C 8704-2 : 1999, BS6290 PART4 1987, TL9000, EUROBAT, OHSAS, NEBS, REACH, RoHS

    Applications

    • Remote Equipment Power
    • Surveillance Cameras
    • Wireless Base Stations
    • Medical Equipment
    • Remote Sensors
    • Backup Power Systems
    • Voltage 12V
    • Capacity (amp hours; 20hr) 52
    • Typical Float Life 8 Years
    • 30% Discharge Cycle Life 1800 Cycles
    • Type / Technology Valve Regulated Sealed Lead Acid / Absorbent
    • Glass Mat (AGM)
    • Self-Discharge (25°C) <3% per month
    • Charge Voltage (-30mV / °C) 14.4 to15V ; Max Current 15.6A
    • Float Voltage (-20mV / °C) 13.5 to 13.8V
    • Internal Resistance 5.2mΩ
    • Operating Temperature -30C (-22F) to +60C (140F)
    • Housing ABS (UL94HB)
    • Dimensions (L x W x H) 228 x 138.4 x 219
    • (9 x 5.4 x 8.6”)
    • Weight 18.3kg (40.3lb)
