Tycon Power Systems

802.3at PoE Input to 802.3af and Passive PoE Outputs, Active Splitter

Model#: POE-SPLT-48G-VUB

Sku: IT2975

MSRP: $79.99

Out of stock

Active Splitter 40-60VDC 802.3at/Passive POE to 802.3af PoE and Passive PoE Output

-802.3at PoE input , 802.3af and Passive PoE outputs
-Gigabit Compatible
-Extended Temperature Range: -40 to +70C
-Short Circuit and Over Current Protection

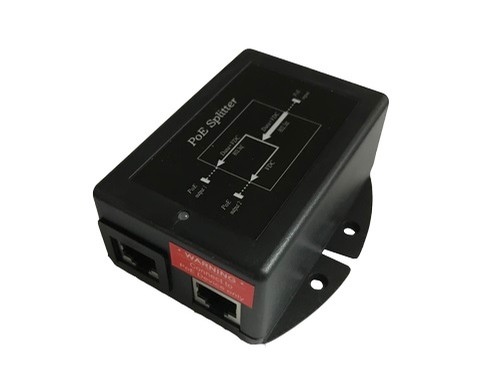

The POE-SPLT-48G-VUB is an active splitter which accepts an 802.3at Mode A/B or passive PoE (2 or 4 pair) input and provides two PoE outputs. Output 1 is an 802.3af Mode B PoE output with Data and PoE. Output 2 is a 48V Passive PoE Mode B output with PoE only, no data. The splitter is designed to supply power and data to one device and power only to the second device.
It is Gigabit compatible providing speeds to 1000MB. There are various protections for short circuit, overload and low voltage disconnect.
