Tycon Power 802.3af PoE Splitter, 12VDC 15W Output, Female Connector


Tycon Power Systems
802.3af PoE Splitter, 12VDC 15W Output, Female Connector

Model#: POE-MSPLT-4812P-F

Sku: IT2973.5480.162920

MSRP: $52.99

Out of stock

Your Price: $44.95

PoE Splitter. 48V Passive PoE and 12VDC outputs


- Very Compact Size

- Dual Output: 48V PoE plus 12VDC Output

- Converts an Active PoE Input to a DC output

- Output Power Up To 15W

- Short Circuit, Over Current Protection

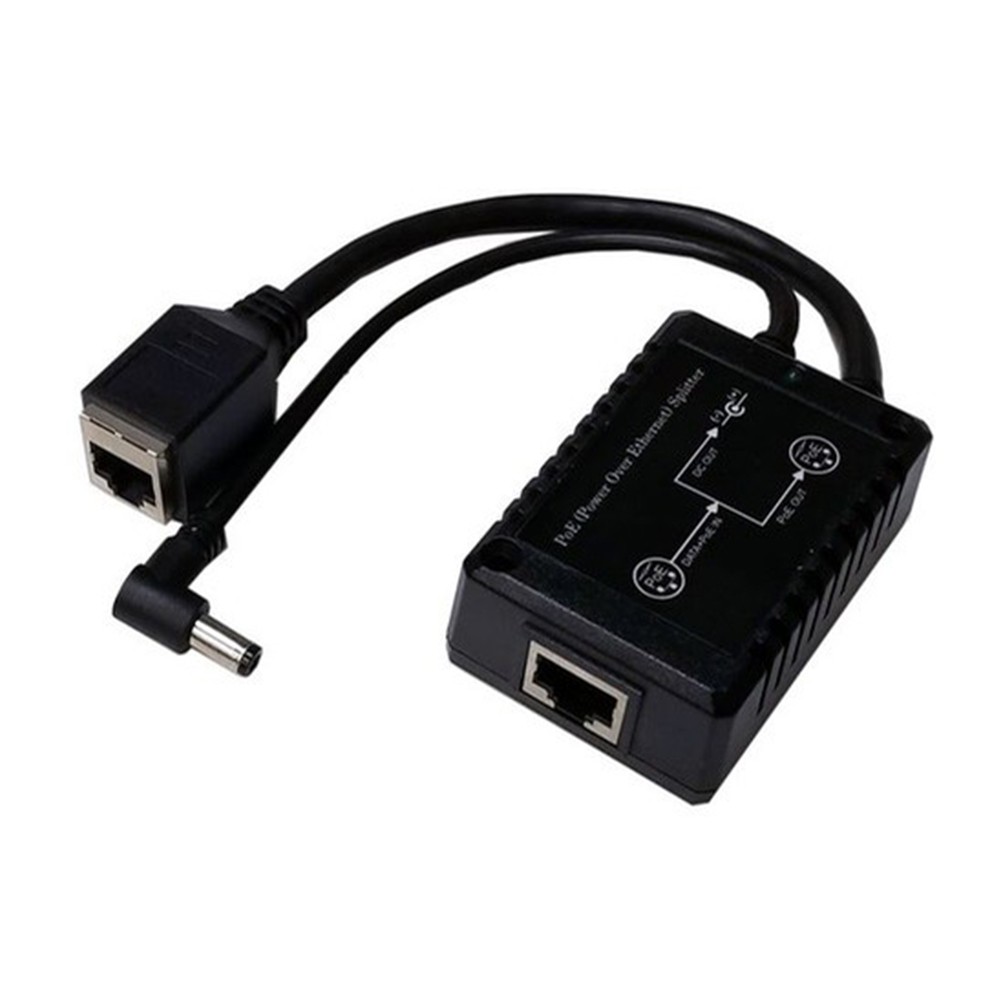

The POE-MSPLT-4812P-F is a unique splitter with dual outputs. It accepts 802.3af or 802.3at PoE and provides 48V PoE and 12VDC outputs concurrently so two separate devices can be powered. The 12VDC output is provided on a standard 5.5mm/2.5mm barrel connector and the Data/PoE output is provided on standard female RJ45 network connector, each on a dedicated 6” cable. The DC connector is compatible with Tycon passive PoE injectors like POE-INJ-1000-S for ease of integration. In addition to being compatible with 10/100MB Ethernet speeds, inputs and outputs are isolated and the devices include protections for short circuit and overload.
