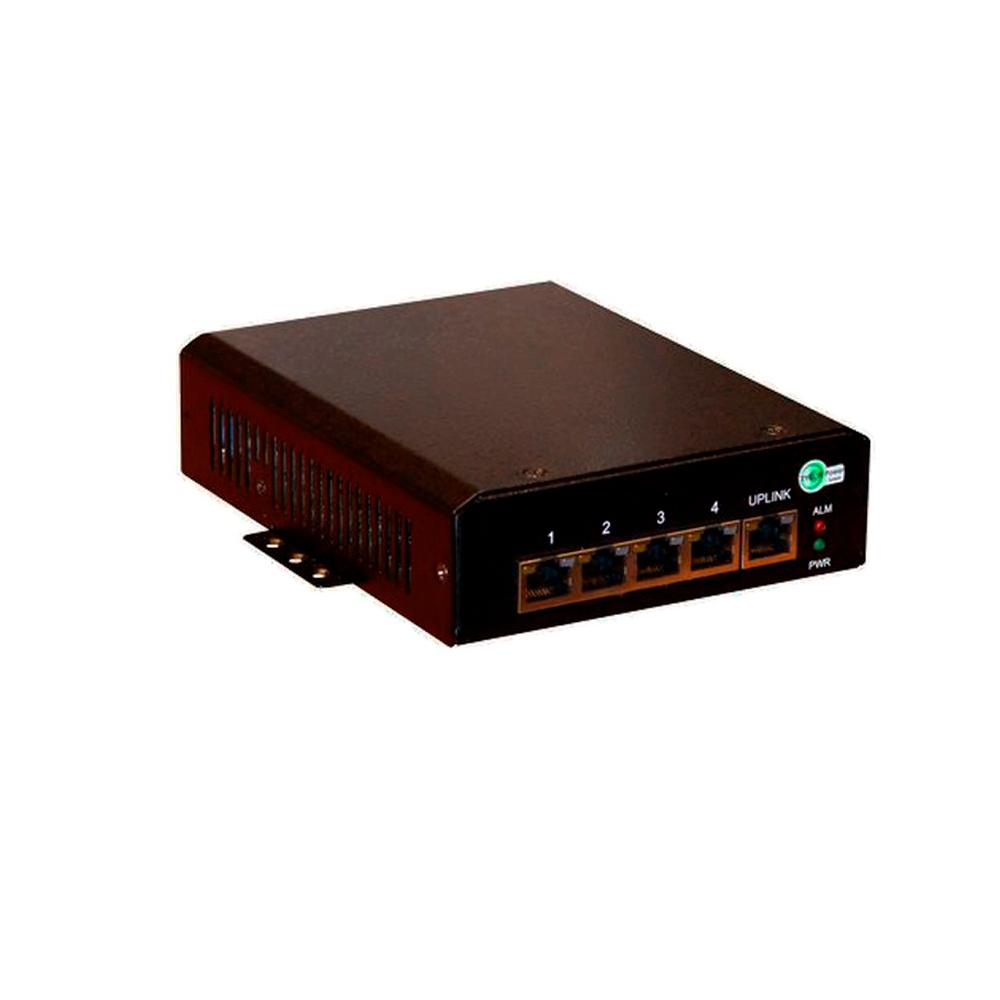

Tycon Power TP-SW5G-24HP 5 port switch with 802.3af/at PoE gigabit 12-36VDC input and 35W per port

TP-SW5G-24HP

Tycon Power Systems
Tycon Power TP-SW5G-24HP 5 port switch with 802.3af/at PoE gigabit 12-36VDC input and 35W per port


Product Highlights
  • 5 port switch with 802.3af/at PoE gigabit
  • Applications - Wireless Access Points and Client Devices or IP Phone and Security Camera Systems
  • High Power 10/100 and 1000Mb (ā€œGā€) PoE Switch
  • Remotely Power Equipment thru CAT5 Cable up to 100m
  • Up to 2A per Port
  • Model#: TP-SW5G-24HP

    Sku: IT2972.5479.162835



    MSRP: $269.95

    In Stock

    Your Price: $269.95




    The TP-SW5G-24HP Power Over Ethernet (POE) 10/100/1000Mb switch offered by Tycon Power Systems is a fully automatic high speed 5 port Ethernet switch with up to 35 Watts of POE power per port 140W Max Total. It complies with the IEEE802.3af/at specifications for valid POE device detection.

    The unit supplies power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the POE switch and the remote device.

    The switch accepts DC power from 12-36VDC which makes it an excellent choice for those systems powered by battery power. There are 2 power inputs for attachment of primary and backup power sources.

    It also accepts 802.3af or 802.3at power thru port 5.

    Applications

    • Wireless Access Points and Client Devices
    • IP Phone and Security Camera Systems
    • Ethernet Standard IEEE802.3/IEEE802.3u
    • Ports 1 data/PoE input and 4 data/PoE, automatic crossover and polarity
    • Transmission Speed 1000Mbps / 100 Mbps /10 Mbps Auto-negotiation
    • Maximum POE Power 35W per port
    • POE Auto Detection IEEE 802.3af, 802.3at
    • DC Power Input 24VDC (12V to 36V), Dual DC Inputs, Reverse Polarity Protected. Also Accepts PoE power input on Port 5
    • Self Consumption < 4 Watts
    • Operating Temp -40 to +70°C (-40 to 158°F)
    • Storage Temperature -55 to +85°C (-67 to +185°F)
    • Dimensions (LxWxH) 159 x 118 x 40mm (6.3 x 4.6 x 1.6”) (HP version has metal housing)
    • Weight 383g (13.5oz)
