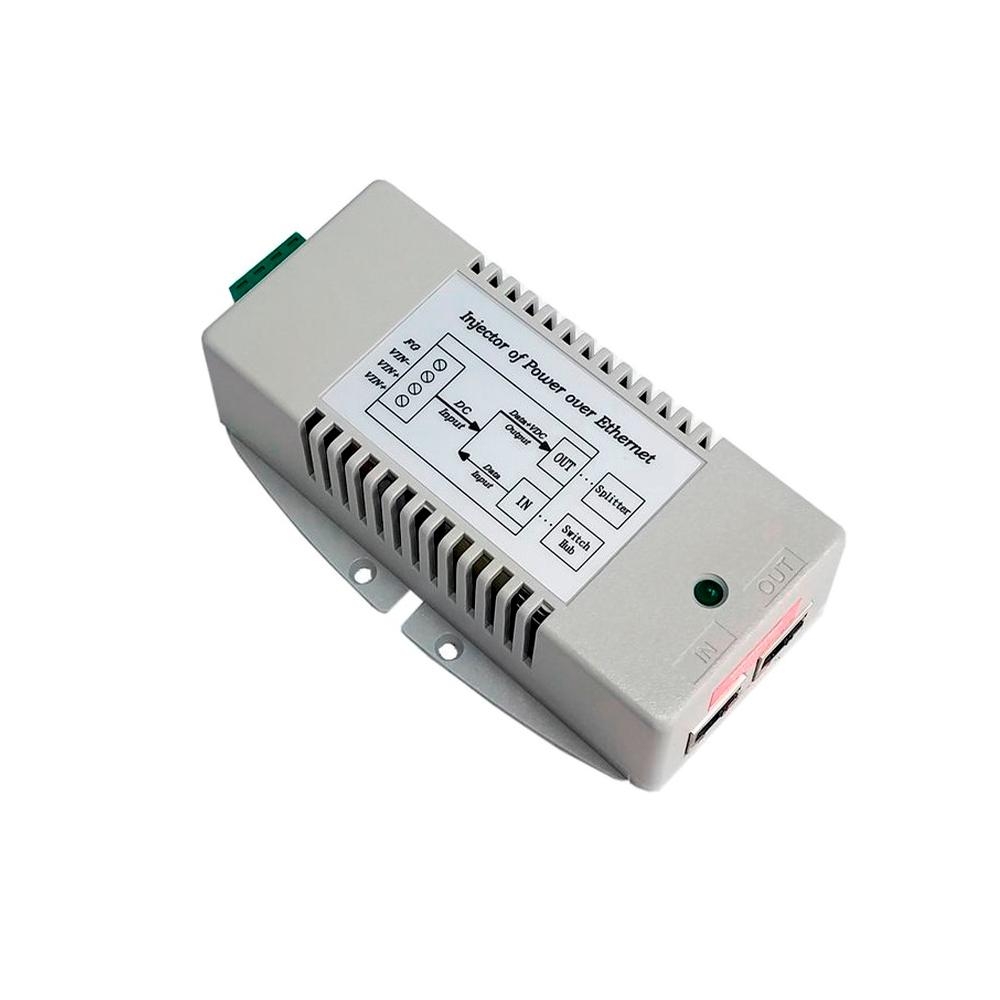

Tycon Power TP-DCDC-4848G-HP DC to DC Converter 36-72VDC IN 56V 50W Gigabit Passive PoE Inserter

TP-DCDC-4848G-HP

Tycon Power Systems
Tycon Power Systems TP-DCDC-4848G-HP DC to DC Converter 36-72VDC IN 56V 50W Gigabit Passive PoE Inserter


Product Highlights
  • 56V 50W Gigabit Passive PoE Inserter
  • +/- 36-72VDC Wire Terminal Input
  • Isolated Input to out
  • Dual Inputs for Connecting 2 Power Sources
  • Applications: 12V / 24V / 48V Battery Systems, Vehicle Applications; Wireless Access Points and Client Devices; IP Phone and Security Camera Systems
  • Model#: TP-DCDC-4848G-HP

    Sku: IT2970.5477.162666



    MSRP: $67.95

    In Stock

    Your Price: $67.95




    The TP-DCDC Gigabit Series of DC to DC converters offered by Tycon Power are a low cost and high efficiency solution for those requiring IEEE802.3af and IEEE802.3at or Passive Power over Ethernet from a 12VDC or 24VDC or 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5 Ethernet cable. The output voltage is regulated and protected. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial applications.

    They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 50W.

    • DC Input Voltage +/- 36 to 72VDC
    • DC Input Connector Removeable Screw Type Compression Wire Terminal (12 AWG Max)
    • DC Output Voltage 56V (Passive)
    • Data in & Data/POE Output Connector RJ45 (Shielded)
    • Output Current (max) 0.9A
    • Output Power (max) 50W
    • Self Consumption Power 1W
    • Efficiency (min) 75%
    • Line Regulation 1%
    • Load Regulation 5%
    • Ripple 1%
    • Noise 1%
    • EMC Standards FCC Class B EN55022 Class B
    • Safety Standards UL1950, CSA 22.2 &TUV EN60950
    • Operating Temp -30 to +60°C (-22 to +140°F)
    • Operating Humidity 5% - 90%
    • Storage Temp -40 to +80°C (-40 to +176°F)
    • Dimensions (LxWxH) 125 x 75 x 38mm (4.9 x 3 x 1.5”)
    • Weight 300g (10.6oz)
    • Manufacturer Warranty 1 Year
