TP-DCDC-2448G-HP

Tycon Power Systems


Tycon Power TP-DCDC-2448G-HP 18-36VDC Input, 56V Passive PoE Output, 50W



Product Highlights
  • • DC to DC Converter
  • • Input Voltage 24VDC
  • • 56VDC Passive PoE Output
  • • Dual Inputs
  • • Integrated 10/100/1000MB PoE Inserter
  • Model#: TP-DCDC-2448G-HP

    Sku: IT2969



    MSRP: $69.99

    In Stock

    Your Price: $69.99






    MODEL: TP-DCDC-2448G-HP

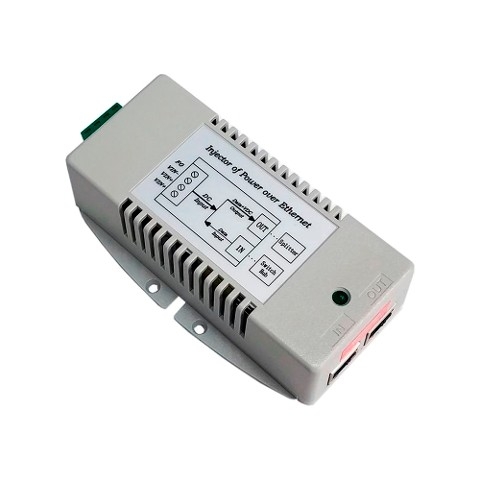

    The TP-DCDC-2448G-HP offered by Tycon Power is a low cost and high efficiency DC to DC Converter solution for those requiring Passive Power over Ethernet from a 24VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable. The output voltage is regulated and protected. They have a common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications. 802.3af/at models available.

    These injectors accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 50W.

    Features – DC to DC Converter

    • DC to DC Converter
    • Input Voltage 24VDC (Range 18-36VDC)
    • 56VDC Passive PoE Output
    • Dual Inputs for Connecting 2 Power Sources
    • Integrated 10/100/1000MB PoE Inserter
    • High Power up to 50W
    • Low Self Consumption Power
    • Short Circuit, Over Current and Reverse/Over Voltage Protect
    • High Temperature Operation
    • Compact Size – Maximize Available Space
    • I.T.E. Power Supply, UL Listed

    Applications

    • 24V Battery Systems, Vehicle Applications
    • Wireless Access Points and Client Devices
    • IP Phone and Security Camera Systems

    Specifications TP-DCDC-2448G-HP

    DC Input Voltage 18VDC - 36VDC
    DC Output Voltage 56V (Passive
    Data in & Data/POE Output Connector RJ45 (shielded)
    Output Current (max) 0.9A
    Output Power (max) 50W
    Self Consumption Power 1W
    Efficiency (min) 75%
    Operating Temp -30 to +60deg C (-22 to +140deg F)
    Operating Humidity 5% - 90%
    Dimensions 85 x 76 x 36mm (3.4 x 3 x 1.4in)
    Weight 134g (4.7oz)

    Datasheet

    PDF File Tycon Power TP-DCDC-2448G-HP 18-36VDC Input, 56V Passive PoE Output, 50W
