Tycon TP-DCDC-1256G-VHP DC to DC Converter with 56V 70W 4 Pair Passive POE Inserter

TP-DCDC-1256G-VHP

Tycon Power Systems

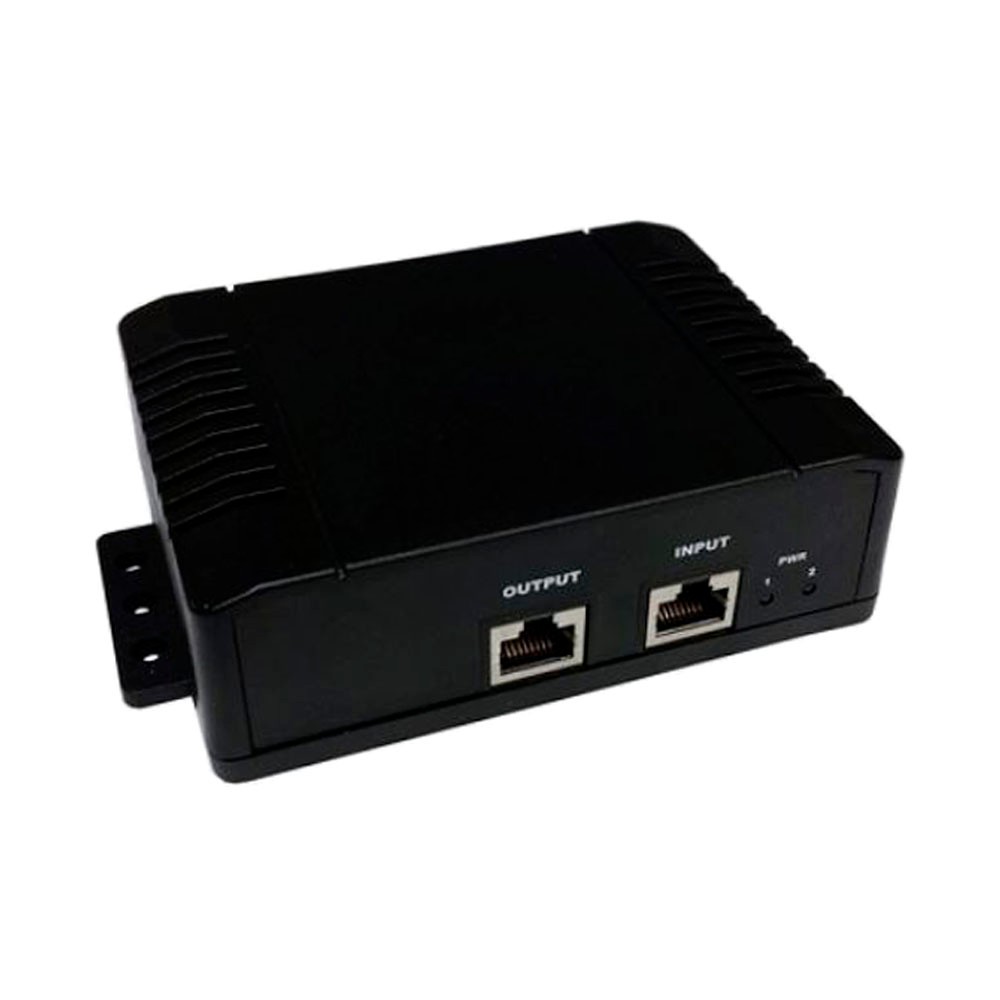

Tycon Power Systems TP-DCDC-1256G-VHP DC to DC Converter/PoE Inserter with 56V 70W 4 Pair Passive POE Inserter


Product Highlights
  • The Gigabit compatible TP-DCDC-1256G-VHP is a DC to DC converter / POE inserter designed especially for Ubiquiti airFiber antenna systems and other systems which require high power passive POE
  • The wide input voltage range (10VDC to 60VDC) makes these units universal in battery powered applications
  • The units input and output is isolated so they work in a negative ground of positive ground system
  • The units come complete with a DIN Rail mounting kit for mounting to a standard DIN rail
  • Applications: 12VDC / 24VDC Remote Power Systems; 48VDC or -48VDC Remote Power Systems; Ubiquiti airFiber Antennas; PTZ Security Cameras; High PoE 4 Pair Powered Cameras and Radio‚Äôs
  • Model#: TP-DCDC-1256G-VHP

    Sku: IT2967.5474.162413



    MSRP: $179.99

    In Stock

    Your Price: $169.95




    The Gigabit compatible TP-DCDC-1256G-VHP is a special, very high power, DC to DC converter / POE inserter designed especially for Ubiquiti airFiber antenna systems and other systems which require high power passive POE such as Axis High Power POE PTZ security cameras. The unique POE inserter supplies 56VDC POE power on all 8 Ethernet wires (4 Pair).

    The wide input voltage range (10VDC to 60VDC) makes these units universal in battery powered applications. The units input and output is isolated so they work in a negative ground of positive ground system. They have a common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. They have various protections for surge, short circuit and overload. The units come complete with a DIN Rail mounting kit for mounting to a standard DIN rail.

    • Input Voltage +/- 10VDC to 60VDC
    • DC Input Connector Removeable Screw Type Compression Wire Terminal, 5 Pin (12 AWG Max)
    • POE Specification Passive ( 8 Wire , 4 Pair )
    • Output Voltage (+/-2.5%) 56VDC
    • Data in & Data/POE Output Connector RJ45 (Shielded)
    • Output Current (max) 1.25A Total
    • Output Power (max) 70W Total
    • Self-Consumption Power 2W
    • Efficiency 80% Min (10VDC to 60VDC Input)
    • Line Regulation, Ripple, Noise 1%
    • Load Regulation 5%
    • EMC Standards FCC Class B EN55022 Class B
    • Safety Standards UL1950, CSA 22.2 &TUV EN60950
    • Operating Temperature -40 to +70°C (-40 to +158°F)
    • Operating Humidity (RH) 5% - 90%
    • Storage Temperature -40 to +85°C (-40 to +185°F)
    • Dimensions (LxWxH) 90 x 118 x 40mm (3.5 x 4.6 x 1.57”)
    • Weight 335g (11.8oz)
