TP-DCDC-4824G

Tycon Power Systems

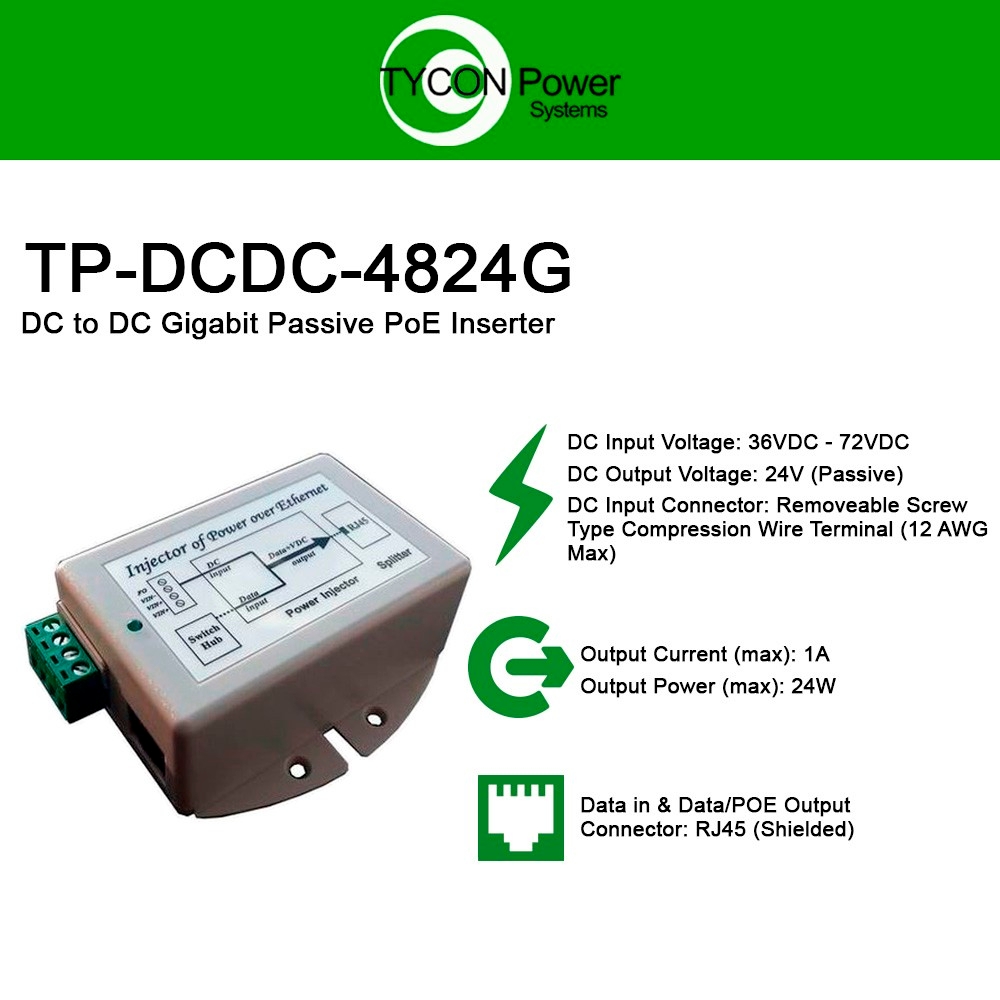

Tycon Power Systems TP-DCDC-4824G DC to DC Converter 24V 24W Gigabit Passive PoE Inserter


Product Highlights
  • The TP-DCDC-4824G offered by Tycon Power is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 48VDC voltage source like a battery system or vehicle
  • They have an integrated POE injector to apply the power and data output to the CAT5 Ethernet cable. The output voltage is regulated and protected
  • They have a common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications
  • They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. The units have power outputs up to 24W
  • Applications: 48V Battery Systems, Vehicle Applications; Wireless Access Points and Client Devices; IP Phone and Security Camera Systems

    • Model#: TP-DCDC-4824G

    Sku: IT2965



    MSRP: $44.99


    Out of stock

    The TP-DCDC-4824G offered by Tycon Power is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5 Ethernet cable. The output voltage is regulated and protected. They have a common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications.

    They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 24W.

    • DC Input Voltage 36VDC - 72VDC
    • DC Input Connector Removeable Screw Type Compression Wire Terminal (12 AWG Max)
    • DC Output Voltage 24V (Passive)
    • Data in & Data/POE Output Connector RJ45 (Shielded)
    • Output Current (max) 1A
    • Output Power (max) 24W
    • Self Consumption Power 1W
    • Efficiency (min) 75%
    • Line Regulation 1%
    • Load Regulation 5%
    • Ripple 1%
    • Noise 1%
    • EMC Standards FCC Class B EN55022 Class B
    • Safety Standards CSA 22.2 &TUV EN60950
    • Operating Temp -30 to +60°C (-22 to +140°F)
    • Operating Humidity 5% - 90%
    • Storage Temp -40 to +80°C (-40 to +176°F)
    • MTBF (Mean Time Between Failure) 166,000 Hours
    • Dimensions (LxWxH) 85 x 76 x 36mm (3.4 x 3 x 1.4”)
    • Weight 134g (4.7oz)
    • Manufacturer Warranty 3 Years
