TP-DCDC-1248G

Tycon Power Systems

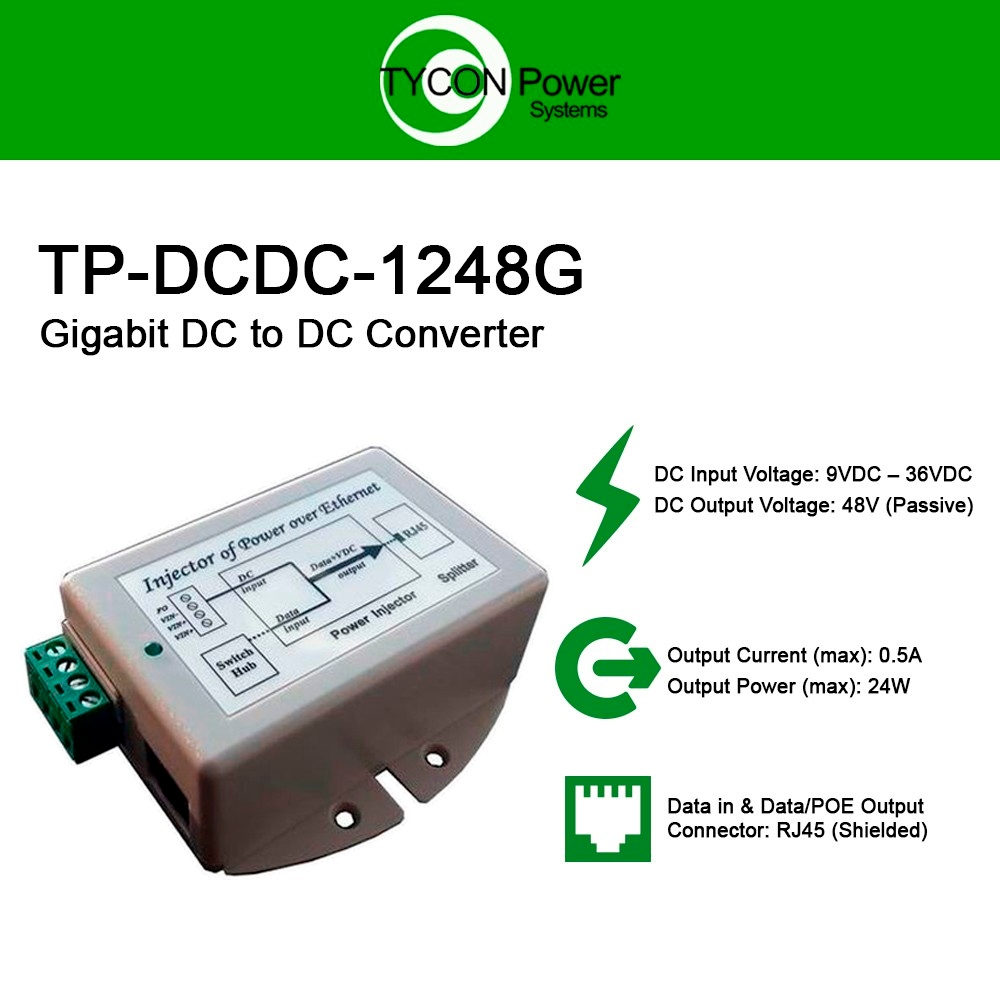

Tycon Power Systems TP-DCDC-1248G Gigabit DC to DC Converter 9-36V In 48V Out Passive PoE 19W



Product Highlights
  • The TP-DCDC-1248G offered by Tycon Power is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle
  • It has an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable. The output voltage is regulated and protected
  • They have two common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. They have various protections for surge, short circuit and overload
  • They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-)
  • Applications: 12V / 24V Battery Systems, Vehicle Applications; Wireless Access Points and Client Devices; IP Phone and Security Camera Systems
  • Model#: TP-DCDC-1248G

    Sku: IT2964



    MSRP: $47.99


    Out of stock

    The TP-DCDC-1248G offered by Tycon Power is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable. The output voltage is regulated and protected.

    They have two common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated. A metal enclosure model is available for industrial applications.

    They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The other models have power outputs up to 24W.

    • DC Input Voltage 9VDC – 36VDC
    • DC Input Connector Removeable Screw Type Compression Wire Terminal (12 AWG Max)
    • DC Output Voltage 48V (Passive)
    • Data in & Data/POE Output Connector RJ45 (Shielded)
    • Output Current (max) 0.5A
    • Output Power (max) 24W
    • Self Consumption Power 1W
    • Efficiency (min) 75%
    • Line Regulation 1%
    • Load Regulation 5%
    • Ripple 1%
    • Noise 1%
    • EMC Standards FCC Class B EN55022 Class B
    • Safety Standards CSA 22.2 &TUV EN60950
    • Operating Temp -30 to +60°C (-22 to +140°F)
    • Operating Humidity 5% - 90%
    • Storage Temp -40 to +80°C (-40 to +176°F)
    • MTBF (Mean Time Between Failure) 166,000 Hours
    • Dimensions (LxWxH) 85 x 76 x 36mm (3.4 x 3 x 1.4”)
    • Weight 134g (4.7oz)
    • Manufacturer Warranty 3 Years
