TP-DCDC-1224G-4P

Tycon Power Systems

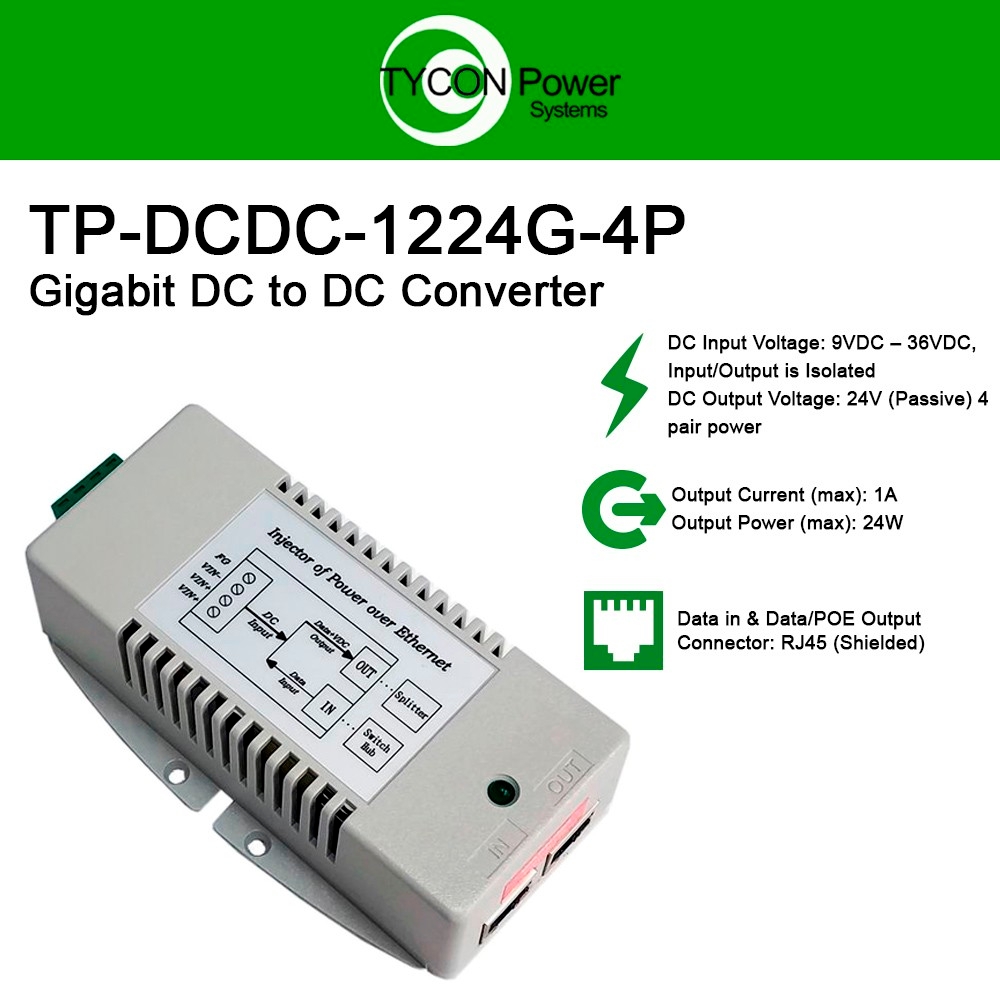

Tycon Power TP-DCDC-1224G-4P Gigabit DC to DC Converter 9-36V In 24V Out 4 Pair Passive PoE 24W



Product Highlights
  • The TP-DCDC-1224G-4P is a low cost and high efficiency solution for those requiring 24VDC 4 pair Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle
  • It has an integrated 4 pair PoE injector to apply the power and data output to the CAT5/6 Ethernet cable. All 8 wires carry both data and PoE power. The output voltage is regulated and protected
  • Also has a common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source. Input and outputs are isolated so + or – ground is OK
  • TP-DCDC-1224G-4P accepts gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and 4 pairt PoE power on the shielded RJ45 output jack
  • Applications: 12V / 24V Battery Systems, Vehicle Applications; UBNT Airfiber-X; Wireless Access Points and Client Devices
  • Model#: TP-DCDC-1224G-4P

    Sku: IT2963



    MSRP: $89.99


    Out of stock

    The TP-DCDC-1224G-4P is a low cost and high efficiency solution for those requiring 24VDC 4 pair Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle. They have an integrated 4 pair PoE injector to apply the power and data output to the CAT5/6 Ethernet cable. All 8 wires carry both data and PoE power. The output voltage is regulated and protected. They have a common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source. Input and outputs are isolated so + or – ground is OK. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and 4 pairt PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 1,2,4,5(V+) and 3,6,7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 24W.

    • DC Input Voltage 9VDC – 36VDC, Input/Output is Isolated
    • DC Input Connector Removeable Screw Type Compression Wire Terminal (12 AWG Max)
    • DC Output Voltage 24V (Passive) 4 pair power
    • Data in & Data/POE Output Connector RJ45 (Shielded)
    • Output Current (max) 1A
    • Output Power (max) 24W
    • Low Voltage Disconnect / Reconnect Disconnect at 8.9V, Reconnect at 9.02V
    • Efficiency (min) 80%
    • Line Regulation 1%
    • Load Regulation 5%
    • Ripple 1%
    • Noise 1%
    • LED Operation RED = Input Power On, GREEN = Output Connected
    • Surge Protection (IEC 61000-4) 15kV (Air), 8kV (Contact), 20A (8/20us) Lightning
    • EMC Standards FCC Class B EN55022 Class B
    • Safety Standards CSA 22.2 &TUV EN60950
    • Operating Temp -40 to +70°C (-40 to +158°F)
    • Operating Humidity 5% - 90%
    • Storage Temp -40 to +80°C (-40 to +176°F)
    • Dimensions (LxWxH) 125 x 75 x 38mm (4.9 x 3 x 1.5”)
    • Weight 300g (10.6oz)
    • Manufacturer Warranty 3 Years
