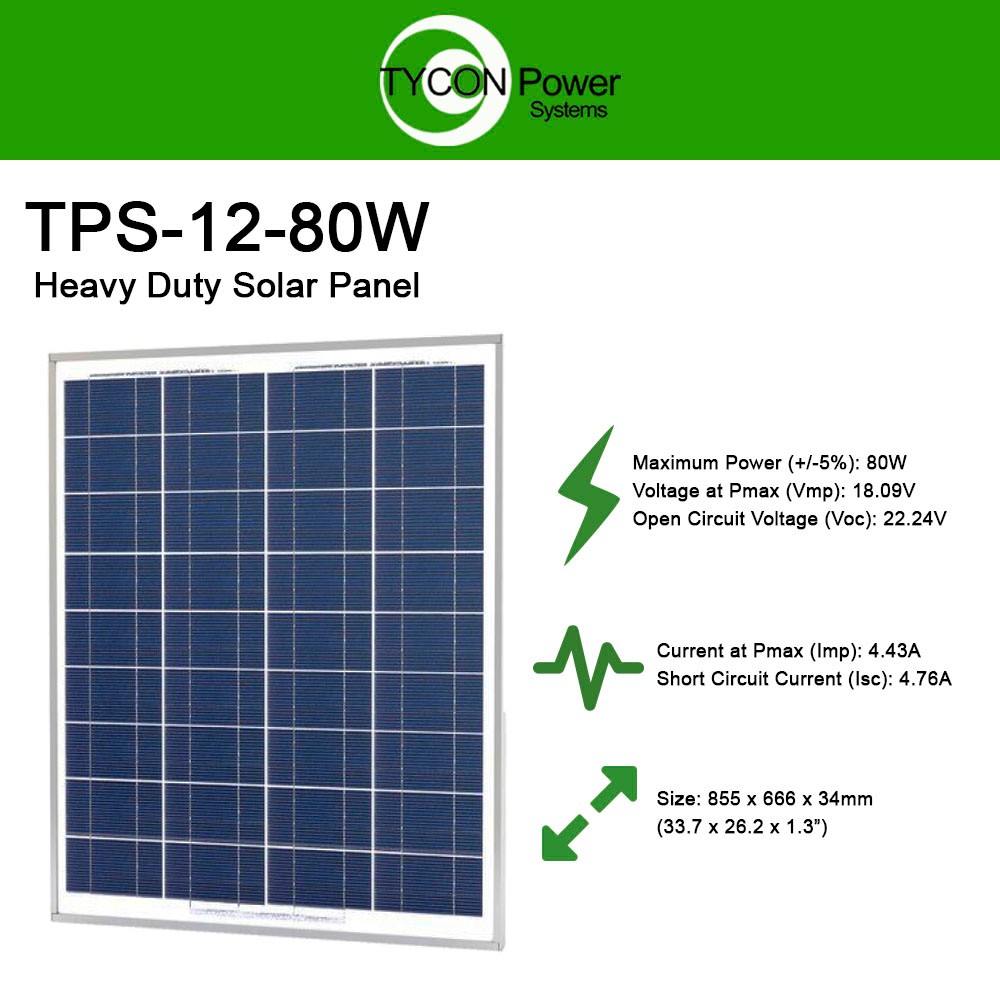

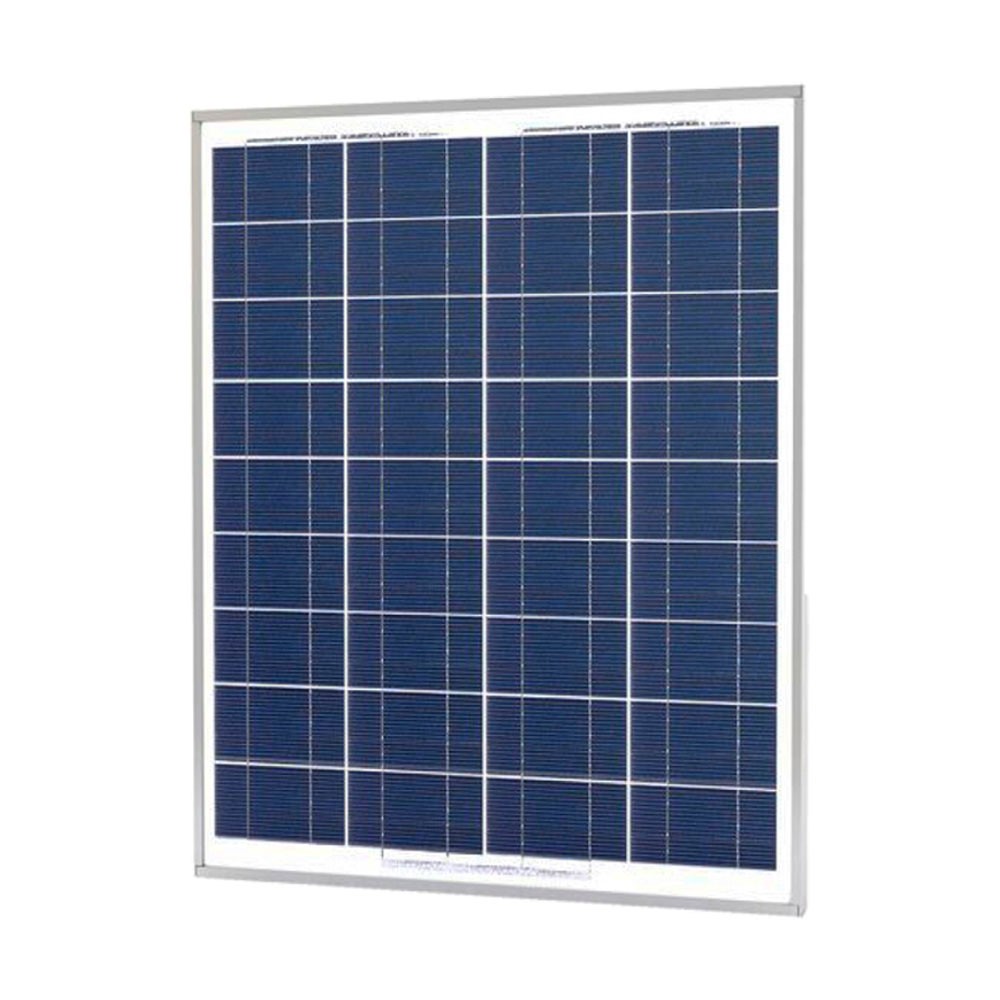

Tycon Power Systems TPS-12-80W Heavy Duty Solar Panel 12V 80W with Wire Terminal

TPS-12-80W

Tycon Power Systems
Tycon Power Systems TPS-12-80W Heavy Duty Solar Panel 12V 80W with Wire Terminal


Product Highlights
  • 12V 80W Solar Panel with 25 Year out Warranty
  • +5WP out Tolerance Ensures High out
  • Excellent Low Light Performance
  • High Efficiency with High Transparency Low Iron Tempered Glass
  • Applications: Battery Charging Applications, Surveillance Cameras, Wireless Base Stations, Outdoor Lighting, Remote Sensors, Backup Power Systems
  • Model#: TPS-12-80W

    Sku: IT2956.5456.161279



    MSRP: $165.95

    Out of stock

    Your Price: $165.95


    The TPS series solar panels are high efficiency designs with excellent low light performance. The multicrystalline silicon solar cells from Germany are laminated with a TPT (Tedlar/Polyester/Tedlar) and EVA (Ethylene Vinyl Acetate) bi-layer for high reliability and long life. The cell array is sealed in a heavy duty extruded aluminum frame with a high transparency low iron tempered glass cover to protect the solar cells from harsh environments; hail, wind, snow and ice.

    The solar panels are easy to mount because of the aluminum frame design. The wired connections are via a weatherproof junction box on the back of the panels.

    • Maximum Power (+/-5%) 80W
    • Voltage at Pmax (Vmp) 18.09V
    • Current at Pmax (Imp) 4.43A
    • Open Circuit Voltage (Voc) 22.24V
    • Short Circuit Current (Isc) 4.76A
    • Short Circuit I Temp Coeff .058% / °C
    • Open Circuit V Temp Coeff -0.31% / °C
    • Output Power Temp Coeff -0.41%/°C
    • Wind Survivability 201kph (125mph)
    • Hailstone Survivability 1” @ 50mph
    • Operating Temperature -40 to +85°C
    • Continuous Power Capability (6hrs average sunlight per day) 20W
    • Size 855 x 666 x 34mm (33.7 x 26.2 x 1.3”)
    • Weight 6.8kg (15.0lb)
    • Manufacturer Warranty 5 Year Product / 25 Year Output
