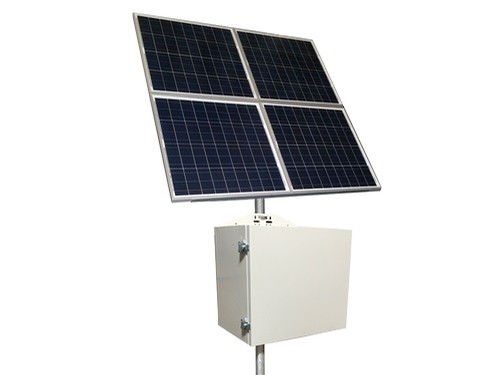

RemotePro™ - Remote Power System 320W Solar, 12V 200Ah Batt, 12V 20A Output

RPSTL12-200-320

Tycon Power Systems
RemotePro™ - Remote Power System 320W Solar, 12V 200Ah Batt, 12V 20A Output

Model#: RPSTL12-200-320

Sku: IT2950.5444.160598



MSRP: $2,199.95

In Stock

Your Price: $2,199.95




-High Performance Sealed Lead Acid Batteries

-PWM and Manageable MPPT Charge Controllers

-Thermostatically Controlled Ventilation



Description

The RPSTL RemotePro® series outdoor power systems are designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosures have generous space available inside for mounting customer equipment. A 19” 1U rackmount feature is integral to the enclosure as are multiple DIN Rail mounts.

All enclosures are hinged and gasket sealed with locking latches for security. The latches can be locked using a standard customer supplied padlock.
The enclosures can be mounted to a wall or pole with the included mounting bracket system. Poles up to 11” diameter can be accommodated.

The high quality solar panels have a 25year power output guarantee. The 320W panel can be mounted to a pole or wall with the included side-of-pole mounting system.

The 12V and 24V battery systems come with a 20A PWM solar controller. Enclosures have three cable gland ports for CAT5 cable, antenna cables/connectors or other cabling. The enclosures include a thermostatically controlled fan which turns on automatically when the temperature exceeds 45°C.

Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5years.
The systems come with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller.
