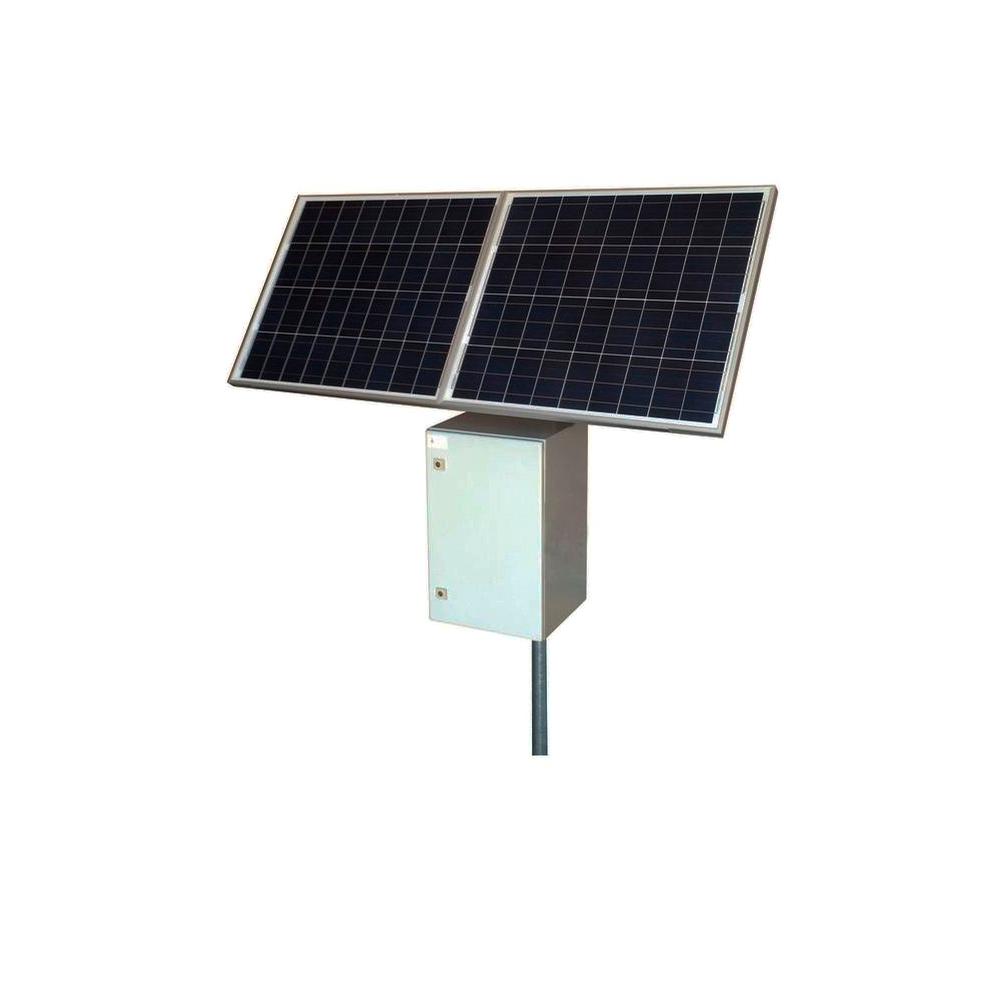

Tycon Power RPST12-100-160 remote solar power system 12V battery 25W with enclosure

RPST12-100-160

Tycon Power Systems
Tycon Power Systems RPST12-100-160 remote solar power system 12V battery 25W with enclosure

Model#: RPST12-100-160

Sku: IT2935.5419.159047



MSRP: $1,659.95

In Stock

Your Price: $1,659.95




The RPST RemotePro™ series outdoor power systems are designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosures have generous space available inside for mounting customer equipment. Multiple DIN Rail mount features are provided. All enclosures are hinged and gasket sealed with tamper resistant locks for security. The enclosures can be mounted to a wall or pole with the included mounting bracket system.

The high quality solar panels have a 25year power output guarantee. The panel come with a side of pole mounting bracket for mounting to a pole or wall. There are also systems which feature a 20A output unregulated solar controller for higher output power. Enclosures have four cable gland ports for CAT5/6 cable, antenna cables/connectors or other cabling. The enclosures include a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 45°C.

Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5years. The systems come with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller.

Applications

  • Wireless Base Stations
  • Surveillance Cameras
  • Wireless Bridge and Repeaters
  • Off Grid Power
  • Remote Lighting
  • Backup Power Systems
  • Rated Power Generation 25 or 40W
  • Reserve Time @ Rated Power 30hrs
  • Load Out (DC) 11V-15V 20A
  • 12V Battery Capacity (Amp Hrs) 100 or 200Ah
  • Battery Voltage (DC) 12V
  • Battery Type Maintenance Free Non-Spillable Valve Regulated Sealed Lead Acid AGM
  • Battery Life 5+years
  • Solar Controller Type PWM (Pulse Width Modulated)
  • Overcharge Protection 14.4V
  • Over-discharge protection 11.0V
  • Over-discharge recovery volts 12.0V
  • Controller Self Consumption <0.5W
  • Enclosure Type Pole/Wall Mount, Powder Coat Steel
  • Enclosure External Size 24 x 15 x 14" (610 x 381 x 356mm)
  • Enclosure Internal Size 23 x 14 x 12" (584 x 356 x 305mm)
  • Internal Mount Features Din Rail Mounts (3)
  • Solar Panel Dims 67” x 26” (1710 x 666mm)
  • Operating Temperature -30°C to +60°C (-22°F to 140°F)
  • System Weight (no batteries) 109lb (49kg)
  • Battery Weight 161 lb (73kg)
  • Wind Speed Rating 90MPH
