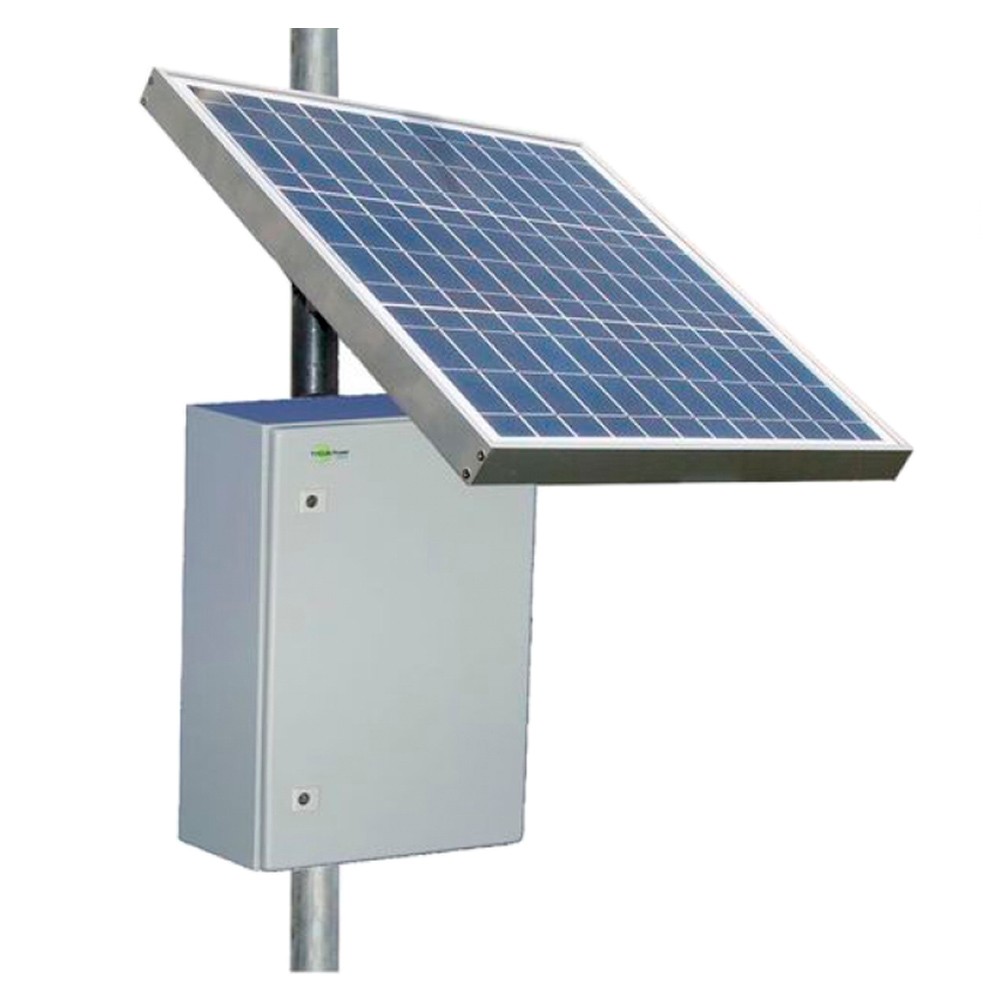

Tycon RPST1224-100-80 Remote Solar Power System 12V 100Ah Battery 24V Passive PoE out and 80W Solar



Product Highlights
  • The RPST1224-100-80 outdoor power system is designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosure has generous space available inside for mounting customer equipment
  • The enclosure is hinged and gasket sealed with tamper resistant lock for security. It can be mounted to a wall or pole with the included mounting bracket system
  • The high quality solar panel has a 25year power output guarantee. The panel come with a side of pole mounting bracket for mounting to a pole or wall
  • Some features of the RPST1224-100-80 Remote Solar Power System include 80W Solar, 12V 100Ah 1200Wh Batt, 20W Continuous Power, 24V Passive PoE out
  • Applications: Wireless Base Stations and Clients; Surveillance Cameras; Wireless Bridge and Repeaters; Remote Sensors; Remote Lighting; Backup Power Systems
  • Model#: RPST1224-100-80

    Sku: IT2933



    MSRP: $1,057.99


    Out of stock

    The RPST RemotePro series outdoor power systems are designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosures have generous space available inside for mounting customer equipment. Multiple DIN Rail mount features are provided.

    All enclosures are hinged and gasket sealed with tamper resistant locks for security. The enclosures can be mounted to a wall or pole with the included mounting bracket system.

    The high quality solar panels have a 25year power output guarantee. The panel come with a side of pole mounting bracket for mounting to a pole or wall.

    There are 12V and 24V battery configurations with 24V and 48V PoE outputs up to 30W. There are also systems which feature a 20A output unregulated solar controller for higher output power. Enclosures have four cable gland ports for CAT5/6 cable, antenna cables/connectors or other cabling. The enclosures include a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 45°C.

    Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5 years.

    The systems come with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller.

    • Rated Power Generation 20W
    • Reserve Time @ Rated Power 30hrs
    • POE Output Voltage (DC) 24V
    • Secondary Volts Out (DC) 11V-15V 1.5A
    • Battery Capacity (Amp Hrs) 100Ah
    • Battery Voltage (DC) 12V
    • Battery Type Maintenance Free Non-Spillable Valve Regulated Sealed Lead Acid AGM
    • Battery Life 5+ Years
    • Controller Type PWM (Pulse Width Modulated)
    • Overcharge Protection 14.4V
    • Over-discharge protection 11V
    • Over-discharge recovery volts 12V
    • Controller Self Consumption < 0.5W
    • Enclosure Type Pole/Wall Mount, Powder Coat Steel
    • Enclosure External Size 24 x 15 x 14" (610 x 381 x 356mm)
    • Enclosure Internal Size 23 x 14 x 12" (584 x 356 x 305mm)
    • Solar Panel Dims 34” x 26” (855x666mm)
    • Operating Temperature -30°C to +60°C (-22°F to 140°F)
    • System Weight (no batteries) 86lb (39kg)
    • Battery Weight 81 lb (37kg)
    • Wind Speed Rating 90MPH
    • Manufacturer Warranty 3 Years
