RPPL12-36-30

Tycon Power Systems

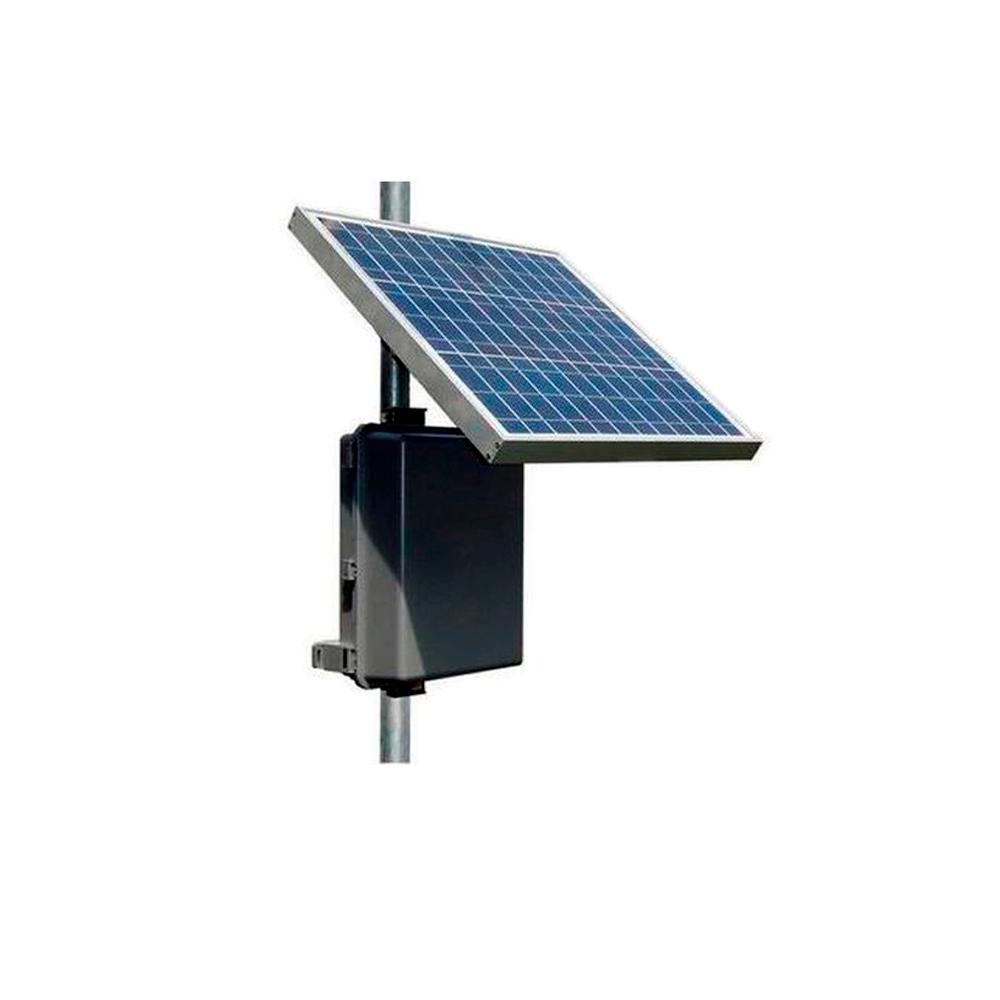

Tycon RPPL12-36-30 Outdoor Remote Solar Power System with 12V 36Ah Battery and 30W Solar Panel



Product Highlights
  • Complete Remote Power Solution for Off-Grid operation
  • Weatherproof, UV resistant, outdoor enclosures
  • Enclosures can be Wall or Pole Mounted
  • High Performance Valve Regulated Sealed Lead Acid Batteries
  • Advanced battery charge controller protects against overcharge and over discharge
  • Model#: RPPL12-36-30

    Sku: IT2932



    MSRP: $659.95


    Out of stock

    The RemotePro® PL series (RPPL) outdoor power systems are designed for applications that require a primary off-grid power source to run various electronics. The sealed and weatherproof Polycarbonate enclosures hold up to four 12V 8.5AH batteries. The enclosures are hinged and gasket sealed. They can accept a padlock of tamper seal.

    The enclosures can be mounted to a wall or pole with the included mounting bracket system. The high quality solar panels have a 25year power output guarantee. The 30W solar panels can be mounted to a 51mm to 101mm (2" to 4") diameter pole or alternately to a wall with the included bracket kit.

    Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid batteries. Most of the RPPL systems include a controller with built in POE inserter and DCDC converter to supply 24V or 48V POE from the 12V or 24V battery system. Enclosures have multiple ports for CAT5/6 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.

    Batteries are an Advance Glass Matt (AGM) type which have good all temperature performance.

    Applications

    • Wireless Base Stations and Clients
    • Surveillance Cameras
    • Wireless Bridge and Repeaters
    • Remote Sensors
    • Remote Lighting
    • Backup Power Systems
    • Rated Power Generation 8W
    • Reserve Time @ Rated Power 27hrs
    • POE Output Voltage (DC) No POE Out
    • Secondary Volts Out (DC) 12V 20A
    • Battery Capacity (Amp Hrs) 34Ah
    • Battery Voltage (DC) 12V
    • Battery Type Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM)
    • Battery Life 5 Years
    • Controller Type PWM
    • Overcharge Protection 14.4V
    • Over-discharge protection 11.0V
    • Over-discharge recovery volts 12.5V
    • Controller Self Consumption < 0.5W
    • Enclosure Type Polycarbonate
    • Enclosure External Size 17.5 x 12.5 x 6” (445x318x152mm)
    • Enclosure Internal Size 14 x 10 x 5” (356x254x127mm)
    • Solar Panel Dims 26” X 16” (654 x 401mm)
    • Operating Temperature -30°C to +60°C (-22°F to 140°F)
    • System Weight (no batteries) 22lb (10kg)
    • Battery Weight 22lb (10kg)
    • Wind Speed Rating 110MPH (49m/s)
