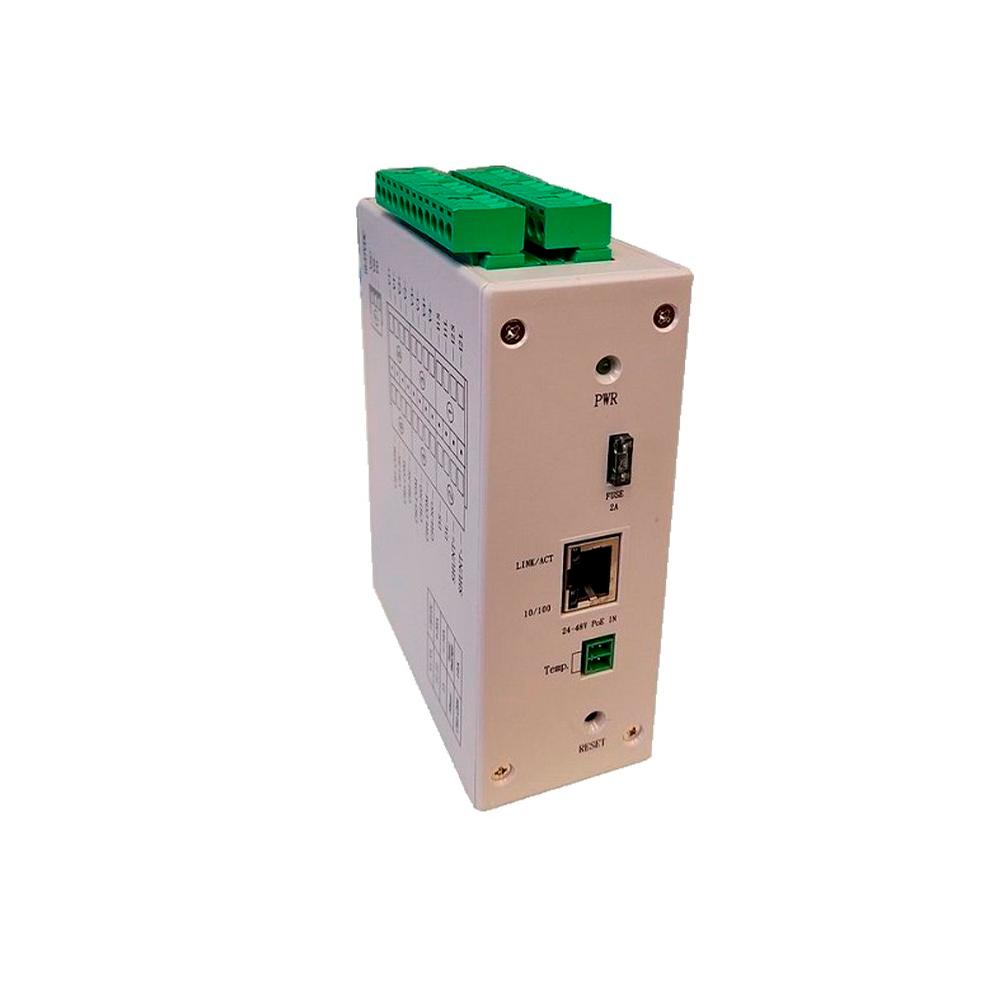

Tycon Power Systems TPDIN-MONITOR-WEB2 TPDIN Remote Monitor and Control System

TPDIN-MONITOR-WEB2

Tycon Power Systems
Tycon Power Systems TPDIN-MONITOR-WEB2 TPDIN Remote Monitor and Control System, versatile tool which enables the equipment designer and installer to remotely monitor their equipment and site.


Product Highlights
  • TPDIN2 PowerSens Remote Data Logging DIN Rail Mount Power Monitor and Control, Automatic or Manual Control, Industrial Strength
  • Monitors 4 Voltages up to 80VDC, 4 Currents and 2 Temperatures ; Provides 4x 10A Relays (2x NO and 2x NC Type) for Equipment Control
  • 2x 20A Current Input, 1x +/-10A Current Input and 1x Shunt Current Inputs
  • Powered by PoE or 10-57V Wire Terminal, 1.5W Power Consumption (all relays off)
  • Comprehensive Relay Control and Email Alerts; Voltage, Current, Temperature, Ping, Time
  • Model#: TPDIN-MONITOR-WEB2

    Sku: IT2928.4299.125874



    MSRP: $179.99

    Out of stock

    Your Price: $179.99


    The TPDIN-Monitor-WEB2 Based Remote Monitor and Control System is a versatile tool which enables the equipment designer and installer to remotely monitor their equipment and site. The unit can be accessed via the network (web and SNMP) to remotely monitor up to 4 voltages, 4 currents, 2 temperatures and control power to various equipment using 4 on-board relays. The system has built-in surge protection to prevent damage from electrical surges.


    On board data-logging and graphing capabilities allow the user to see history of the various parameters being measured. The graphical interface allows the user to control relays via a single mouse click and monitor all the measurement parameters real-time via any web browser. The web interface allows access and control via desktops, laptops, tablets and smartphones. The Tycon APP for IOS and Android facilitates remote access.

    The system allows control of the relays based on Voltage, Current, Temperature, Time or Ping Watchdog. This provides almost unlimited flexibility.

    Features:

    • Remotely Measure 4 Voltages, 4 Currents, 2 Temperatures
    • Remotely Control Equipment with 4 Relays: 2 NC and 2 NO
    • Automatic Control of Relays by Volts, Amps, Temp, Ping, Time
    • Access via Web or SNMP. Automatically Send Email Alerts
    • On-Board Datalogger and History Graphs
    • Accepts power via PoE (802.3af or Passive) or wire terminal
    • DIN Rail Mounting
    • Operating Temperature: -40C to +75C (-40F to 167F)
    • Humidity: (RH) 0% - 90%
    • Dimensions: (LxWxH) 125 x 102 x 46mm (4.9” x 4” x 1.8”)
    • Weight: 410g (14.5 oz)
