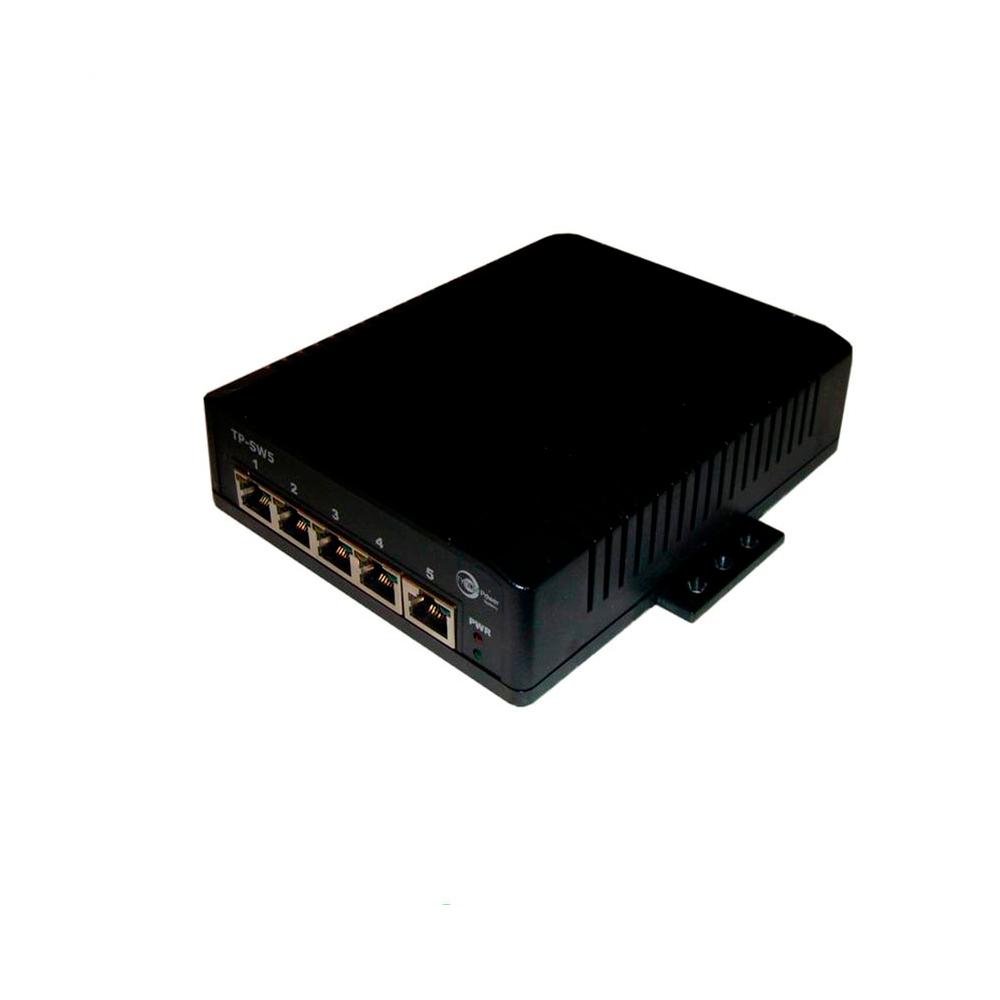

Tycon Power Systems TP-SW5G-MULTI 5 Port Multi-volt gigabit Passive PoE Switch 12-56V

Product Highlights

The SW5 Series Power over Ethernet (PoE) switches offered by Tycon Power are fully automatic high speed 5 port Ethernet switches with up to 2A of PoE power per port

Unmanaged Gigabit Passive PoE Layer 2 Network Switch, 12-58VDC Wire Terminal Input, Multi Port Voltage

12V to 58VDC Wire Terminal Input, Each Port Can Have a Different PoE Voltage

Remotely Power Equipment thru CAT5 Cable up to 100m

Applications: Wireless Access Points and Client Devices; IP Phone and Security Camera Systems

Model#: TP-SW5G-MULTI

Sku: IT2926

MSRP: $147.99

The SW5 Series Power over Ethernet (PoE) switches offered by Tycon Power are fully automatic high speed 5 port Ethernet switches with up to 2A of PoE power per port.

Universal Multiple Voltage (MultiVolt™) 10/100/1000MB PoE Switch. Switch accepts up to 4 different voltages (12-57VDC) so user can power both 48V PoE and 24V PoE devices from the same switch. The port can individually be set to Data Only by disconnecting the voltage input to that specific port. 1A per port.

Applications

Wireless Access Points and Client Devices
IP Phone and Security Camera Systems

Ports 1 data/PoE input and 4 data/PoE, automatic crossover and polarity
High Power 10/100 and 1000Mb (“G”) PoE Switch
Protocol CSMA/CD
Self Consumption < 3 Watts
Maximum POE Power 1A per port
POE Auto Detection Passive PoE
DC Power Input 12V to 57VDC, Reverse Polarity Protected. NC Accepts PoE power input on Port 5
Operating Temp -20 to +75°C (-4 to 167°F)
Dimensions (LxWxH) 159 x 118 x 40mm (6.3 x 4.6 x 1.6”)
Weight 318g (11oz)
Remotely Power Equipment thru CAT5 Cable up to 100m
Up to 2A per Port
Built-in Surge Protection
Automatic MDI/MDI-X Crossover
Automatic Speed and Duplex Sensing
Compact Size
High Temperature Operation
CE and FCC Certification
