MODEL: TP-DCDC-4824G-HP

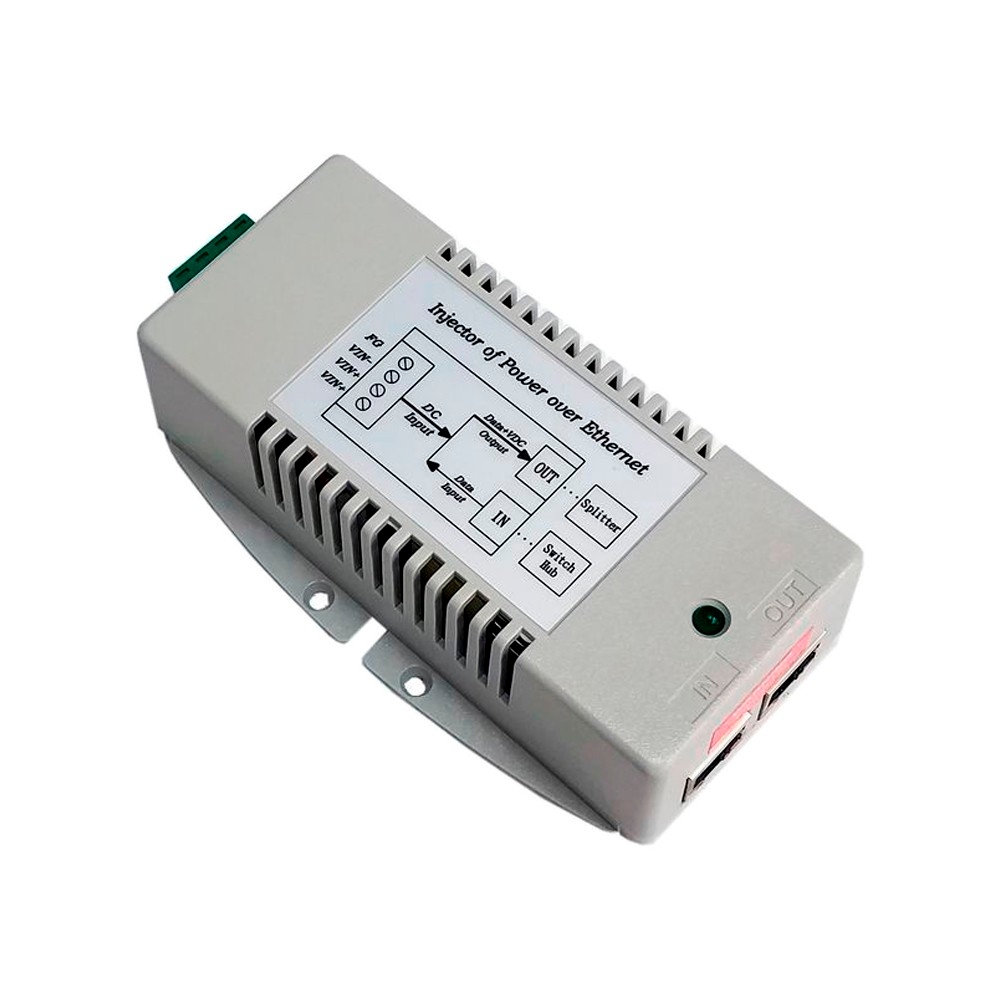

The TP-DCDC-4824G-HP offered by Tycon Power is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5 Ethernet cable. The output voltage is regulated and protected. They have a common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications.
They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 50W.
Features – DC to DC Converter
Applications
Specifications TP-DCDC-4824G-HP
DC Input Voltage | +/- 36 to 72VDC |
DC Input Connector | Removeable Screw Type Compression Wire Terminal (12 AWG Max) |
DC Output Voltage | 24V (Passive) |
Data in & Data/POE Output Connector | RJ45 (Shielded) |
Output Current (max) | 1.5A |
Output Power (max) | 35W |
Self Consumption Power | 1W |
Efficiency (min) | 75% |
Line Regulation | 1% |
Load Regulation | 5% |
Ripple | 1% |
Noise | 1% |
EMC Standards | FCC Class B EN55022 Class B |
Safety Standards | IEC 62368-1, EN 62368-1, AS/NZS 62368.1 |
Operating Temp | -40 to +70°C (-40 to +158°F) |
Operating Humidity | 5% - 90% Non Condensing |
MTBF (Mean Time Between Failure) | 106,924 Hours |
Storage Temp | -40 to +80°C (-40 to +176°F) |
Dimensions (LxWxH) | 125 x 75 x 38mm (4.9 x 3 x 1.5”) |
Weight | 300g (10.6oz) |
