Tycon Power Systems

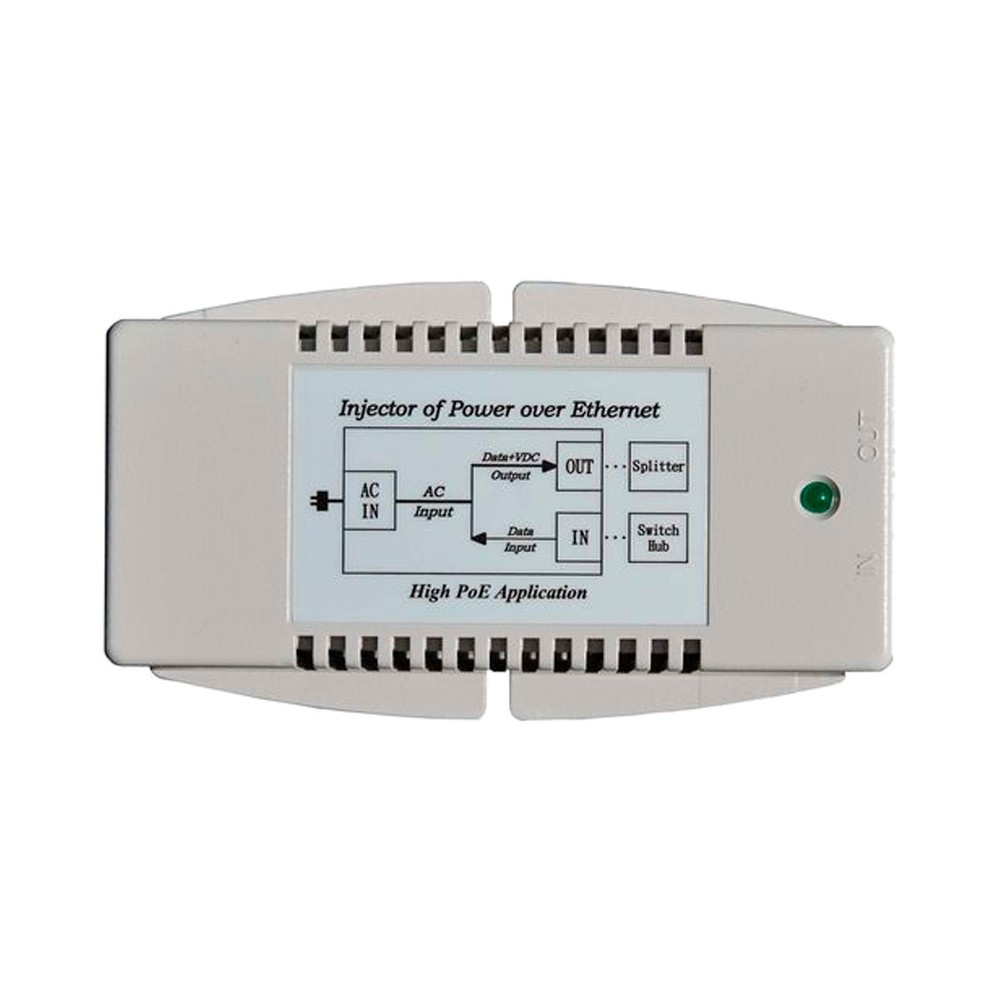

Tycon Power Systems TP-POE-HP-56G-FBN 56V 4 Pair High Power Gigabit Passive POE Power Inserter

Model#: TP-POE-HP-56G-FBN

Sku: IT2924

MSRP: $79.99

Out of stock

  • The TP-POE-HP-56G-FBN Power Over Ethernet Power Source offered by Tycon Power Systems is a quality midspan power source for years of reliable operation even in the toughest conditions.
  • They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack.
  • They work by supplying power to the remote device on all 8 Ethernet pins. The Ethernet spec supports distances up to 100m (328 feet).
  • The units are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated DC Voltage at the output.
  • They have various protections for surge, short circuit, overload and overvoltage.
  • The TP-POE-HP-56G-FBN has an output power of 60watts. The output voltage is 56VDC with load regulation within 5%. The units can be DIN rail mounted.



  • Remotely Power Equipment thru CAT5 Cable up to 100m

  • Built in Ethernet and AC Surge Protection

  • Autoranging Switching Power Supply

  • Short Circuit, Over Current and Over Voltage Protection

  • High Power to 56W PoE Output

  • 10/100/1000Mb Gigabit Compatible

  • High Temperature Operation to 60C

  • DIN Rail Mountable


  • Wireless Access Points and Client Devices

  • IP Phone and Security Camera Systems
